MODEL 2290
A right angle grease tting may need to be used to grease some of the lubrication
points. This type of grease tting can be obtained from most local automotive
parts stores.
MAINTENANCE

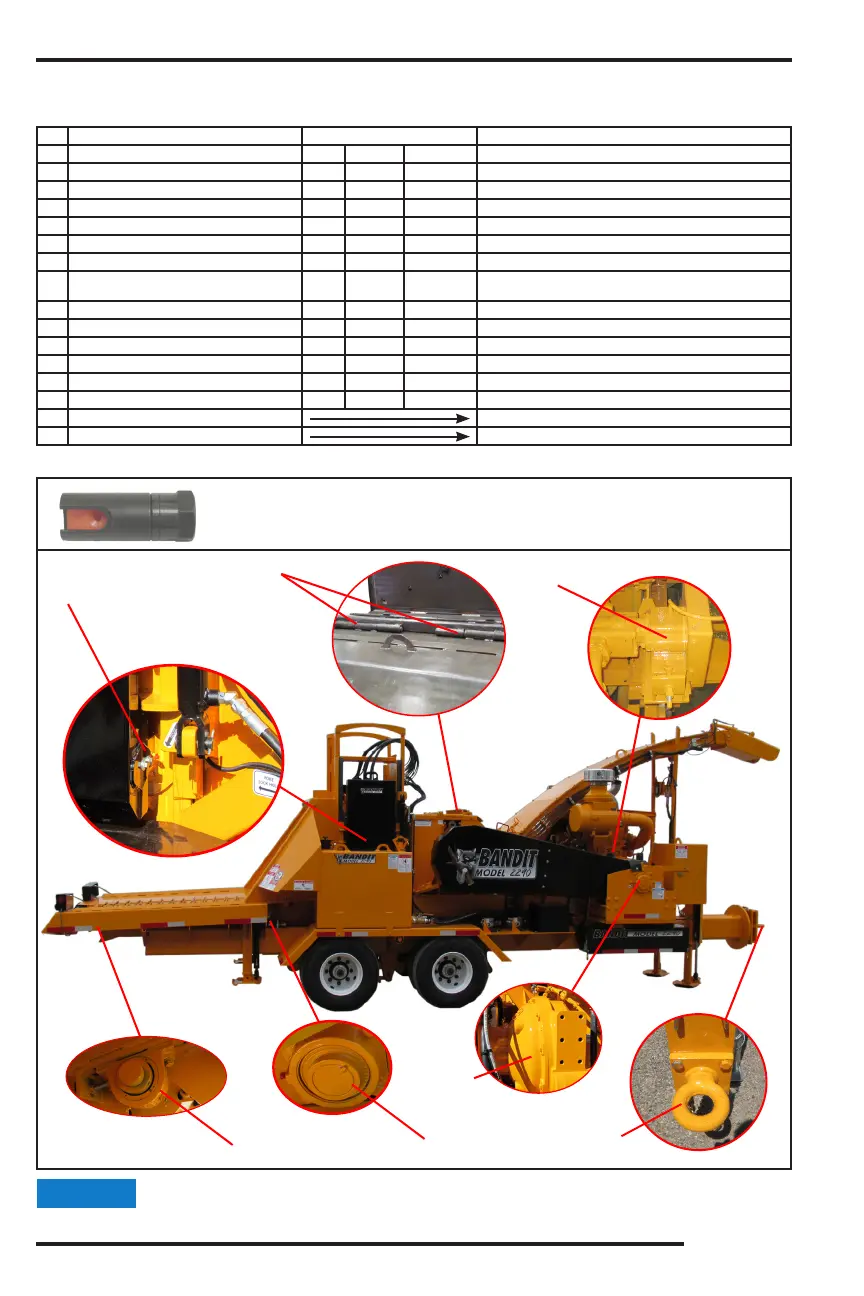

LUBRICATION CHART
CHECK
# DESCRIPTION DAY WEEK MONTH PROCEDURE
1 Drum Bearings X 16 pumps - wipe o󰀨 excess
2 Feedwheel Bearings X 1 shot of grease - wipe o󰀨 excess
3 Infeed Conveyor Bearings X 1 shot of grease - wipe o󰀨 excess
4 Feedwheel Slide Box X Clean and oil with 10W/30
5 Hood Hinge X 1 - 2 shots of grease - wipe o󰀨 excess
6 Discharge Flipper X Daily - wipe o󰀨 excess
7
Steel Friction Areas: pivoting,
hinged, sliding, rolling
X
Lubricate (i.e. yoke lock pins, cabinet
doors, radiator screen hinges, etc.)
8 Pintle Eye Ring / Towing Hitch X Grease to reduce wear
9 Yoke Lock Pins X 1 shot of grease
10 Chain Driven Components X Dry lube (chain driven components)
11 Pump Bearing Block Keep Full Change every 6 mo. 80W/90 type gear lube
12 Bottom Feedwheel Gearbox Keep Full Change every 6 mo. 80W/90 type gear lube
13 Infeed Conveyor Gearbox Keep Full Change every 6 mo. 80W/90 type gear lube
14 Wheel Bearings Lubricate per MFG’s instructions
15 Clutch Lubricate per MFG’s instructions
Use as a reference only, locations may vary depending on options or component manufacturer.
Lubrication point instructions are described on the machine, in the Maintenance Section of this
manual or component manufacturer’s manual.
