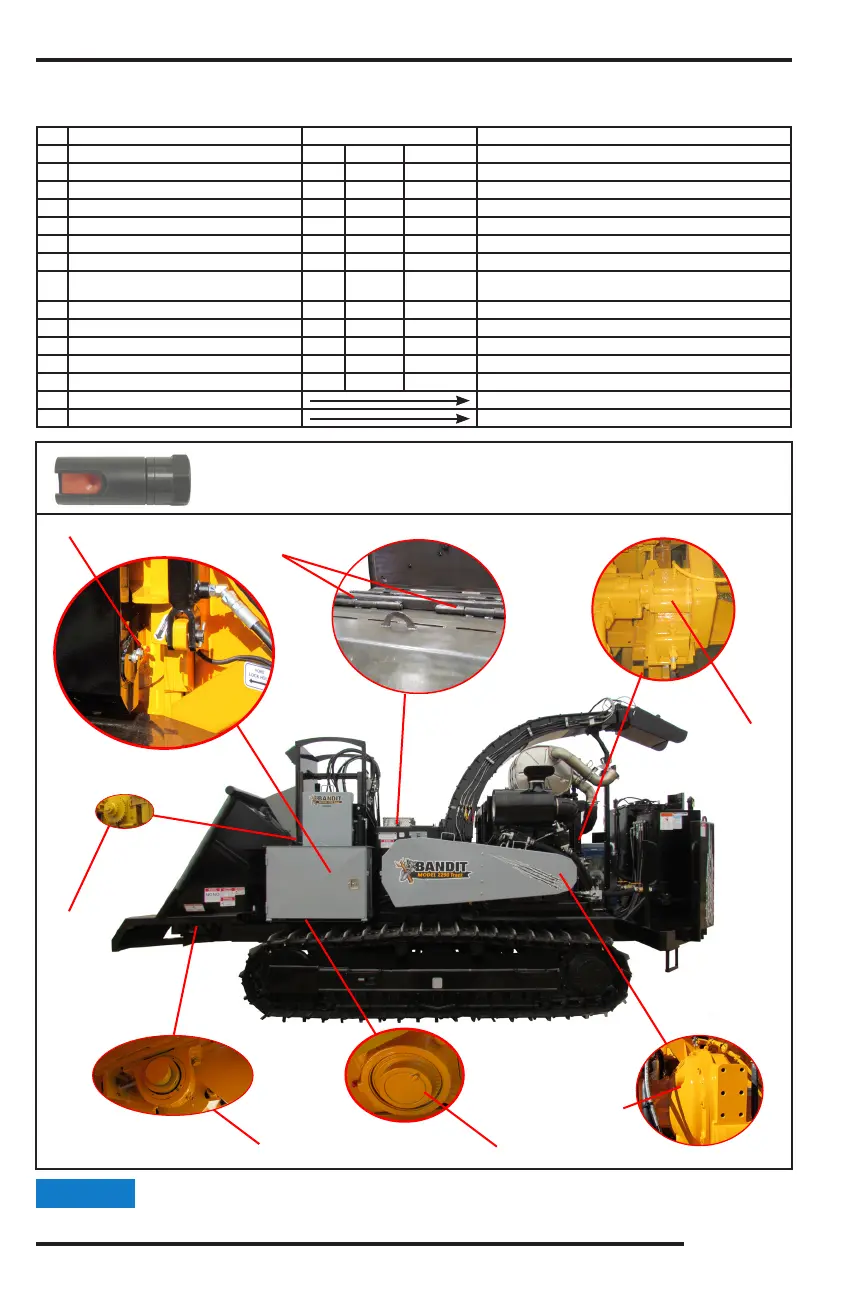

LUBRICATION CHART - 2290 TRACK
Use as a reference only, locations may vary depending on options or component manufacturer.
Lubrication point instructions are described on the machine, in the Maintenance Section of this
manual or component manufacturer’s manual.
NOTICE
5
10
A right angle grease tting may need to be used to grease some of the lubrication
points. This type of grease tting can be obtained from most local automotive
parts stores.
15
3
2
MAINTENANCE
CHECK
# DESCRIPTION DAY WEEK MONTH PROCEDURE
1 Drum Bearings X 16 pumps - wipe o󰀨 excess
2 Feedwheel Bearings X 2 - 3 shots of grease - wipe o󰀨 excess
3 Infeed Conveyor Bearings X 2 - 3 shots of grease - wipe o󰀨 excess
4 Feedwheel Slide Box X Clean and oil with 10W/30
5 Hood Hinge X 2 - 3 shots of grease - wipe o󰀨 excess
6 Discharge Flipper X 2 - 3 shots of grease - wipe o󰀨 excess
7
Steel Friction Areas: pivoting,
hinged, sliding, rolling
X
Lubricate (i.e. yoke lock pins, cabinet
doors, radiator screen hinges, etc.)
8 Yoke Lock Pins X 1 shot of grease
9 Chain Driven Components X Dry lube (chain driven components)
10 Pump Bearing Block Keep Full Change every 6 mo. 80W/90 type gear lube
11 Bottom Feedwheel Gearbox Keep Full Change every 6 mo. 80W/90 type gear lube
12 Infeed Conveyor Gearbox Keep Full Change every 6 mo. 80W/90 type gear lube
13 Tracks Lubricate per MFG’s instructions
14 Clutch Lubricate per MFG’s instructions
