Bandit 2290 - Maintenance; Anvil Adjustment Procedures

Bandit
62
Copyright 8/19
MODEL 2290

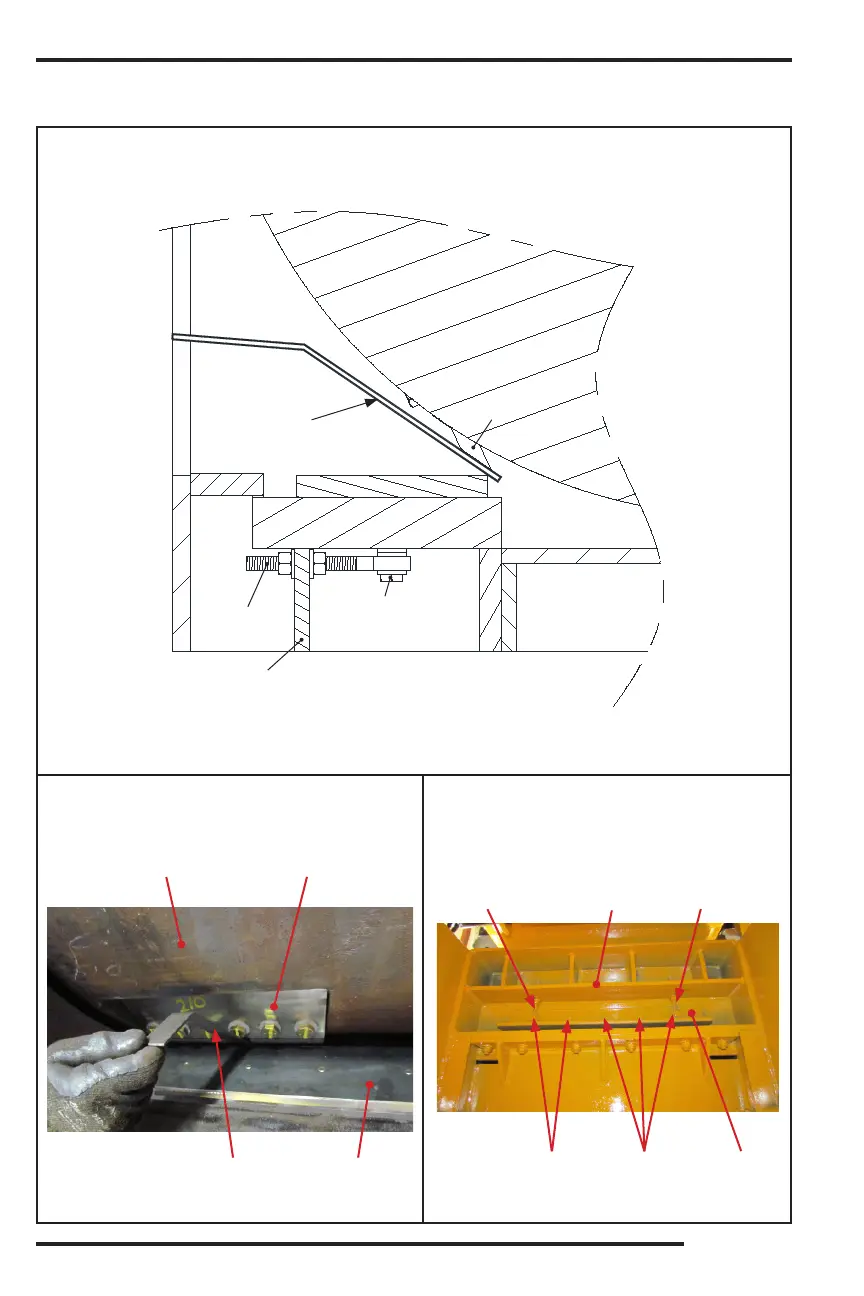

ANVIL ADJUSTMENT
View looking up underneath
drum head and base area
Anvil Bolts
Torque To
Specs
Anvil
Knife
Drum Head
Anvil Adjuster
Bolts
Anvil Puller
Block
Anvil To
Knife Gauge
View looking through the
feedwheels at the throat area
Anvil
Drum Head Knife
Anvil To
Knife Gauge
Anvil Bolts
Torque To
Specs
Anvil Adjuster
Bolt
Anvil Puller
Block
Anvil Bolts
Torque To
Specs
Anvil Clamp
Plate
Anvil Adjuster
Bolt
MAINTENANCE
