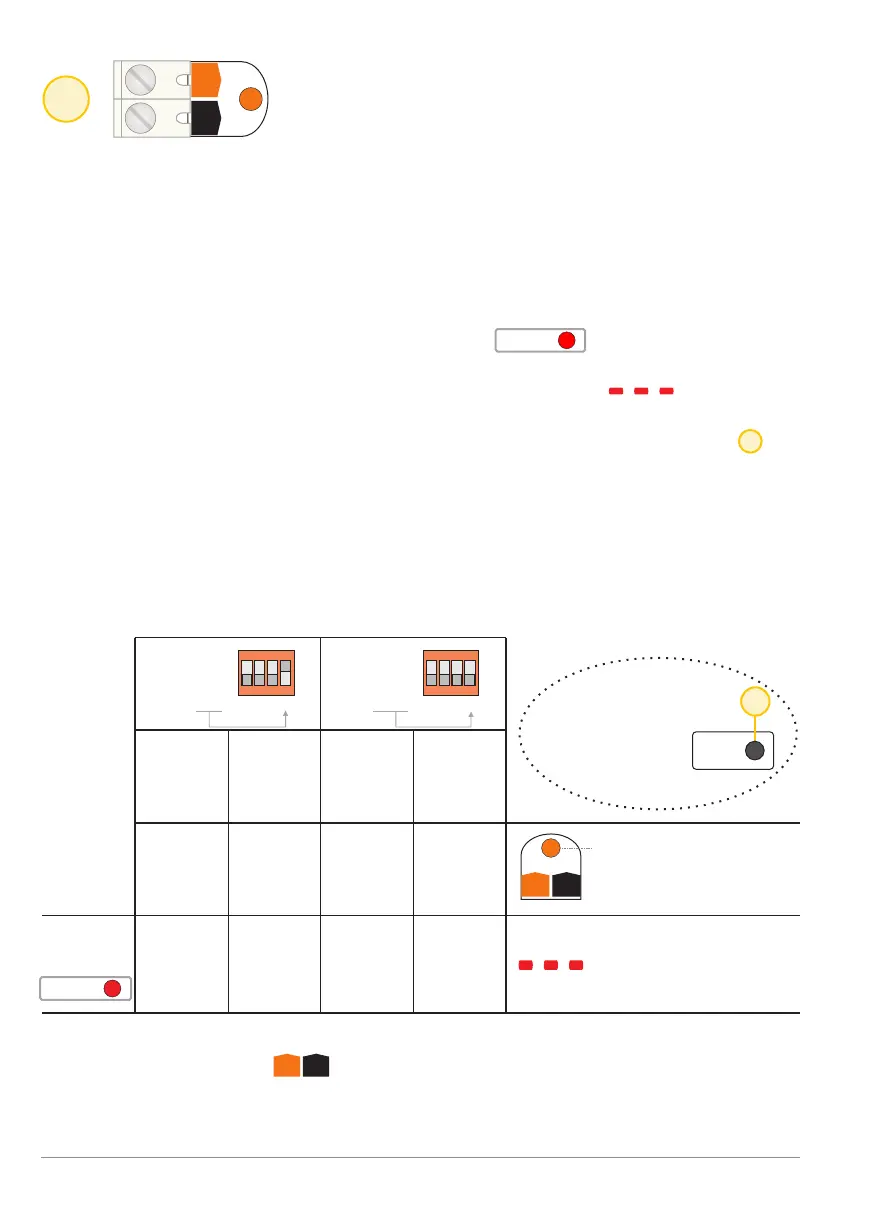

Bandit CF31 - Fire and Panic Inputs

F+ F-
24
Fire
Dip F
ON
Dip F
OFF
5
Input: Fire input [Fire]
Fire
Fire
F+
F+
F-
F-
G G
A A
C C
F F
Inputs Inputs
ON ON
2 21 13 34 4
This input serves as fog ejection blocking. The intention of this
function is to block the fog ejection as long as the fire input [Fire] is active.
If the system is already in Alarm or Panic mode, the presence of an active
fire signal has no influence over the Alarm / Panic mode or the related
execution of a fog ejection.
Properties of the "Fire mode":
- The red LED [Fire] in the Status box will light  while the fire
mode is active.
- The front LED of the BANDIT fog generator will flash red as
long as the device is in "Fire mode".
- A fog ejection cycle cannot start, including through the [Force ejection]
button.
Control of the fire input [Fire]
Depending on the position of dip-switch F, Fire mode will be active either
when 12 VDC is present on the input, or if there is no voltage on the input.
Logical truth chart for the fire input [Fire]:
If you do not want to use the Fire input, put Dip F ON and leave both
Fire input terminals disconnected.
The BANDIT will then never switch into “Fire mode” and there will be no
blocking of the fog ejection.
yes
no
Fire
Fire-
status
no
yes
Fire LED lights as long
as there is 12 V present
on the Fire input
The fog generator front
LED flashes red while
Fire mode is active.
12 V
on
Fire
No
voltage
on
Fire
No
voltage
on
Fire
12 V
on
AFire
on
off off
on
F
15
Read
dips
Changes to dip-
switch settings
are only valid
once confirmed
p. 8 - Fire input
BANDIT Controller CF31 v2 / Manual v.102
