This two-output terminal connector notifies the controller that the attached
BANDIT fog generator has 230 V AC (mains power) connected.
Properties of the voltage output [Power].
Mains power is present: Contact is closed and the Power LED is off.4
4No mains voltage present: contact is open and the Power LED
lights red.
The front LED of the BANDIT fog generator flashes red
to indicate that there is a problem.
This output [Power] may be used in conjunction with the [OK] output, or on its
own (see example diagram 1 on page 32) to connect this
notification to a zone input of the controlling alarm system or an auto dialler
(to report the problem).
In this way an alert can be sent to all control centres (PAC's) to notify
them that the connected fog generator has an AC voltage problem.
Power
nocom
Power
nocom
Power output - p. 19
12

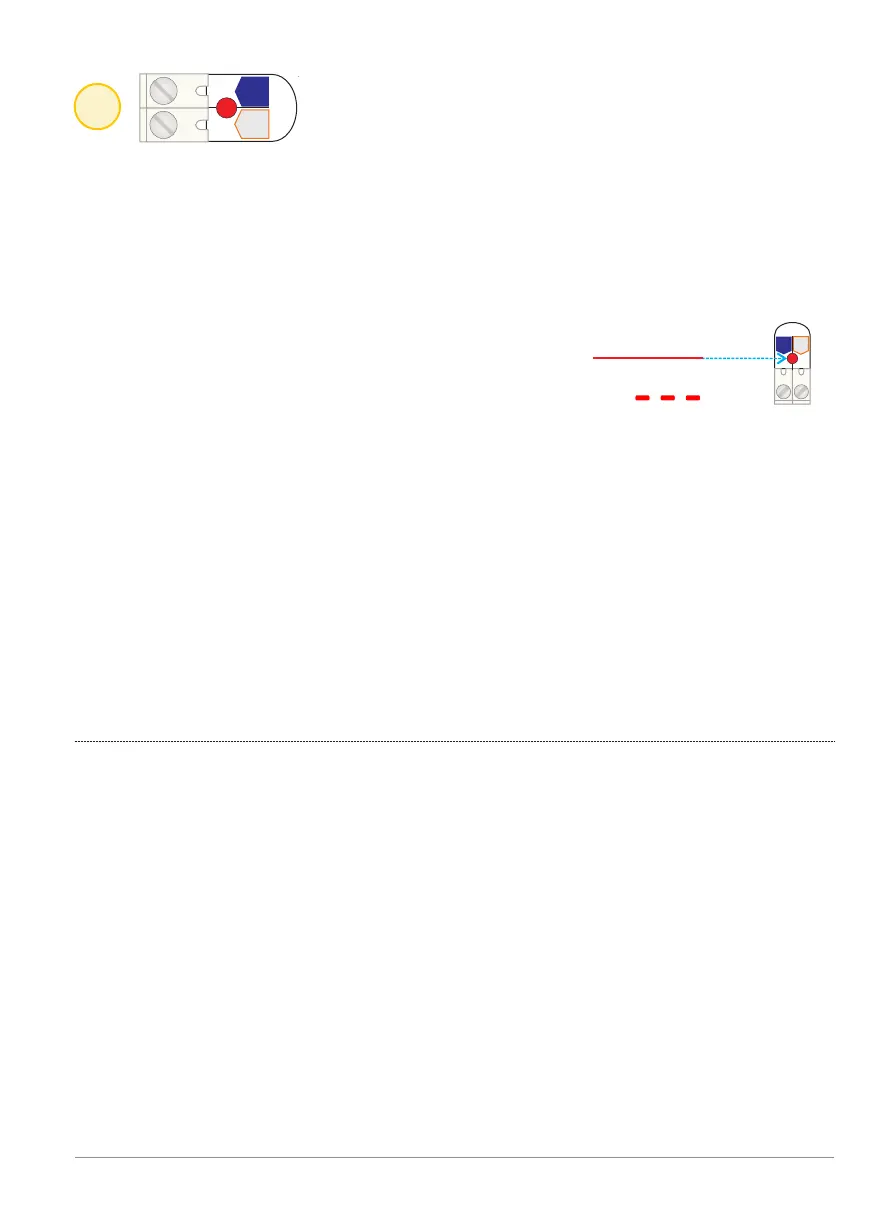

Output: Power [Power]
As long as the BANDIT fog generator has
AC supply voltage the contact is closed.
BANDIT Controller CF31 v2 / Manual v.102
