10
REAR PANEL

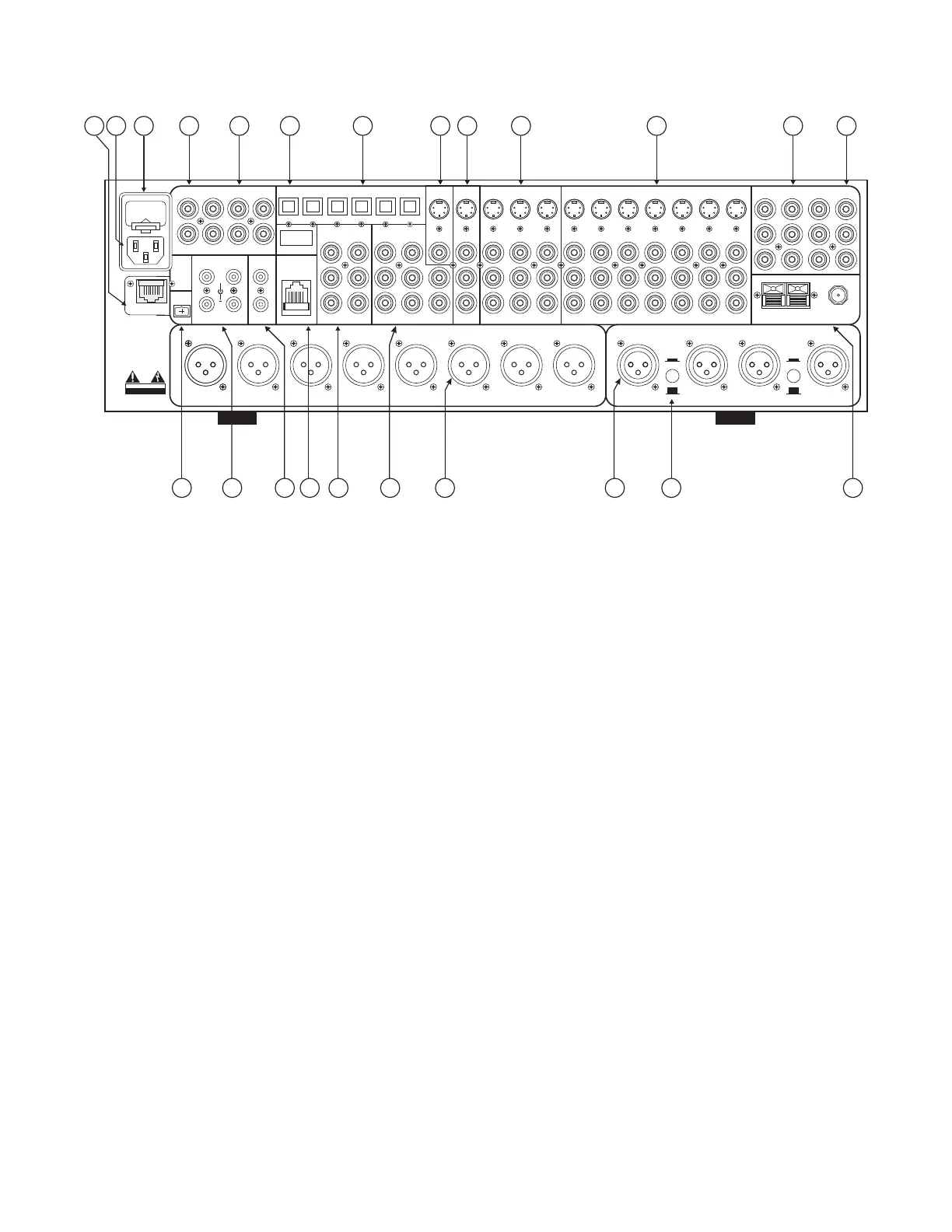

The processor’s back panel is organized into groups of inputs and outputs for audio and video as shown below.
See back of this manual for an enlarged view.
BALANCED SURROUND OUTPUTS
CENTER
RIGHT
SURROUND
RIGHT
SURR BACK
RIGHT FRONT LEFT FRONT
LEFT
SURROUND
LEFT
SURR BACK
SUBWOOFER
BALANCED INPUTS
LEFT
RIGHT
CD
LEFT
RIGHT
DVD
OPTICAL DIGITAL
12VDC
50mA
V1
DVDTAPE
ZB/V2
V2
CDTAPEZB TVSAT
V1
ZA
Audio/Video Systems Made in the U.S.A.
LINE INPUTS
V1
V2
DVDCDSATOUT
V1ZA OUT V2TV
COAX DIGITAL
DVDZB OUT CDSAT
CONTROL OUT IR IN
ZA
ZB
IEEE
IN 1
COMPONENT VIDEO
IN 2
OUT
ANTENNA
AM FM
LINE OUTPUTSS BACKFRONTSURRFRONTSURR
1
2
3
4
DVD-AUDIO IN
SUB CENTER
ZA AUDIO OUT
SUB CENTER
IN 3
RS-232
www.bkcomp.com
BK
&
SBIMPLY ETTER!
ON
OFF
ON
OFF
+
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
FUSE
CAUTION: FOR CONTINUED
PROTECTION AGAINST RISK
OF FIRE REPLACE ONLY WITH
SAME TYPE AND VALUE FUSE
IEEE
1394
SERIAL #
EXPANSION
12131415161718192023 11
8
9132647
5
10
22 21
1. IEEE 1394 input (optional) - For future interface applications.
2. Control outs - Outputs that allow you to remotely control external devices. (See “Making The Connection“).
3. IR in - Accepts input from external IR receptors. Connect an IR repeater (“home run”) to IR IN for controlling
the processor. This method of control is useful when the front IR receptor is blocked (for example, by a cabinet
door) or to control the processor from another room. This input is typically used in place of an emitter attached to
the front panel.
4. RS-232 input - Computer interface applications.
5. DVD Audio inputs - Connections for a DVD audio or other 5.1 source device.
Red RCA jacks - right front and surround audio inputs
White RCA jacks - left front and surround audio inputs
Gray RCA jacks - center and sub audio inputs
6. Unbalanced Surround outputs - Variable level outputs for driving power amplifiers or powered speakers.
7. Balanced Surround outputs - Variable level outputs for driving power amplifiers or powered speakers.
Pin 1 - ground
Pin 2 - input +
Pin 3 - input –
8. Balanced Line inputs - Connections from your balanced audio/video sources.
Pin 1 - ground
Pin 2 - input +
Pin 3 - input -
9. Unbalanced / Balanced input selector - set switch to off (out) to select the unbalanced line input or on (in) for
the balanced input. Note: Do not connect both balanced and unbalanced inputs at the same time.
10. Antenna inputs - Connections for the AM and FM antennas.
11. Component Video outputs - Switched output connections for your component video monitor.
Red RCA jack - typically connect to the red input on a component video monitor
Green RCA jack - typically connect to the green input on a component video monitor
Blue RCA jack - typically connect to the blue input on a component video monitor
To Next Page
