Wireless charging system 600W specication
For 12V・24V・48V battery
Type code（12V） Type code（24V） Type code（48V） Discription
①
Power supply
unit
RCS600-AC（Common specication）
· Convert AC power to high frequency.
・Receives the input signal and supplies high
frequency to the active head.
· Output various signals received by the active
head to the external control device.
②
Active
Head
RCS600-AH（Standard type）
・ By electromagnetic coupling method, power is
transmitted to the passive head without contact.
・Receives various signals from the passive head,
and transmitted to the power supply unit.
RCS600-AH-L（Long distance type）
③
Passive
Head
RCS600-CH（Standard type）
・The receiving power from the active head, and
supplies power to the charging unit.
・Various signals output from the charging unit
are transmitted to the active head wirelessly.
RCS600-CH-L（Long distance type）
④
Charging
unit
RCS600-CA12
*1
RCS600B-CA12
*2
RCS600-CA24
*1
RCS600B-CA24
*2
RCS600-CA48
*1
RCS600B-CA48
*2
・Charges the battery.
・Monitors the battery voltage and outputs the
results to the receiving head and external control
equipment connected to the unit.
RCS600
CA
12
RCS600
CA
24
RCS600
CA
48
12V type 24V type 48V type
Charging
method
(See page 22 for the
details))
CC・CV charge control
Charge voltage：Max.15V
Charge current：Max.34A
CC ・ CV or CP・CV charge control
Charge voltage：Max.35V
Charge current：Max.25A
CC ・ CV or CP・CV charge control
Charge voltage：Max.60V
Charge current：Max.12A
Compatible
battery
12VDC lead battery,
12VDC lithium ion battery
24VDClead battery,
24VDC lithium ion battery
48VDClead battery,
48VDC lithium ion battery
Default setting
(See page21)
Charge voltage：14.4V
Charge current：34A
Recharge voltage：12V
Charge voltage：28.8V
Charge current：20A
Recharge voltage：24V
Charge voltage：57.6V
Charge current：10A
Recharge voltage：48V
RCS600
CA
24
RCS600
CA
48
RCS600
CA
12
1.Product summary
AC90-220VAC90-220V
④ Charging unit④ Charging unit
① Power supply unit① Power supply unit
② Active head② Active head
③ Passive head③ Passive head
This product is a revolutionary wireless charging system that generates high-
frequency waves from an AC power source and transmits power to the charging
control circuit in a non-contact manner. It is a revolutionary wireless recharging
system that also has a signal communication function.

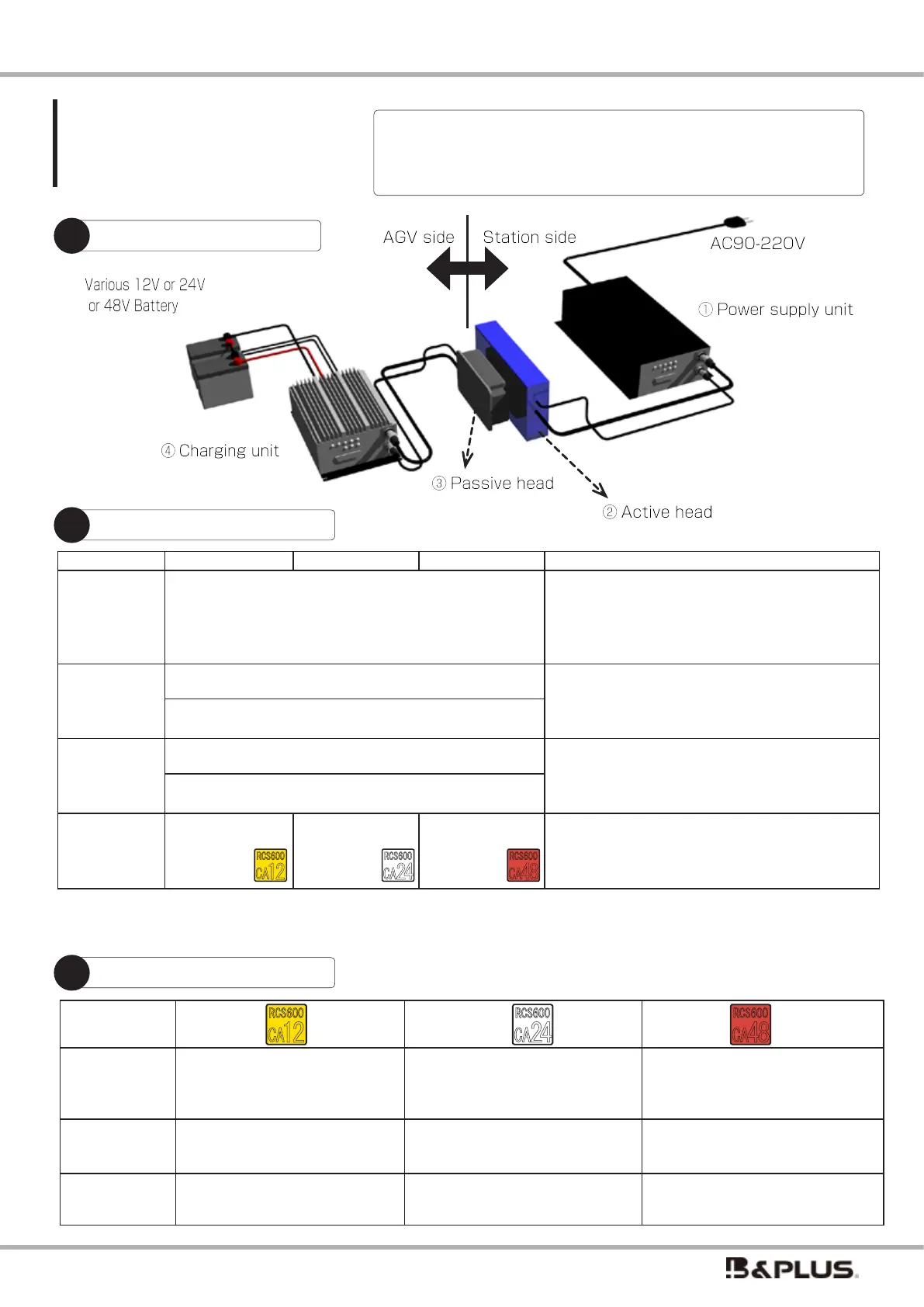

System conguration
Basic product conguration
Product informaiton
Various 12V or 24V
or 48V Battery
Various 12V or 24V
or 48V Battery
AGV sideAGV side
Station sideStation side
*1 normal open type *2 normal close type
The type code ending in “-NOP” is a model that does not come with a thermistor. The type code of the charging unit (normal
open, normal close) is generally described after this in this manual. “RCS600 (B) -CA__”
