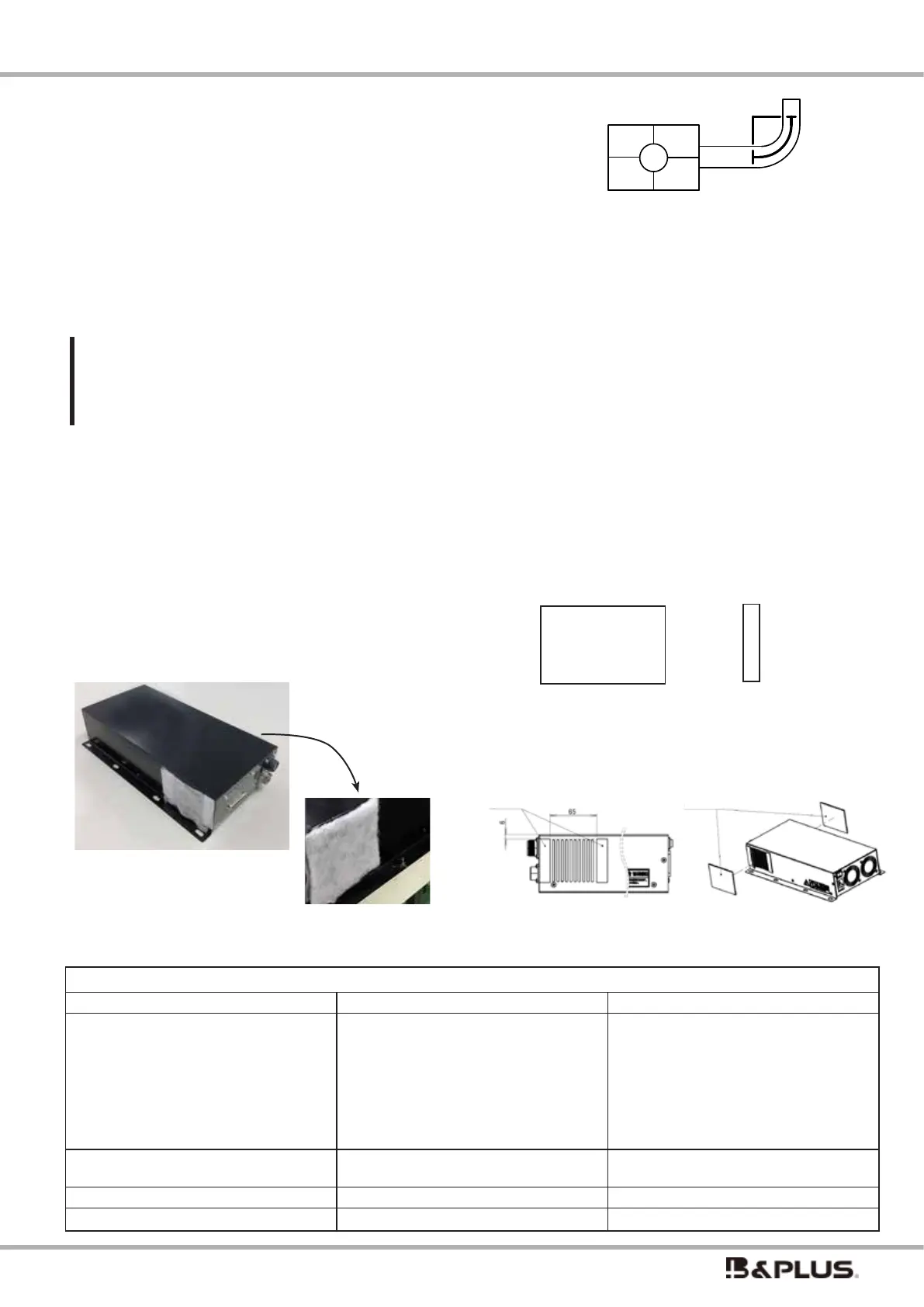

- 14 -
Wireless charging system 600W specication
For 12V・24V・48V battery
R bending of the head and the cable line
Please make the following is greater than
or equal to the number of R(mm) bending of the cable line.
・Active Cable and Passive Cable : R50
・Signal Cable line : R30
〇 Installation of ferrite clamp
For details, see P.18 ～ P.20
Reference example
◆ Filter（Type：
RCS-FILTER01
）
This is a filter for the RCS600-AC. Please use it by
attaching it to the air intake section.
A separate instruction manual is available. (No.T320403)
<Maintenance>
The cooling fan and power switch may require maintenance depending on the operating environment
and frequency of use. If you notice any abnormality when using the product, please contact us.
Also, to reduce dust/mist, attach the lter included with the power supply unit to the air inlet of the
power supply unit. The filter should be inspected periodically, and if any clogging, deterioration, or
contamination is observed, the lter should be replaced immediately. If the lter becomes dirty, not
enough air can be taken in, which may cause malfunction or re. For replacement lters, see P.25 in the
section "9. Included and Optional Accessories".
Filter
8pcs. included
24pcs. for optional purchases
installation image
Tape
8pcs. included
8pcs. for optional purchases
Tape
Filter
Both sides need to be attachd
5. Maintenance
R
■ Daily inspection
Inspection point Inspection details Inspection method
Inspection of each device
・Power connector
・Each terminal block of the Charging unit
· Connectors between devices
・ LED lighting
·others
Whether there are any damaged parts
Whether the screws have fallen o
Whether the wiring is connected correctly
Whether there is any abnormal noise
Whether there is odor
Whether the connector is properly
connected
Whether an abnormality has occurred
Please check by sight, sound and smell.
Presence or absence of metal foreign matter
besides the active head or passive head
Whether there is any metallic foreign
matter between and around the head
Please check by sight.
Error indication LED lighting Whether Error, E1 to E3 are not lit Please check by sight.
Power supply cooling fan operation Wether it is operating without noise Please check by sight and sound.
To Next Page
