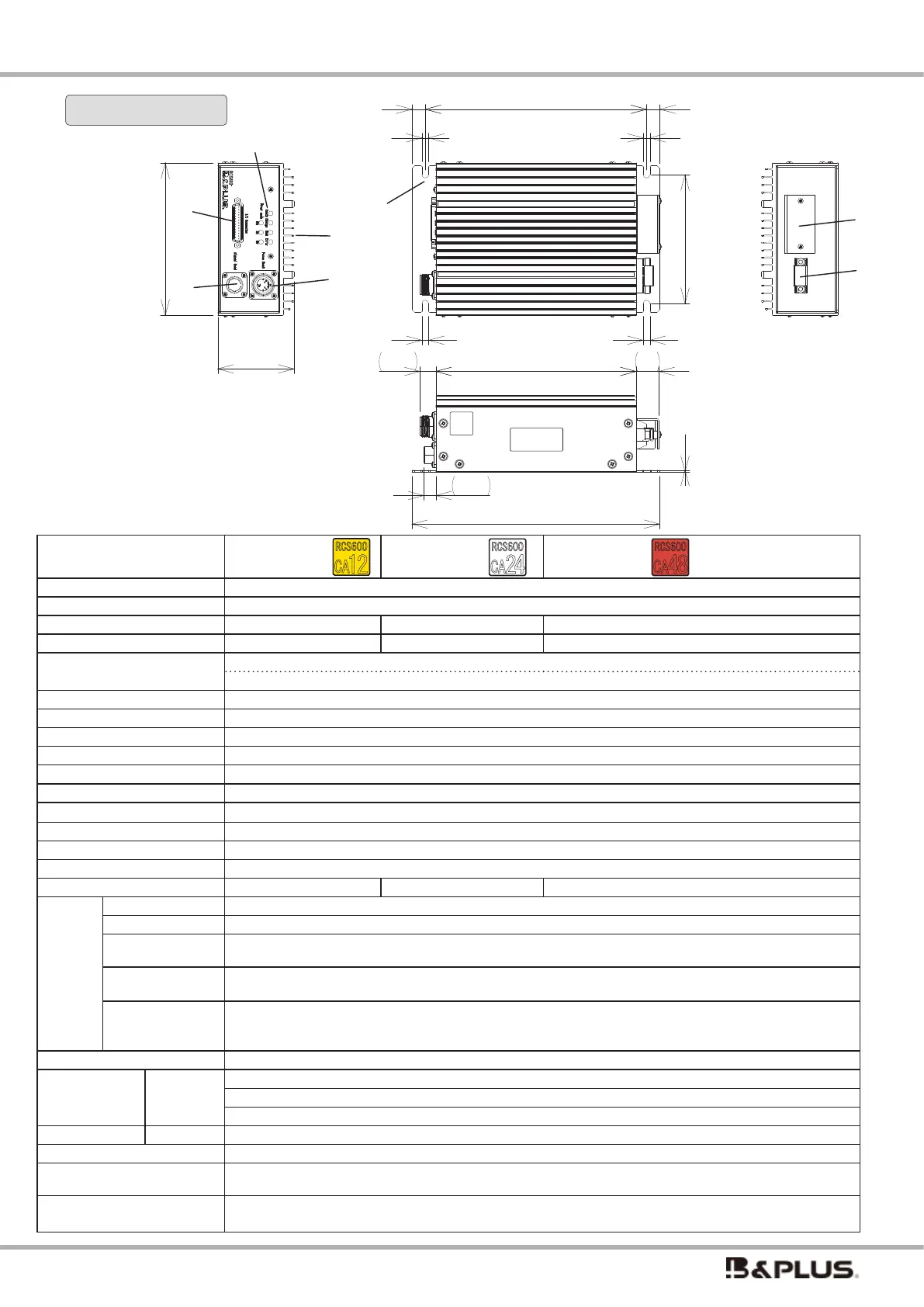

Wireless charging system 600W specication
For 12V・24V・48V battery
7
7
14
7 7
14232
135
80
160
260
16.5
12.5
210
24
1.6
RCS600
CA
24
Setting
Charge voltabe max.
28.8V
Charge current max.
20.0A
Recharge voltabe
24.0V
Type code normal open
normal close
RCS600-CA12
RCS600B-CA12
RCS600-CA24
RCS600B-CA24
RCS600-CA48
RCS600B-CA48
Applicable passive head RCS600-CH, RCS600-CH-L
Applicable battery Lithium ion battery, Lead battery
Output voltage Max.15V Max.35V Max.60V
Output current Max.34A Max.25A Max.12A
External input normal open :Charge start signal (activation signal)
normal close: Charge stop signal
External output Ready, Charge, End, Error, E1 ～ E3
① LED display Ready, Charge, End, Error, E1 ～ E3
Operating temperature 0...50℃
Storage temperature -10...50℃
Operating humidity 35 ... 90% RH or less However, no condensation
Isolation ≧ 50M Ohm
Dielectric strength AC1500V/1min
Shock rating 10 G, in the X, Y, and Z directions 11 ms
Vibration rating 19.6 m / sec
2
(10 to 55 Hz), 20 times in X and Y directions
protection class IP40（Indoor installation type）
Weight 2.8kg 2.7kg 2.7kg
Connec
-
tion
② For power supply
Round 3-pin
③ For communication
Round 5-pin
④ I/O connector
( external I/O signal)
D-sub 25-pin
⑤ Battery
（terminal screw M5)
Terminal block (M5) to connect the AGV battery.
For details on charging method, see p. 21. (Values are factory default settings.)
⑥ Thermistor
（terminal screw M4)
Thermistor connection terminal block (M4) for AGV battery temperature detection. Install the thermistor supplied as an ac-
cessory. *Operation with a resistor is not compensated. When extending the cable, use a cable of 0.25 mm2 or more. When
the battery temperature is other than -10 to 60°C, an abnormal battery temperature is output and charging is stopped.
Cooling method Natural air cooling
Protection
circuit
Battery Battery high / low temperature protection
Over voltage protection
Over current protection
Material Case Aluminum
⑦ Mounting part For enclosure xing 7mm wide M6 bolt x 4 places
⑧ Fin for heat disspation
Since this product uses a natural air cooling system, in order to obtain a higher cooling eect, install the
unit so that it does not interfere with convection, and be careful not to let heat build up.
Accessories Thermistor(Not included in the -NOP type)
Dsub 25P-Connector for start signal ON (included only to normal open type)
RCS600
CA
12
RCS600
CA
24
RCS600
CA
48
※ The printed content of the side
label depends on the model
*normal open and normal close have dierent colors on the front and rear panels. (normal open: gray normal close: black)
①
②
③
④
⑤
⑥
⑦
⑧
Charging unit
