Wireless charging system 600W specication
For 12V・24V・48V battery
G
X 軸方向
Y 軸方向
X 軸方向
Y 軸方向
X 軸方向
Y 軸方向

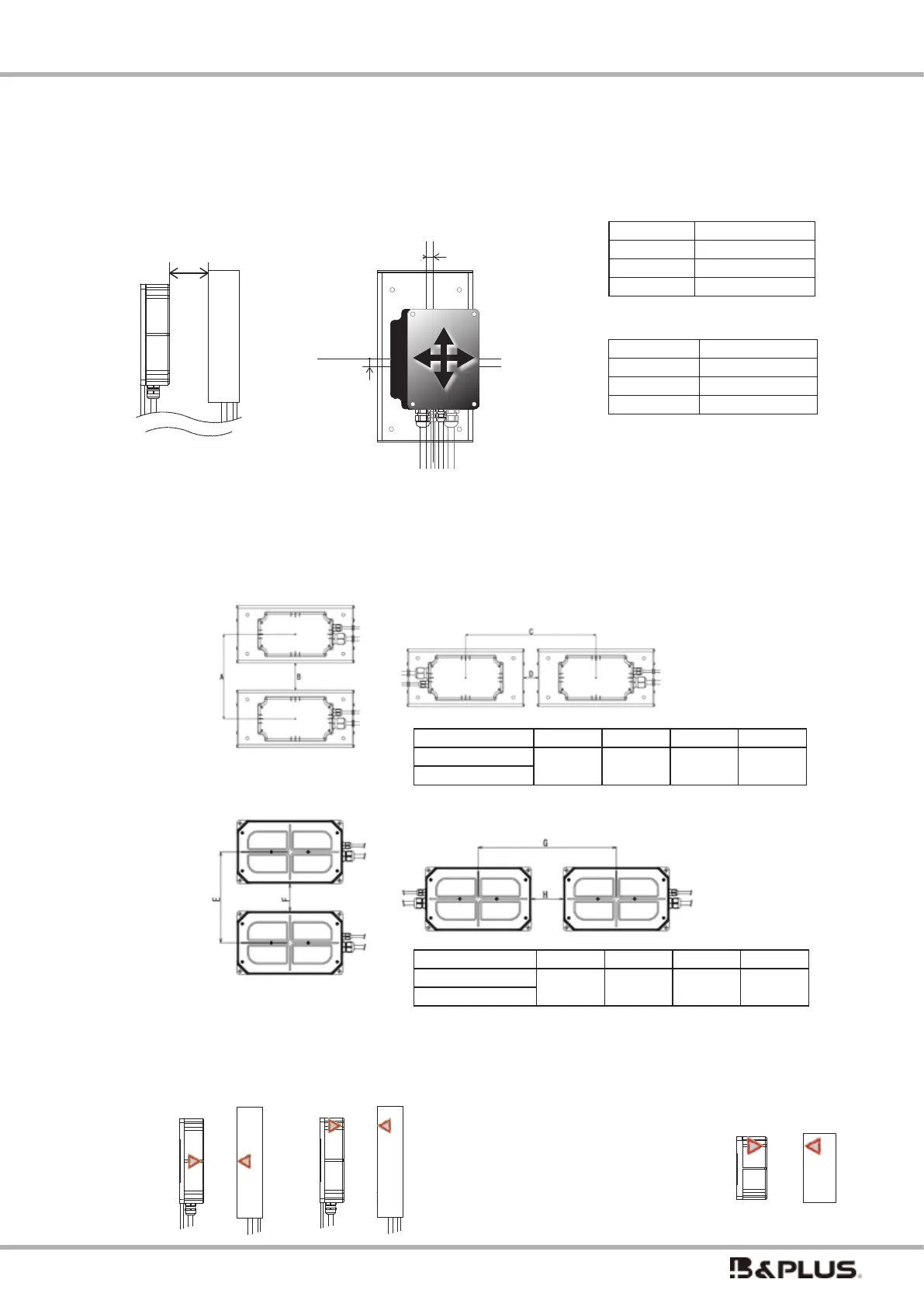

〇 For the transmission distance and center o󱐯-set between the heads
Set the allowable misalignment of the passive head and the active head within the following ranges.
If the product is used outside the range, you may or equipment degradation of transmission e󱐰ciency may be
damaged. Also, it is not possible to combine a standard head and a long distance head.
Direction Distance
G 0 ～ 20mm
X ± 10mm
Y ± 15mm
X direction
Y direction
Direction Distance
G 20 ～ 40mm
X ± 10mm
Y ± 20mm
■
Long Distance Specication Head
* The total axis misalignment
of XY for long distance
specications is up to 20mm.
■
Standard Specication Head
■ Standard Specication Head
Type code A B C D
RCS600-AH
170 45 300 46
RCS600-CH
・Mutual Interference between the heads
If you are installing in parallel head, to avoid the e󱐯ects of mutual interference, please attach the
head with an interval greater than or equal to the value shown in the table below always.
■
Long Distance Specication Head
Type code E F G H
RCS600-AH-L
190 40 290 40
RCS600-CH-L
(mm)
(mm)
〇 Positioning label
Positioning label is included for head positioning.
An example of pasting is shown, so please use it if necessary.
【Side view】 【Top view】
