B&PLUS RCS600 - Installation Notes; Power Supply Unit and Charging Unit; Heads

- 12 -
Wireless charging system 600W specication
For 12V・24V・48V battery
- 18 -
3.各ヘッド取付け注意事項
3-1 周囲金属の影響
周囲金属による影響を避けるため、必ず下記に示す値以上の空間を設けてヘッドを設置する事。
・給電ヘッド/RCS600-AH A＝45mm、D＝46mm
・受電ヘッド/RCS600-CH B＝57.5mm、C＝87mm、E＝45mm
3-2 相互干渉
ヘッドを取り付ける場合、相互干渉による影響を避けるため、必ず下記に示す値以上の間隔を
あけてヘッドを設置すること。
RCS600-AH,RCS600-CH 共に A=400mm
3-3.ケーブル曲げ R
ケーブルの曲げ R は下記数値以上にすること。
電力ケーブル：R50、 通信ケーブル：R30
〇 Inuence of surrounding metal
To avoid inuence of surrounding metal, keep minimum spacing.
Also, please remove metal chips and cutting pieces on the transmission surface of the head part. Metal piec
-
es may generate heat, which may result in damage to equipment or accidents. Therefore, install it so that the
metal does not face each other for a long time within the range outside the specications.
■ Active Head ／ RCS600-AH
Power supply unit Charging unit
■ Passive Head ／ RCS600-CH
A B C D E
Active Head
RCS600-AH
45 46
Passive Head
RCS600-CH
57.5 87 45
(mm)
non-metal non-metal
metal metal
F
F
F
F
G
金属
■給電ヘッド/RCS600-AH-L
■受電ヘッド/RCS600-CH-L
F G
Active Head
RCS600-AH-L
0 40
Passive Head
RCS600-CH-L
(mm)
■
Long Distance Specication Active Head ／ RCS600-AH-L
■
Long Distance Specication Passive Head ／ RCS600-CH-L
metal

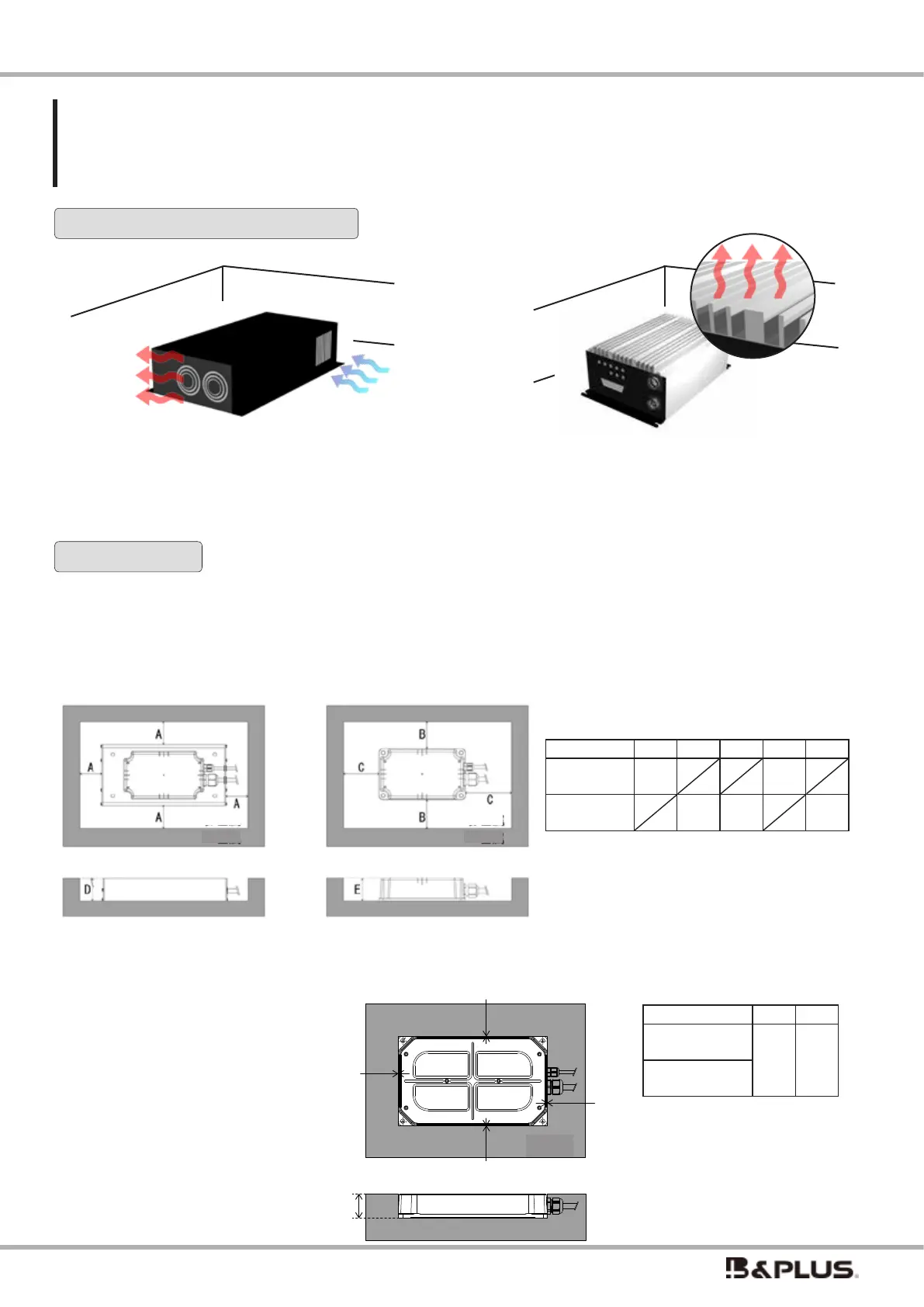

4.Notes at the time of installation
(at the time of attachment)
Power supply unit and Charging unit
Heads
Since this product is a natural air cooling
system, in order to obtain a higher cooling e󱐯ect,
please install the unit so that the installation
environment does not interfere with convection
and do not allow heat to build up.
Since this product uses a forced air cooling
system with a built-in fan, take care to ensure
that the air intake and exhaust ports are not
blocked, and that the installation environment
of the unit does not hinder convection so that
heat does not accumulate.
