B&PLUS RCS600 - Power Supply Unit

- 8 -
Wireless charging system 600W specication
For 12V・24V・48V battery
11
100 120 100
8
190
170
80
210
1
（16.5）
（12.5）
350
（6）
Type code RCS600-AC
Applicable active head RCS600-AH, RCS600-AH-L
Rated input voltage AC100V / AC200V
Supply voltage AC 90V ...AC 220V Single phase 50/60 Hz
Current consumption 9A (at 100V), 4.5A (at 200V)
① LED display Power, Ready, Charge, End, Error, E1 ～ E3（See page15）
External output Power, Ready, Charge, End, Error, E1 ～ E3
Operating temperature 0...50℃
Storage temperature -10...50℃
Operating humidity 35 ... 90% RH or less However, no condensation
Isolation ≧ 50M Ohm
Dielectric strength AC1500V, 1 minute
Shock rating 10 G, in the X, Y, and Z directions 11 ms
Vibration rating 19.6 m / sec
2
(10 to 55 Hz), 20 times in X and Y directions
Protection class IP20 （Indoor installation type）
Weight 3.3kg
Connec
-
tion
② For power supply Round 3-pin
③ For communication Round 5-pin
④ I/O connector( exter -
nal I/O signal)
D-sub25-pin（See page 15）
⑤ Power 3P inlet/ This path has an overcurrent protection circuit with a fuse. The ground re
-
sistance should be 100 Ω or less.
Cooling method Forced air cooling
Protection circuit Overheat protection
Material Case SECC
⑥ Mounting part
7mm x 15mm (M6 bolt: 4 mounting locations, 4 auxiliary locations) for enclosure xing
⑦ Power supply switch Main power on/o󱐯
⑧ Exhaust port Since this product uses a forced air cooling system with a built-in fan, take care to ensure that the air
intake and exhaust ports are not blocked, and that the installation environment of the unit does not
hinder convection so that heat does not accumulate
⑨ Inlet
⑩ Serial number label
SERIAL NO description
Accessories Power cable with ferrite clamp E04SR401938 (gray) 1PC.
Filters for air intake 8pcs., tapes 8pcs.

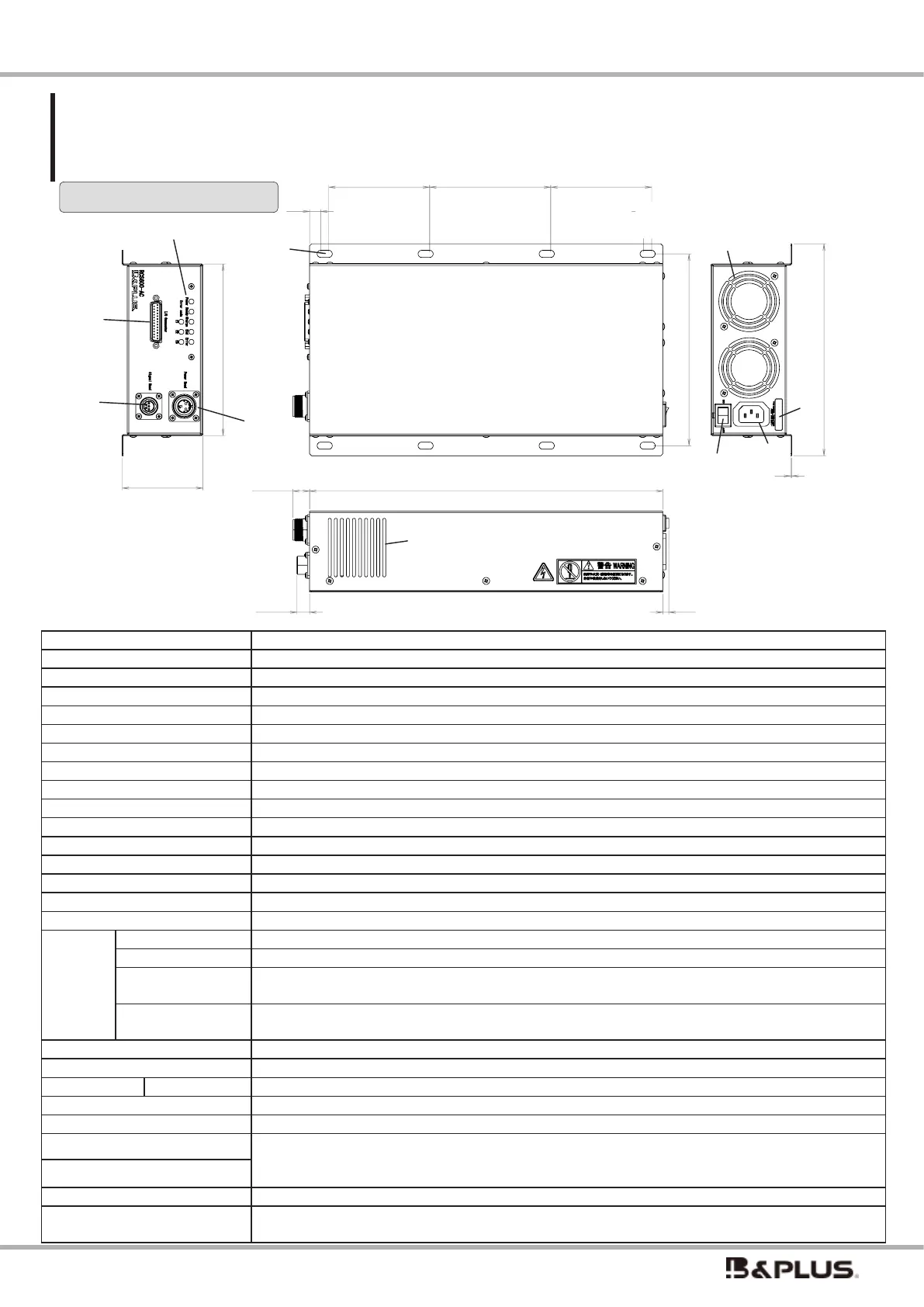

3.The name and specication of each part
Power Supply unit
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
