NanoRam
®
Series Handheld Raman
19 Shea Way, Newark, DE 19713, USA • Tel: +1 (302) 368-7824 • Fax: +1 (302) 368-7830 • Web: www.bwtek.com
290020255-J (2017/07/28) Page 20 of 38 Copyright 2017 B&W Tek

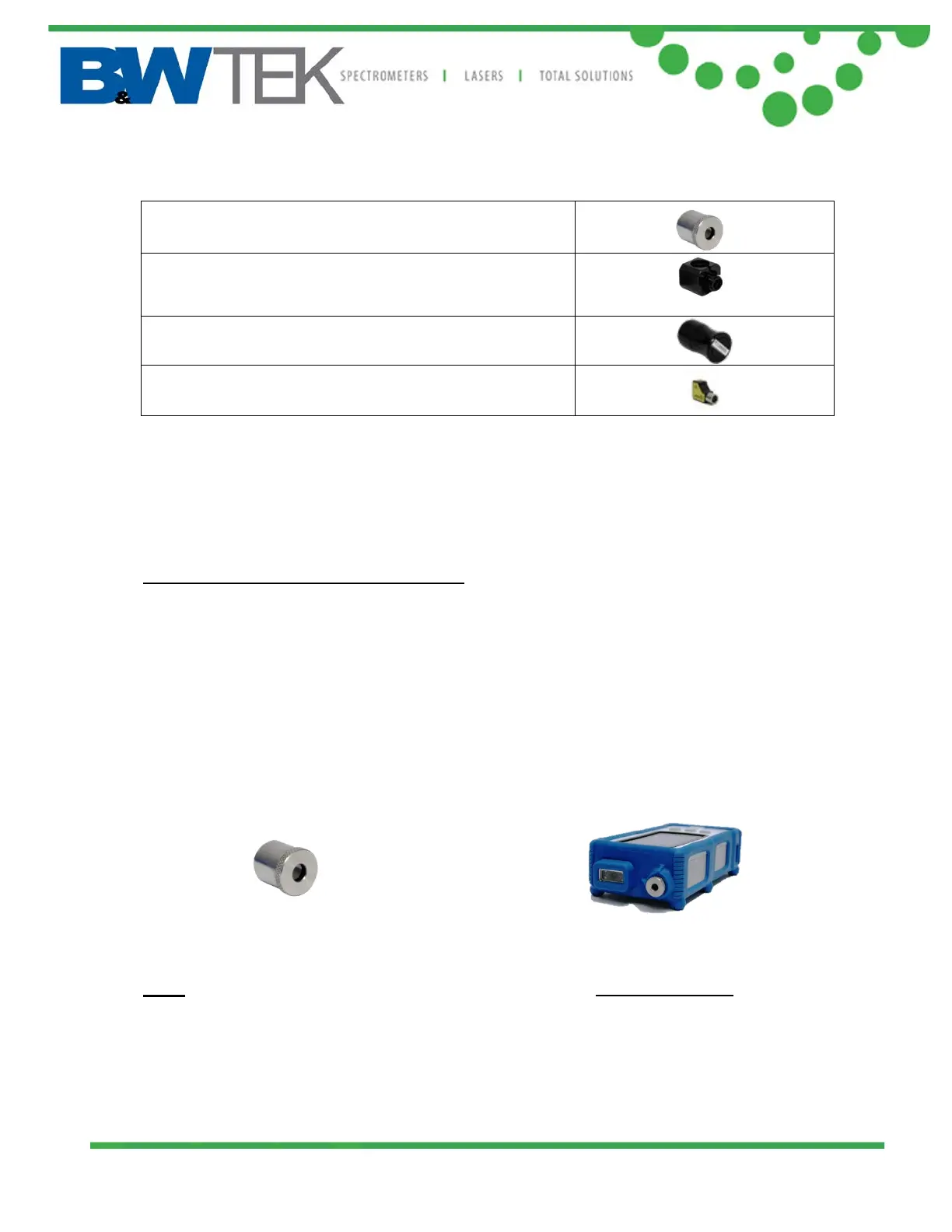

Liquid vial holder adaptor that
holds a 15mm(diameter)x 45mm(height) vial
Performance validation cap with built-in
polystyrene
Right Angle Adapter (optional)
The user needs to ensure that the sampling adaptor is installed properly before using the
NanoRam Mini. Before installing any accessories, the NanoRam Mini should be at the
log in screen with the laser turned off to ensure safety. No operations are permitted
without the lensed shaft in full installed position with standard accessories.
Using the Point-and-Shoot Adaptor
The point-and-shoot adaptor can be used for powder and other solid samples. With the
point-and-shoot adaptor in place, hold the NanoRam Miniunit so that the adaptor is
against the sample container or sample surface.
To install point-and-shoot adaptor, insert the adaptor onto the shaft, gently push it all the
way in until the adaptor is installed properly into position and secured by the rubber
jacket ribs.
Note: We do not recommend that the adaptor touch powder samples directly, as they
may contaminate the lens on the shaft. The use of a protective transparent plastic film is
recommended.
