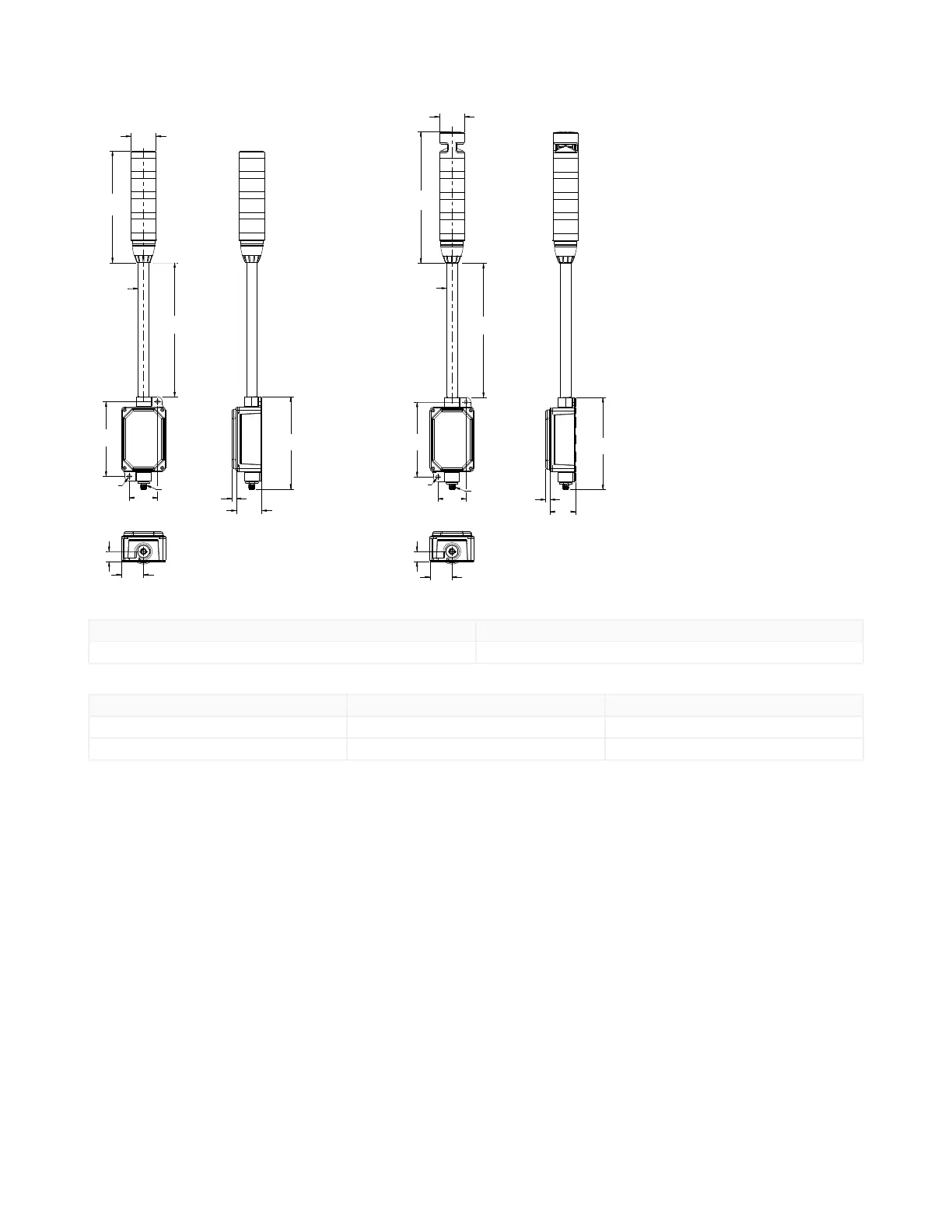

Banner TL50 - Physical Dimensions and Configurations; Model Dimensions; Tower Light Heights

TL50 Basic Wireless Andon Tower Light Instruction Manual
December 19, 2023 page5

Ø50.0
[1.97]
Ø7.1
[0.28]
2X
Ø7.1
[0.28]
2X
Ø21.3
[0.84]
Ø21.3
[0.84]
Standard Models Audible Models
H2
H1
182.8
[7.2]
50.8
[2.0]
50.8
[2.0]
182.8
[7.2]
8.6
[0.34]
8.6
[0.34]
148.1
[5.83]
55.9
[2.2]
20.1
[0.79]
43.8
[1.73]
148.1
[5.83]
55.9
[2.2]
Ø50.0
[1.97]
M12 x 1.0M12 x 1.0
M12 x 1.0
20.1
[0.79]
43.8
[1.73]
H1
H2
Stand-Off Pole Height (H1)
Model Stand-Off
LCA..TL50..300 300 mm (11.81 in)
Tower Light Height (H2)
# of Segments Standard Audible
3 180.9 mm (7.12 in) 220.0 mm (8.66 in)
4 221.6 mm (8.72 in) 260.7 mm (10.26 in)
