TL50 Basic Wireless Andon Tower Light Instruction Manual
•
•
•
•
•
•
•
•

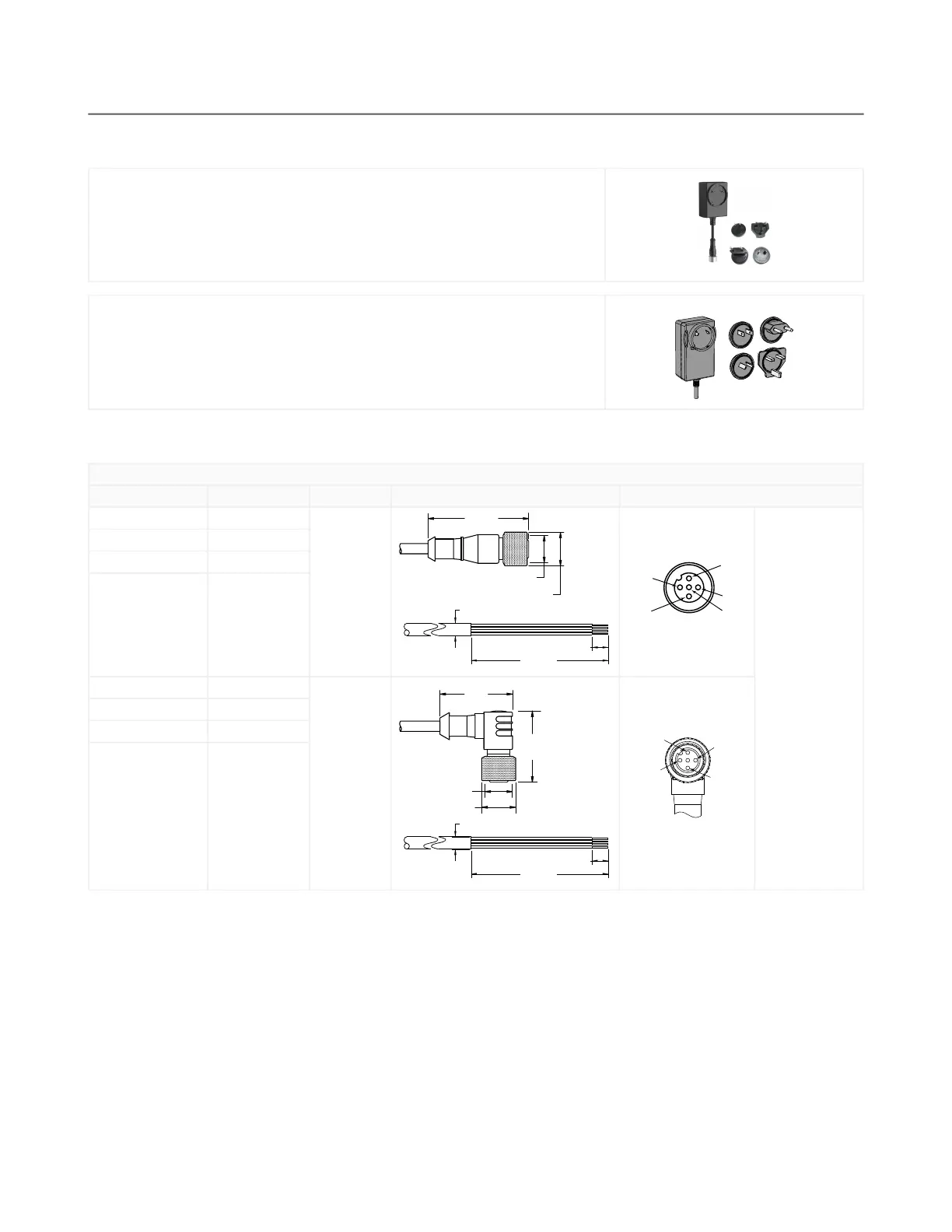

Accessories
Power Supply
PSW-24-1
24VDC,1AClass2ULListedpowersupply
100VACto240VAC50/60Hzinput
2m(6.5ft)PVCcablewithM12quickdisconnect
Includes Type A (US, Canada, Japan, Puerto Rico, Taiwan), Type C (Germany, France,
South Korea, Netherlands, Poland, Spain, Turkey), Type G (United Kingdom, Ireland,
Singapore,Vietnam),andTypeI(China,Australia,NewZealand)ACdetachableinputplugs
TYPE A TYPE G
TYPE C TYPE I

PSW-24-2
24VDC,2AClass2ULListedpowersupply
100VACto240VAC50/60Hzinput
3.5m(11.5ft)PVCcablewithM12quickdisconnect
Includes Type A (US, Canada, Japan, Puerto Rico, Taiwan), Type C (Germany, France,
South Korea, Netherlands, Poland, Spain, Turkey), Type G (United Kingdom, Ireland,
Singapore,Vietnam),andTypeI(China,Australia,NewZealand)ACdetachableinputplugs

Cordsets
4-PinThreadedM12Cordsets—SingleEnded
Model Length Style Dimensions Pinout(Female)
MQDC-406 2m(6.56ft)
Straight

44 Typ.
ø 14.5
M12 x 1
7 mm
58 mm
Ø5.2 mm

2
3
4
1
5

1=Brown
2=White
3=Blue
4=Black
5=Unused
MQDC-415 5m(16.4ft)
MQDC-430 9m(29.5ft)
MQDC-450 15m(49.2ft)
MQDC-406RA 2m(6.56ft)
Right-Angle

32 Typ.
[1.26"]
30 Typ.
[1.18"]
ø 14.5 [0.57"]
M12 x 1
7 mm
58 mm
Ø5.2 mm
1
2
3
4

MQDC-415RA 5m(16.4ft)
MQDC-430RA 9m(29.5ft)
MQDC-450RA 15m(49.2ft)
