Banshee 700 - Landing Gear and Tail Boom Clamp Assembly

To Next Page

To Previous Page

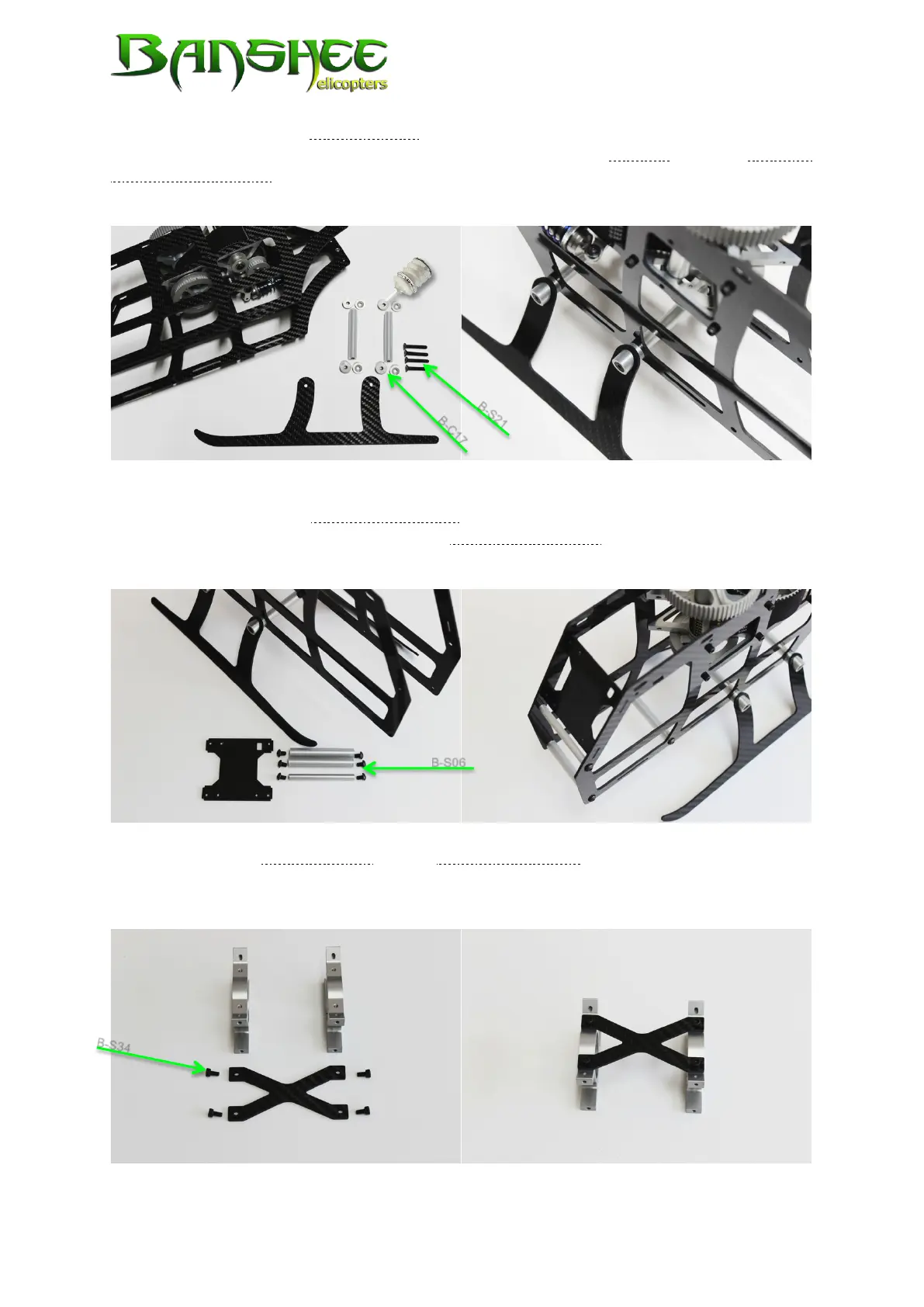

Now continue with the landing gear. Screw it with 4 landing gear mountings

(B-C17)

and 4 countersunk head cap bolts hex M4 x 25

(B-S21)

to the chassis and two covered

chassis connectors. Apply some grease on the landing gear mountings to facilitate

assembly.

Screw the other two covered chassis connectors to the chassis with pan head bolts

M4 x 6

(B-S06)

. Insert the controller platform into the slots provided, as indicated in the

pictures. Then screw the last remaining chassis connector to the chassis below the

controller platform.

Proceed with the cross-bracing of the tail boom clamps. You need 4 cylinder head

bolts hex M3 x 5

(B-S34)

. For the time being, screw the bolts only lightly to avoid any

tension.

S21

C17

B-S06

S34
