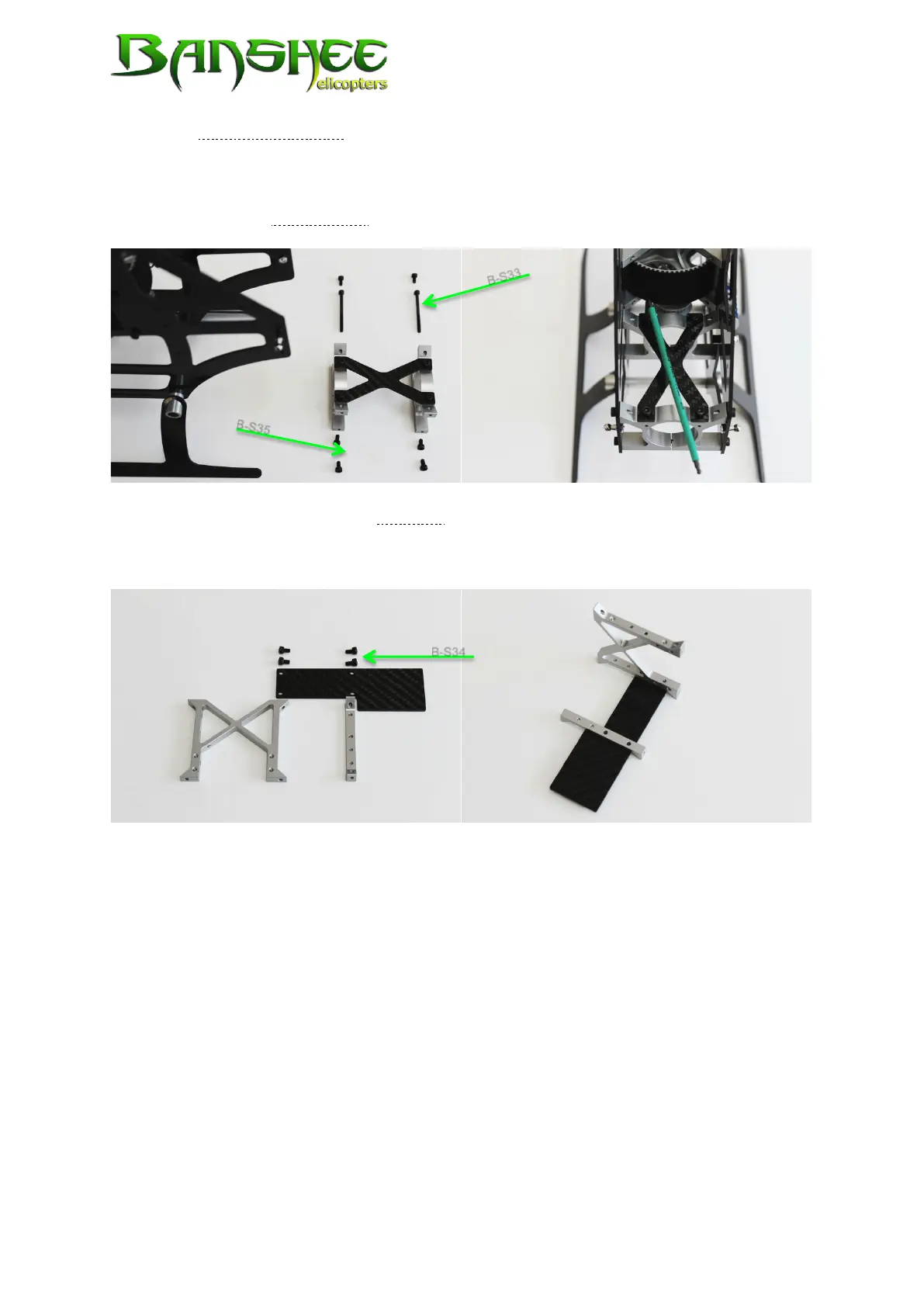

Insert the tail boom clamps completely into the chassis. Use 6 cylinder head bolts
hex M3 x 6
(B-S35)
. To clamp the tail boom take two cylinder head bolts hex M3 x 40
(B-S33)
, push them into the through-holes on the right-hand side (seen from behind)
and tighten them. Once the tail boom clamps have aligned themselves with the chas-
sis, tighten fast the cross-brace.
!
Pre-assemble the independent RC-unit. This platform serves to mount the elevator
servo, tail servo, FBL, receiver and BEC, in case there is one to install. You need 4
cylinder head bolts hex M3 x 5
(B-S34)
.
