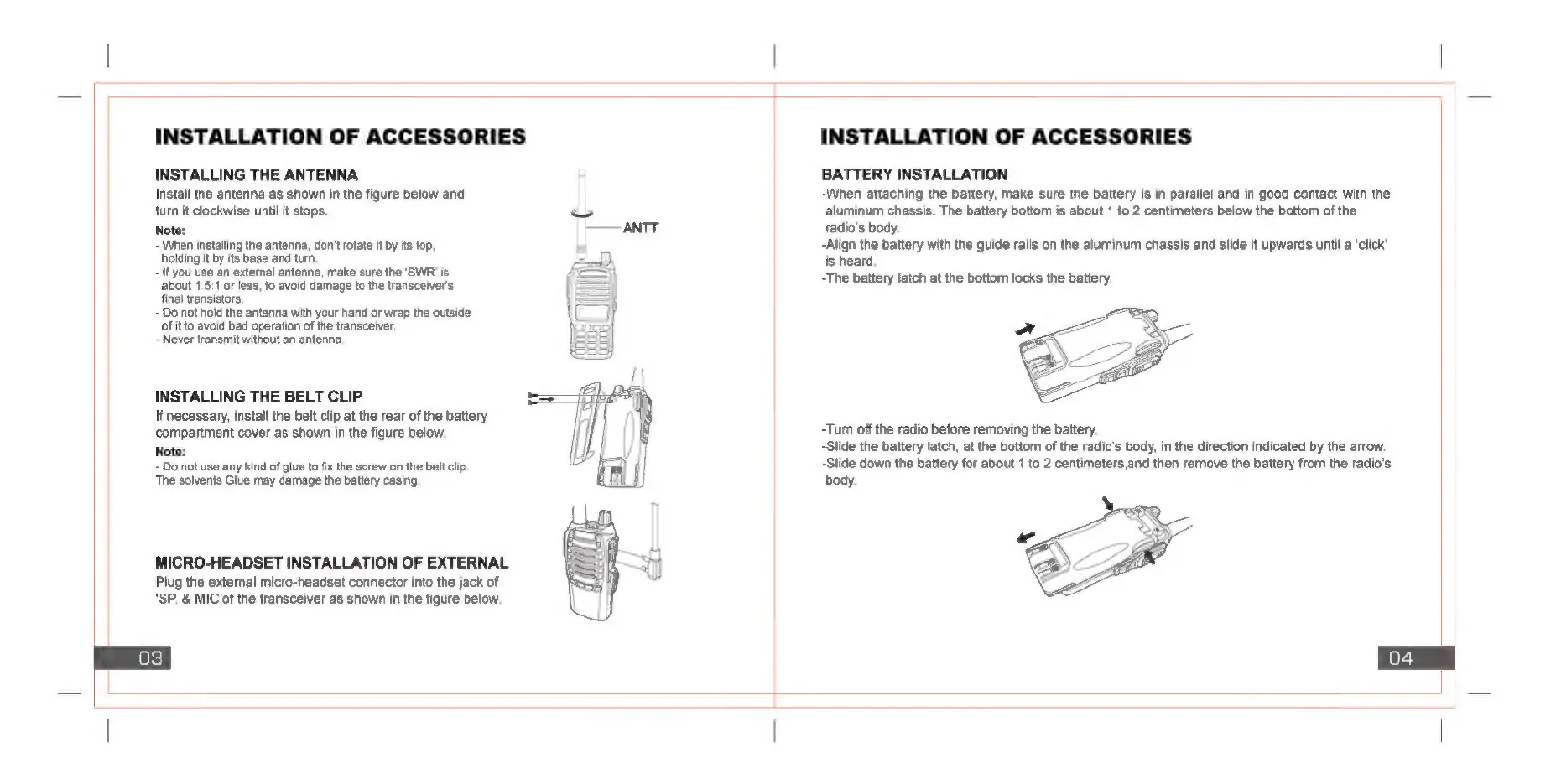

INSTALLATION
OF
ACCESSORIES
INSTALLING
THE
ANTENNA
Install
the
antenna
as
shown
in
the
figure
below
and
turn
it
clockwise
until
it
stops.
Note:
-
When
installing
the
antenna,
don't
rotate
it
by
its
top,
holding
it
by
its
base
and
turn.
-
Ifyou
use
an
external
antenna,
make
sure
the
‘SWR'
is
about
1.5:1
or
less,
to
avoid
damage
to
the
transceiver's
final
transistors.
=
Do
not
hold
the
antenna
with
your
hand
or
wrap
the
outside
of
it
to
avoid
bad
operation
of
the
transceiver.
~
Never
transmit
without
an
antenna.
INSTALLING
THE
BELT
CLIP
If
necessary,
install
the
belt
clip
at
the
rear
of
the
battery
compartment
cover
as
shown
in
the
figure
below.
Note:
-
Do
not
use
any
kind
of
glue
to
fix
the
screw
on
the
belt
clip
The
solvents
Glue
may
damage
the
battery
casing
MICRO-HEADSET
INSTALLATION
OF
EXTERNAL
Plug
the
external
micro-headset
connector
into
the
jack
of
‘SP.
&
MIC’of
the
transceiver
as
shown
in
the
figure
below.
INSTALLATION
OF
ACCESSORIES
BATTERY
INSTALLATION
-When
attaching
the
battery,
make
sure
the
battery
is
in
parallel
and
in
good
contact
with
the
aluminum
chassis.
The
battery
bottom
is
about
1
to
2
centimeters
below
the
bottom
of
the
radio's
body.
-Align
the
battery
with
the
guide
rails
on
the
aluminum
chassis
and
slide
it
upwards
until
a
‘click’
is
heard.
-The
battery
latch
at
the
bottom
locks
the
battery.
-Turn
off
the
radio
before
removing
the
battery.
-Slide
the
battery
latch,
at
the
bottom
of
the
radio's
body,
in
the
direction
indicated
by
the
arrow.
-Slide
down
the
battery
for
about
1
to
2
centimeters,and
then
remove
the
battery
from
the
radio's
body.
