Baoli CPD10 - Page 42

37

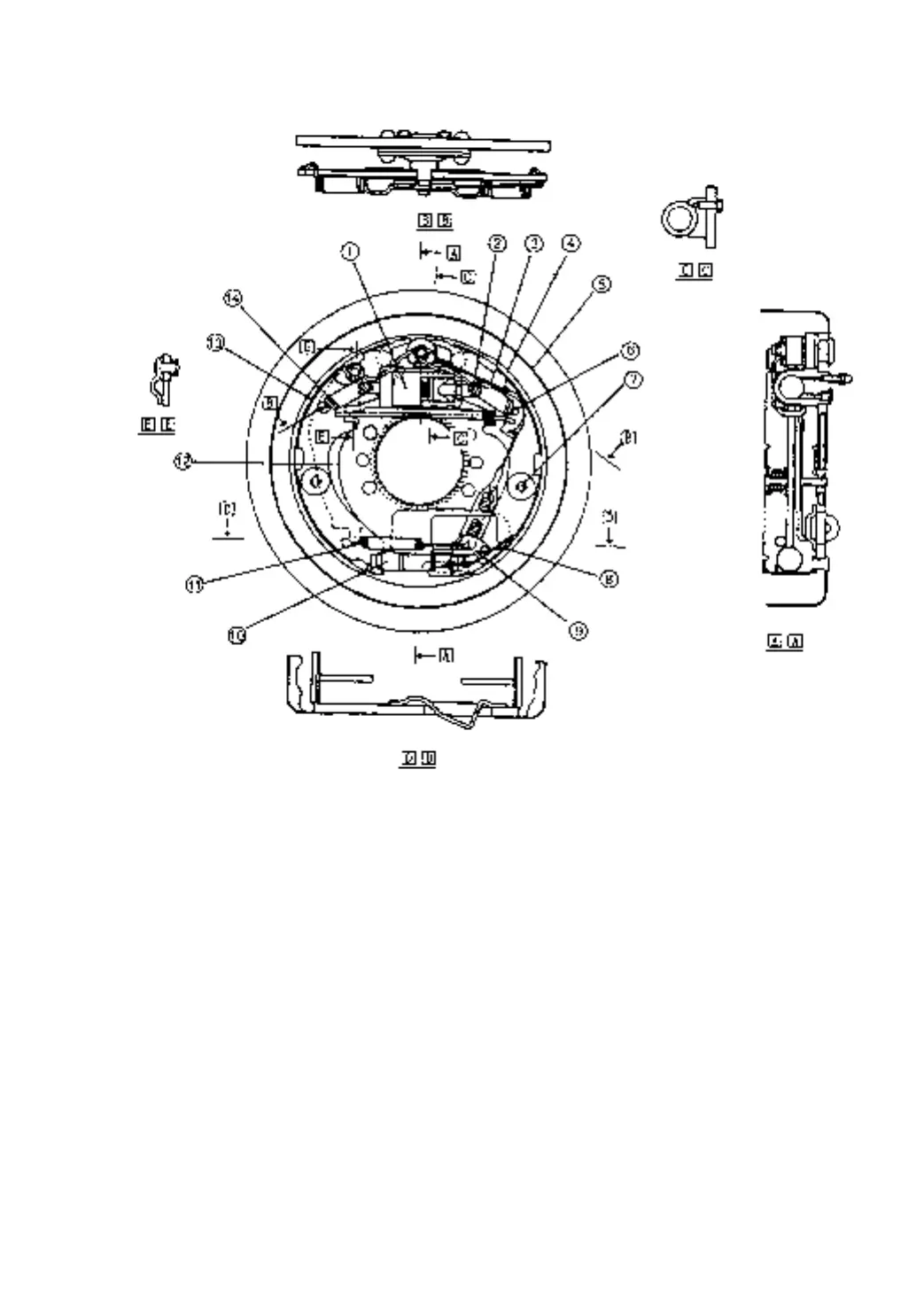

Fig.2-9 Wheel brake (2-3t)
1
Operating cylinder
6
Parking push rod
11
Spring
2
Spring
7
Pressure spring
12
Parking pull rod
3
Push rod
8
Spring
13
Primary brake shoe
4
Secondary brake shoe
9
Ratchet pawl
14
Return spring
5
Backing plate
10
Clearance self-adjuster
