Baoli CPD10 - Page 41

36

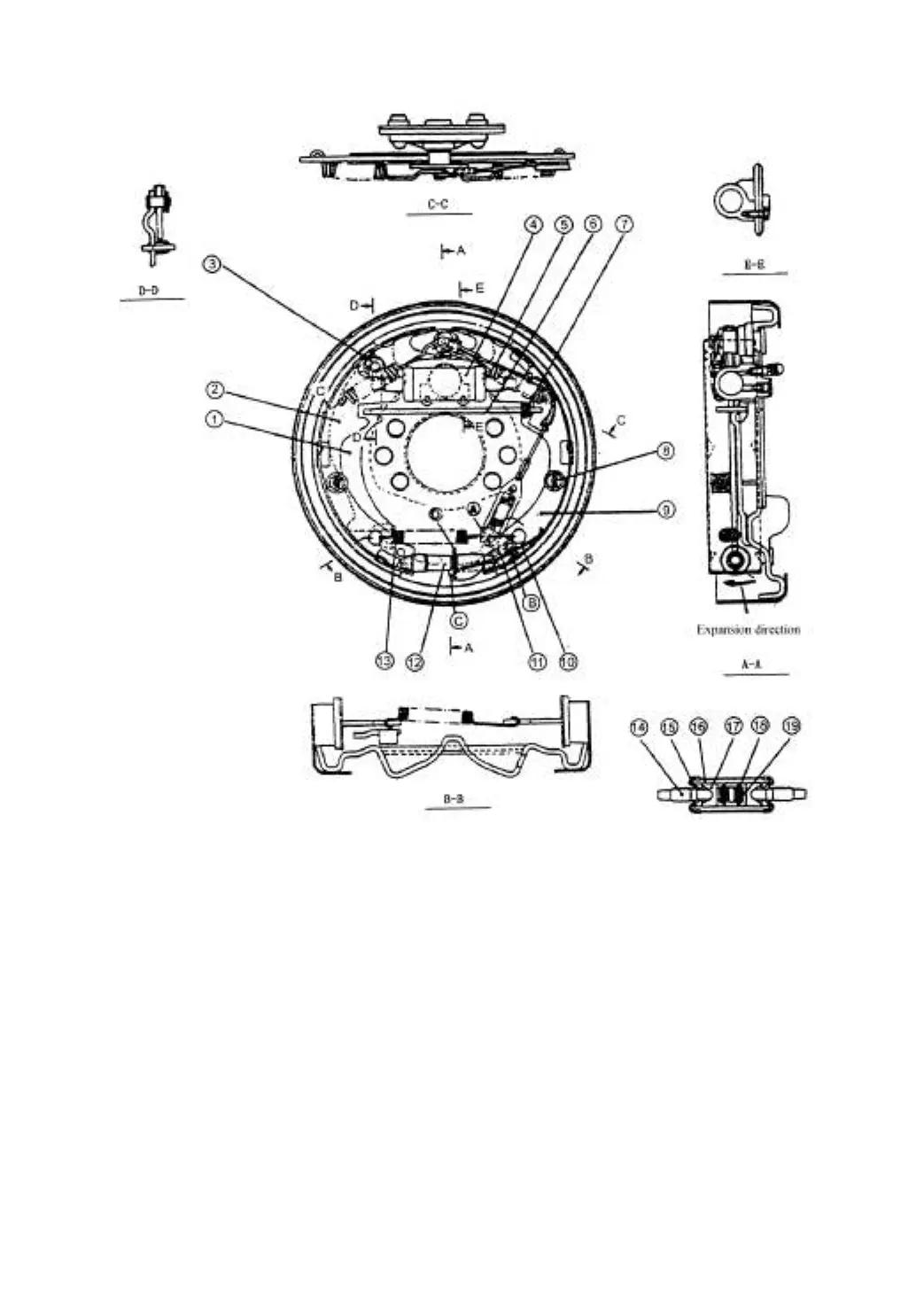

Fig.2-8 Wheel brake (1-1.5t)
1
Parking pull rod
8
Pressure spring
15
Dust ring
2
Primary brake shoe
9
Secondary brake shoe
16
Cylinder body
3
E-retainer
10
Spring
17
Piston
4
Operating cylinder
11
Ratchet pawl
18
Spring
5
Return spring
12
Clearance self-adjuster
19
Cup
6
Parking push rod
13
Spring
7
Spring
14
Push rod
