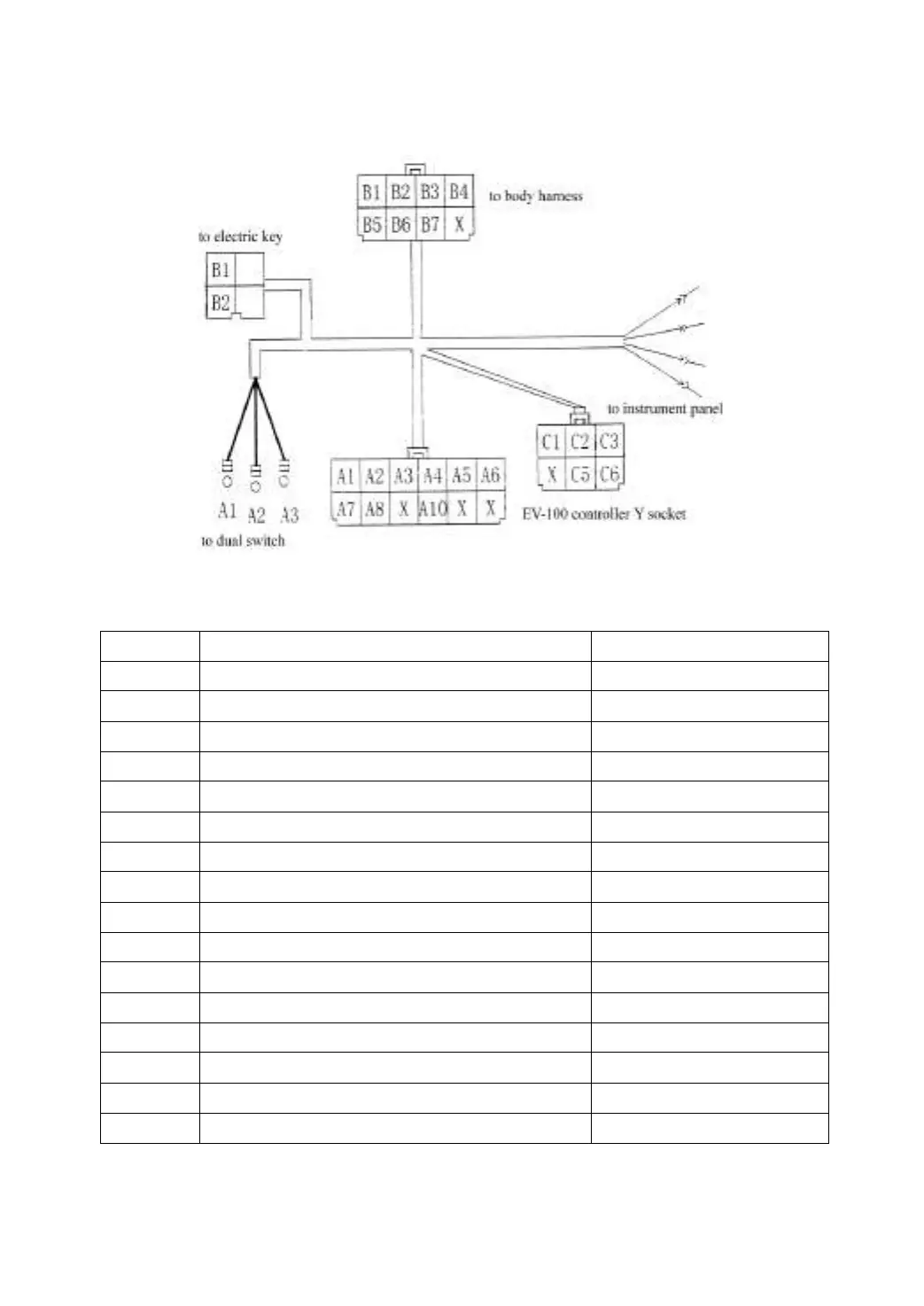

4.6.3 Meter connector
Port No.
Function
Color
A1
Input power 12V
Red
A2
Dual switch shift Ⅰ(width indication)
Purple
A3
Dual switch shiftⅡ (head lamp)
Orange
A4
Hand brake signal(48V)
Blue
A5
Forward signal
Brown
A6
Backward signal
Gray
A7
Input left turning signal
Yellow
A8
Input right turning signal
Green
A10
Input short signal
Pink
B1
12V(key switch)
Grown
B2
Output 12V(key switch)
Red
B3
Input 48V (Input 80V)
Yellow and green
B4
Output 48V(Output 80V)
Purple
B5
Power negative
Black
B6
Voltage measuring(pump output)
Light blue
B7
Backing buzzer output (12V)
Green
