(3) One-way clutches in the torque converter are used to increase the efficiency for
power transmission.
(4) High quality oil filters is helpful to increase the life of the torque converter.

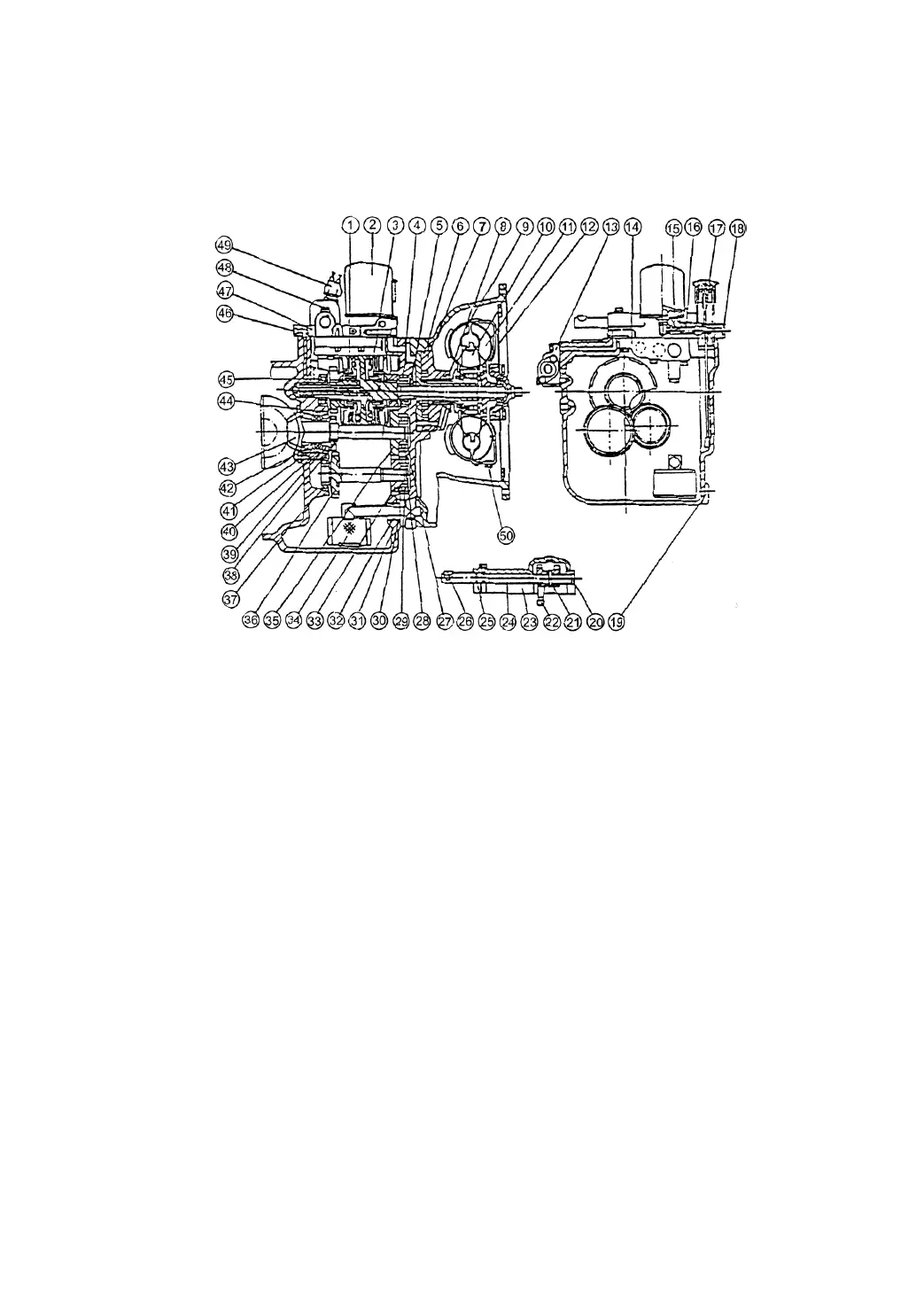

Fig2.1 Hydraulic drive unit
1.
Forward clutch
18.
Safety valve cover
35.
Output gear
2.
Oil filter
19.
Inner-hexagon plug
36.
Idler shaft
3.
Backward clutch
20.
Plug
37.
Single-row radial ball bearing
4.
Single-row radial ball bearing
21.
Spring pin
38.
Bearing nut
5.
Seal ring
22.
Shift arm
39.
Single-row tapered roller bearing
6.
O-ring
23.
Transmission case cover
40.
O-ring
7.
Charging pump
24.
Shift shaft
41.
Oil seal
8.
Oil seal
25.
O-ring
42.
Single-row tapered roller bearing
9.
Impeller
26.
Haft-round key
43.
Output shaft
10.
Guide wheel
27.
Clip ring for hole
44.
Supporting piece
11.
Turbine
28.
Single-row radial ball bearing
45.
Single-row radial ball bearing
12.
Spring plate
29.
Single-row radial ball bearing
46.
Inner-hexagon plug
13.
Inching valve
30.
O-ring
47.
Cover
14.
Control valve
31.
Snap ring
48.
Bolt
15.
Piston
32.
O-ring
49.
Switch, reverse lamp
16.
Spring
33.
Idler
50.
Drain plug
17.
Oil inlet cover
34.
Oil filter
