Baoli F Series - Lifting system; General description

73
7. Lifting system

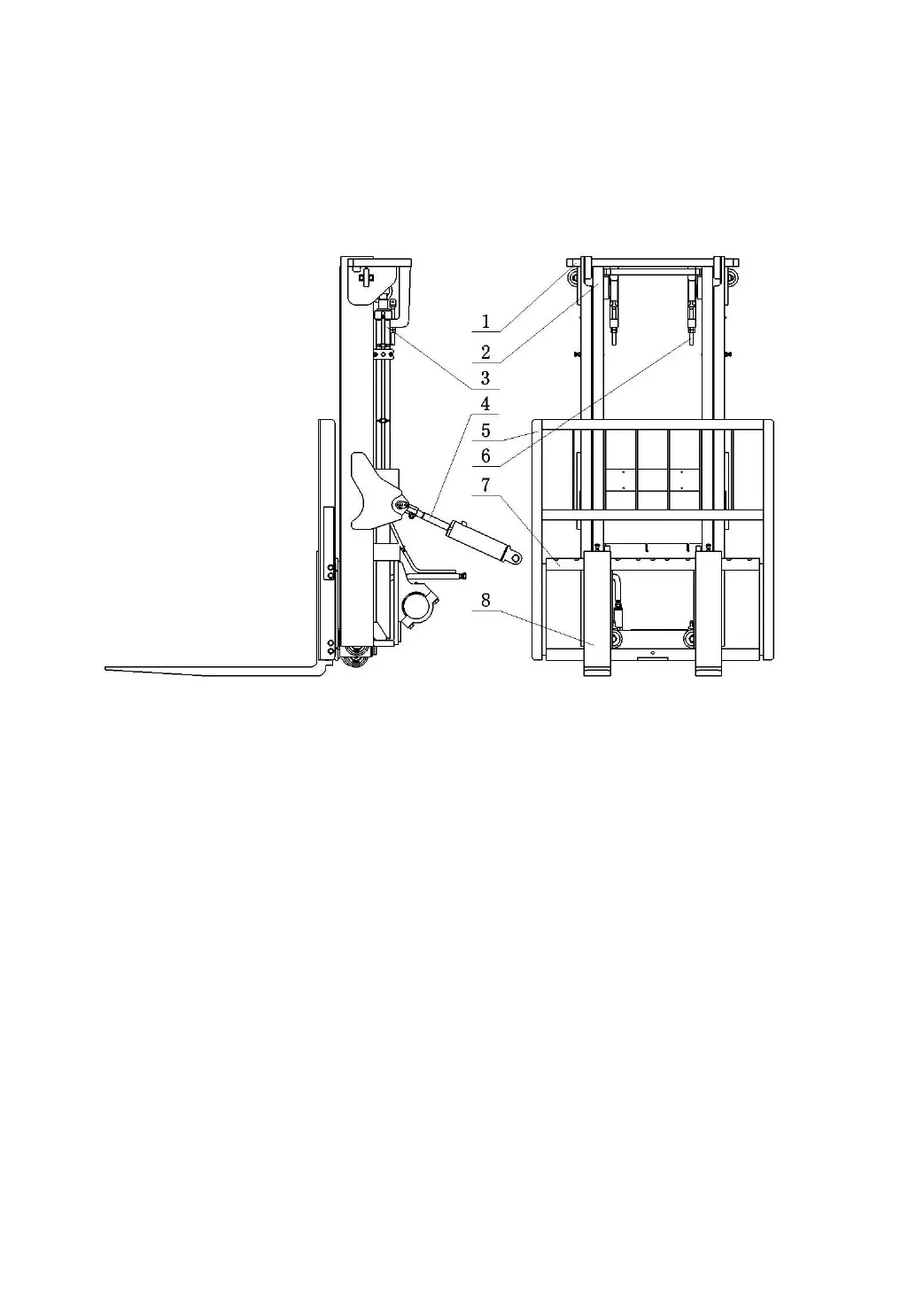

Fig7.1 Mast
1.
Outer mast
4.
Tilt cylinder
7.
Lift bracket
2.
Inner mast
5.
Load backrest
8.
Fork
3.
Lift cylinder
6.
Lift chain
7.1 General description
The lifting system is the type of lifting and descending vertically with the two-stage
rollers. It consists of the inner mast, the outer mast and the lift bracket.
