(7) Oil pressure signal
Before starting the engine, put the key switch to theⅠ(ON) position and the oil
pressure warning lamp lights. After engine starting, the oil pressure warning lamp is
automatically off. If this lamp lights while the engine is working, it indicates low engine oil
pressure and you must stop working and check as soon as possible.
(8) Water separator signal
Before starting the engine, put the key switch to the Ⅰ(ON) position, the meter will
check automatically and the water separator warning lamp is on. After 1-2s, the lamp is off
automatically. If this lamp becomes on while the engine is working, it means too much
water has been accumulated in the water separator. After pushing the handle of the water
separator to get rid of the water, this lamp will become off.
(9) Fuel meter
It indicates how much fuel is left in the fuel tank. If the indicating needle nears E
position, it means there is less fuel in the fuel tank. You should replenish the fuel tank as
soon as possible.
(10) Water temperature meter
It indicates the temperature of the coolant for the engine.
(11) Hour meter
It records the working hours of the engine.
8.3 Instructions of meter panel

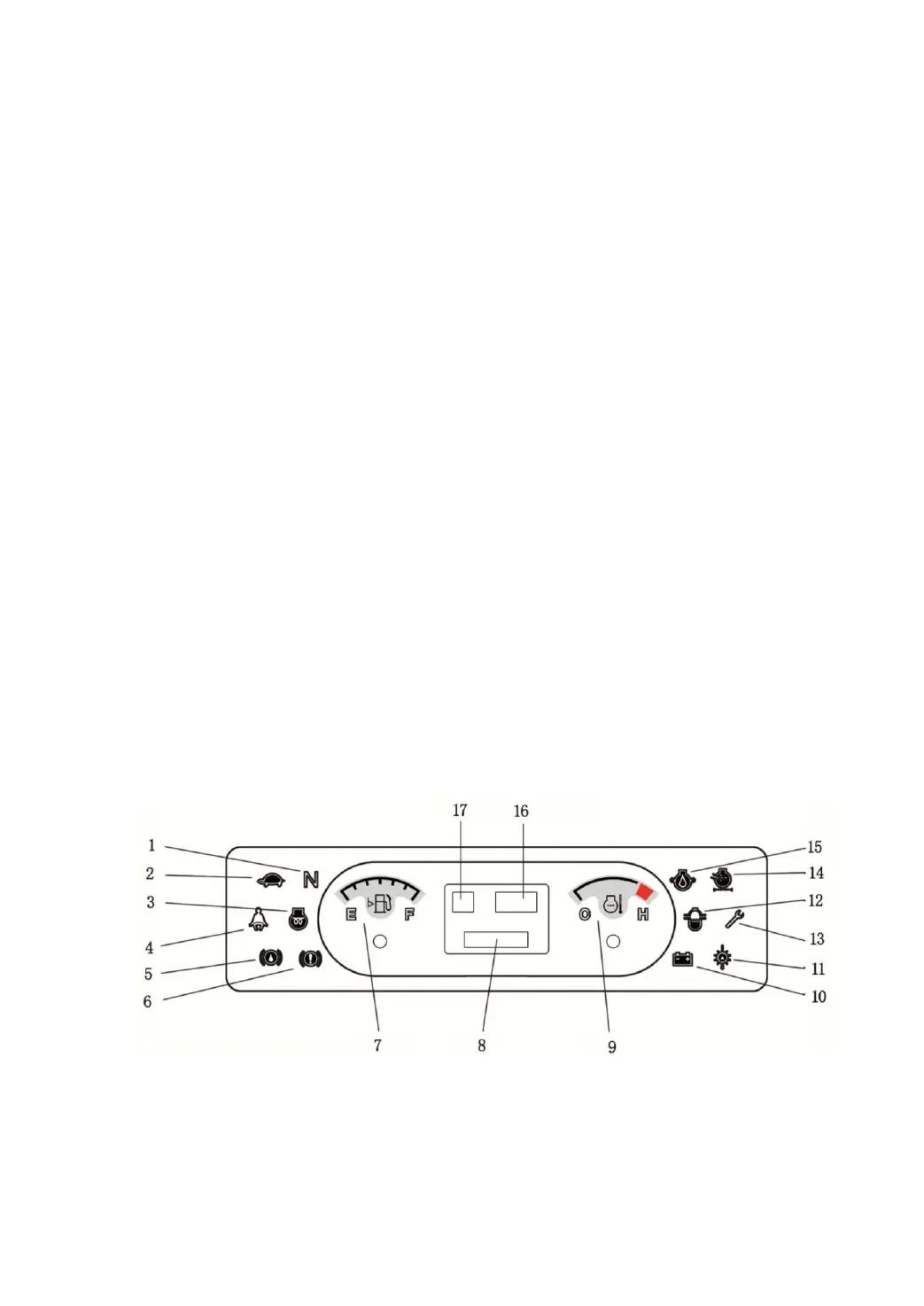

Fig8.1 Numeric combination meter
