5. Steering system
2t, 2.5t
3t
3.5t
Steering system
Rear wheel powered steering
Type of steering unit
Cycloid gear type powered steering unit
Model of steering unit
BZZ1-100 (sealed by taper ring)
Steering
cylinder
Type
Double-action piston type
Cylinder bore
mm
φ70
Diameter of piston rod
mm
φ50
Stroke
mm
160
Rated pressure
Mpa
7
9
10.5
Diameter of handwheel
mm
φ290
Pressure of steering wheel
Mpa
0.84
0.76
The steering system principally consists of hand wheel, steering shaft and steering
unit. The steering shaft is connected with the steering unit. The steering column can be
tilted forward or backward to suitable position. (See Fig5.1)

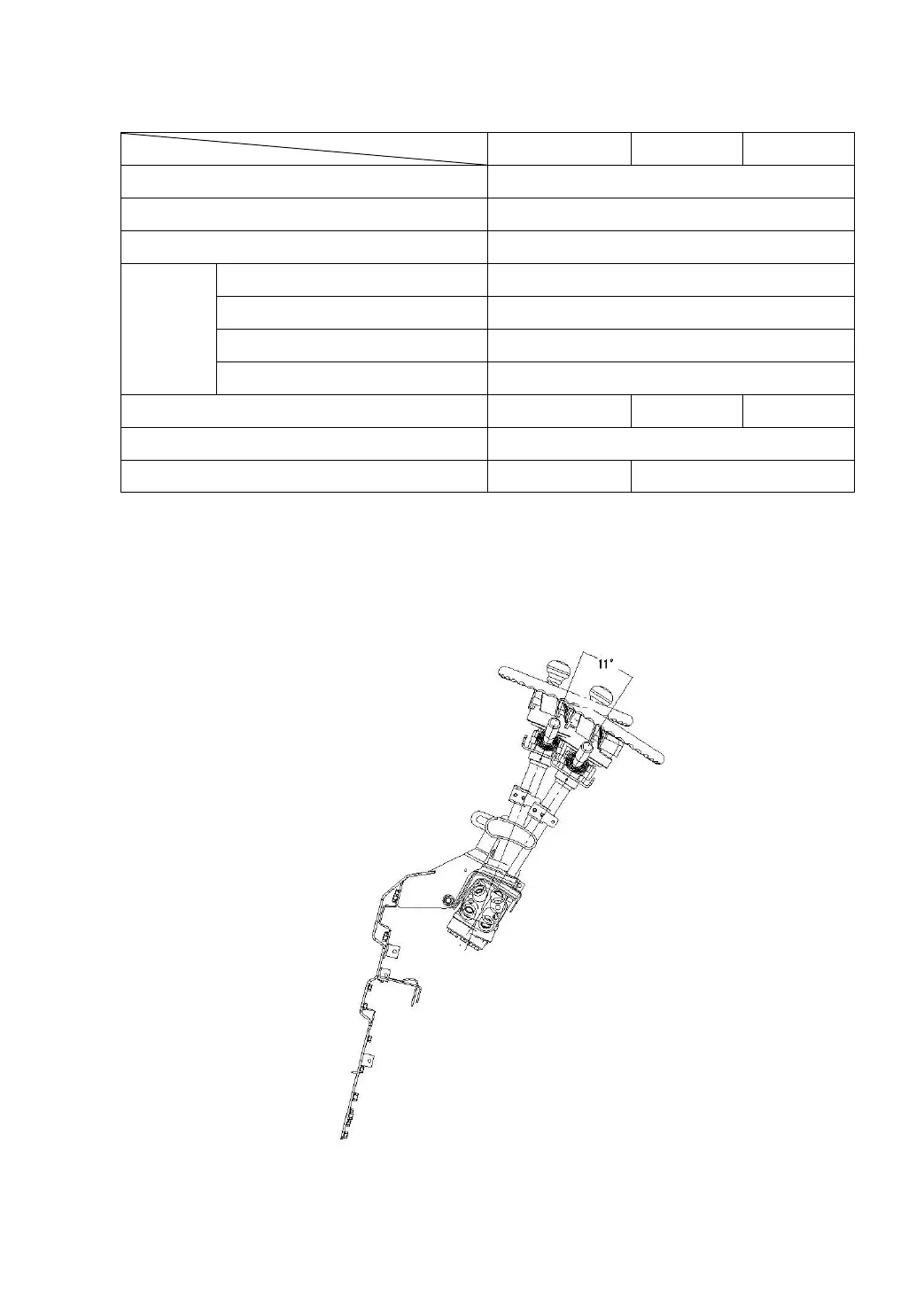

Fig5.1 Steering operation device
