SETTE™ 30 MANUAL
REINSTALLING THE CONE BURR/GRIND ADJUSTMENT ASSEMBLY
1. Align the blue installation/removal indicator on the grind adjustment assembly with the blue installation/
removal indicator on the right side of the machine (g E).
2. Keeping the two blue indicators aligned, gently press up on the grind adjustment assembly and rotate the
black cone burr holder (g F) until the tabs and notches line up and the cone burr holder slides up into the
machine. At this point the cone burr and holder will be inserted into the machine and no longer visible (g
G). For a video tutorial, watch our video on youtube.
3. While applying upward pressure, rotate the grind adjustment assembly as shown (g G) rotating the blue
tab towards the rear of the grinder. The adjustment assembly will click as it properly engages and the black
macro adjustment will be aligned with the 1-31 scale on the machine.

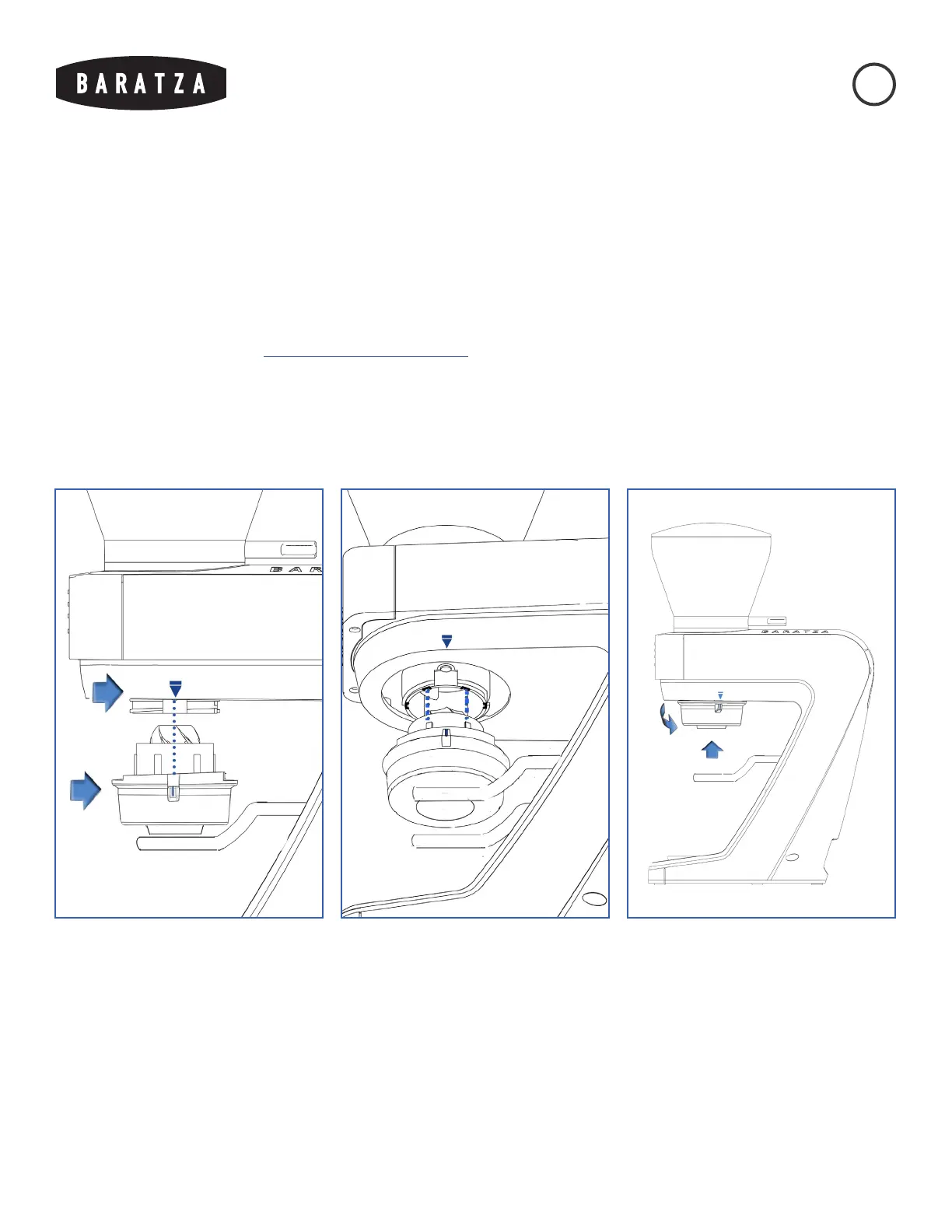

g. E g. F g. G
