5
Bracket
Panel
Gasket
MOUNTING REQUIREMENTS
Select a mounting location with the following
characteristics:
1) Low vibration.
2) An ambient temperature range between 0 and 50 °C
(32 and 122 °F).
3) Easy access to the rear of the instrument.
4) No corrosive gases (sulfuric gas, ammonia, etc.).
5) No water or other fluid (i.e., condensation).
6) A relative humidity of 20 to 85% non-condensing.
The instrument can be mounted on a panel up to 15 mm
(0.591 in) thick with a cutout of 45 x 92 mm (1.772 x 3.622
in) - see outline in “Dimensions and Panel Cutout.”
Panel surface texture must be smoother than 6.3 µm.

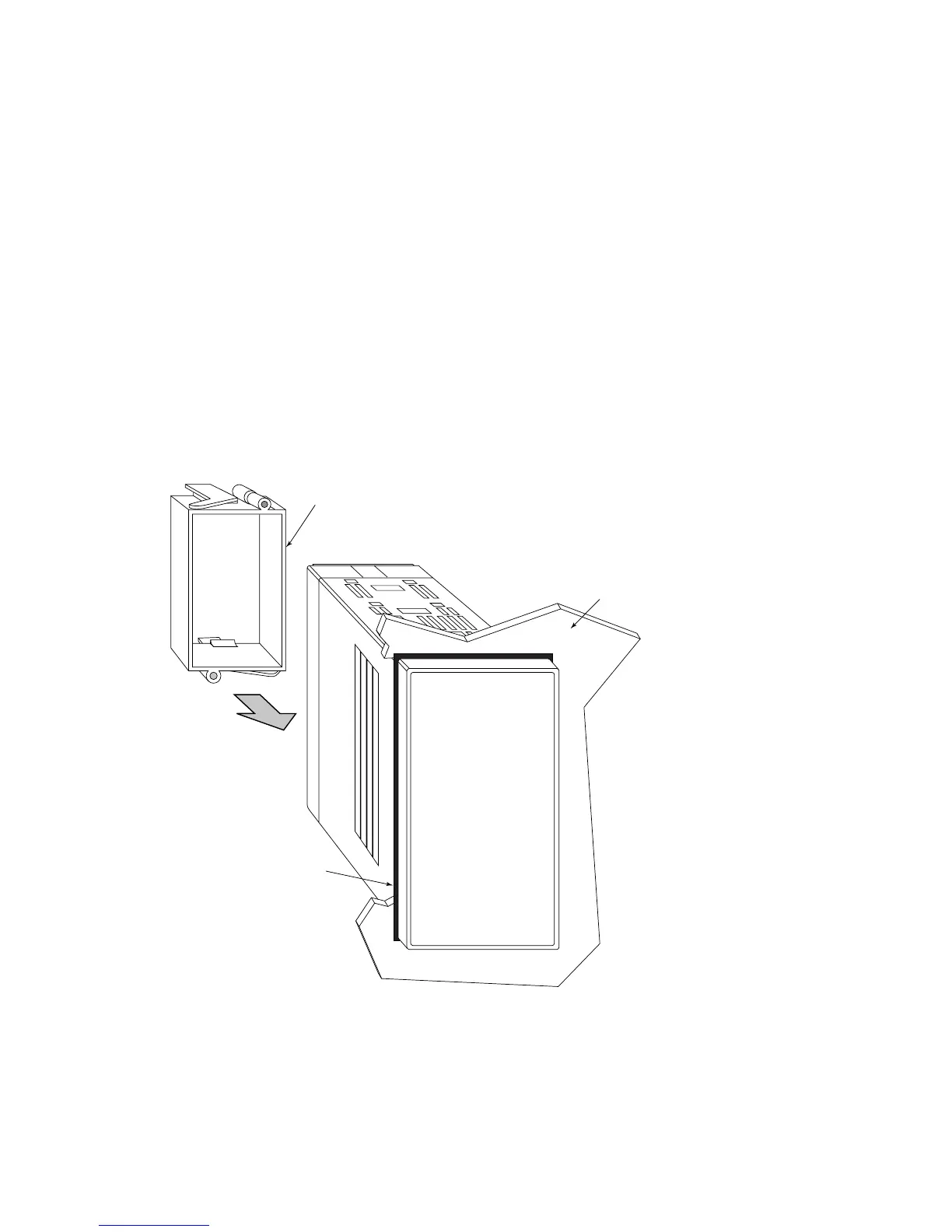

To assure IP65 and NEMA 4X protection, insert the panel
gasket between the instrument and the panel as shown
below.
Install the instrument as follows:
1) Insert the instrument case in the gasket.
2) Insert the instrument in the panel cutout.
3) Pushing the instrument against the panel, insert the
mounting bracket.
4) Torque the mounting bracket screws between 0.3 and
0.4 Nm (0.25 and 0.32 lbin).
5) Make sure the instrument will not move within the
cutout to insure NEMA 4X/IP65 protection.
