1. Safety & Environmental Information
RA Restricted Access location (enclosed projection area).
PR Projector.
TH Theater (observation area).
RZ Restriction Zone.
PD Projection Distance.
SW S eparation Width. Must be m inimum 1 meter.
For this type of setup 3 different HD shall be considered:
HD as discussed in "High Brightness precautions: Hazard Distance (HD)", page 6 , relevant for intrabeam exposure.
•HD
reection
: t he distance that has to be kept r estrictive related to the reected light from the re ar projection screen.
•HD
diffuse
: the relevant distance to be considered while observing the defuse surface of the rear projection screen.
As described in "High Brightness precautions: Hazard D istance (HD)", page 6 , it is ma ndatory to create a restricted zone w ithin
the beam areas closer than any NOHD. In the enclosed projection area the combination of two restricted zones are relevant: The
restricted zone of the projected beam toward the screen; taking into account 1 meter S eparation Width (SW ) from the beam onward.
Combined with the restricted zone related to the rear reection from the s creen (HD
reection
); also taking into acc ount a 1 meter lateral
separation.
The HD
reection
distance equals 25% of the difference between the determined HD distance and the projection distance to the rear
projection screen. To determine the HD distance for the used lens and projector m odel see graphs in chapter "HD in function of
modifying optics", page 8 .
HD
reflection
= 25% (HD PD)
The light emitted from the screen within the observation s hall never exceed the RG 2 exposur
e limit, determined at 10 cm. The
HD
diffuse
can b e neglected if the measur ed light at the sc reen surface is below 5000 cd/m² or 15000 LUX.

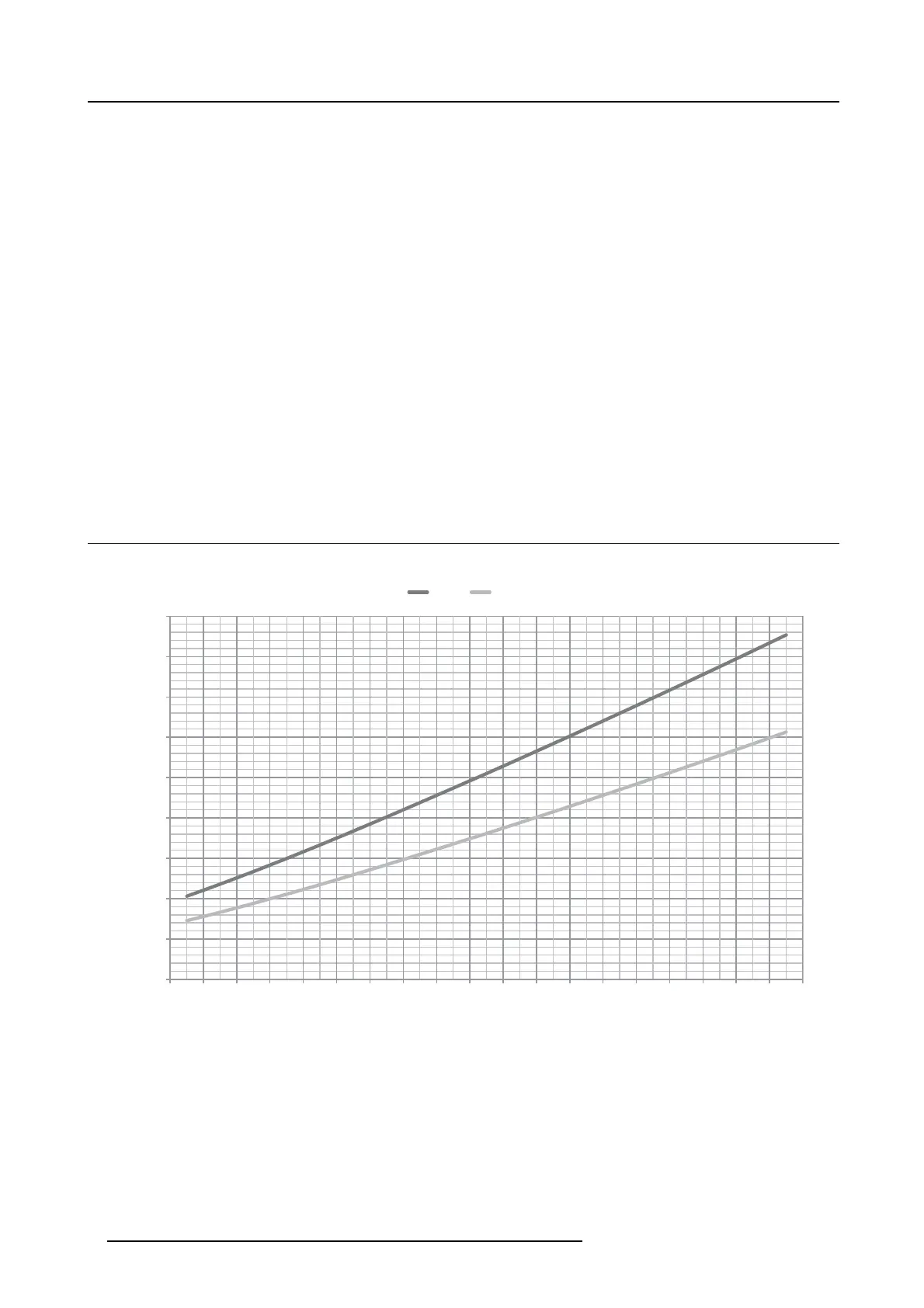

1.6 HD in function of modifying optics
Hazard Distance
0
0,2
0,4
0,6
0,8
1
1,2
1,4
1,6
1,8
1,0 1,2 1,4 1,6 1,8 2,0 2,2 2,4 2,6 2,8 3,0 3,2 3,4 3,6 3,8 4,0 4,2 4,4 4,6
Hazard Distance [m]
Throw Ratio
10SLP 8SLP
Image 1-4
8 R5906846 DP2K-SLP SERIES 11/05/2017
