10.5 Removal of the rear cover
WARNING: This procedure may only be performed by qualified technical service personnel.
Required tools
Flat screwdriver.
How to remove the rear cover from the projector?
1. Release the two captive screws at the bottom corners of the rear cover, using a flat screw driver.

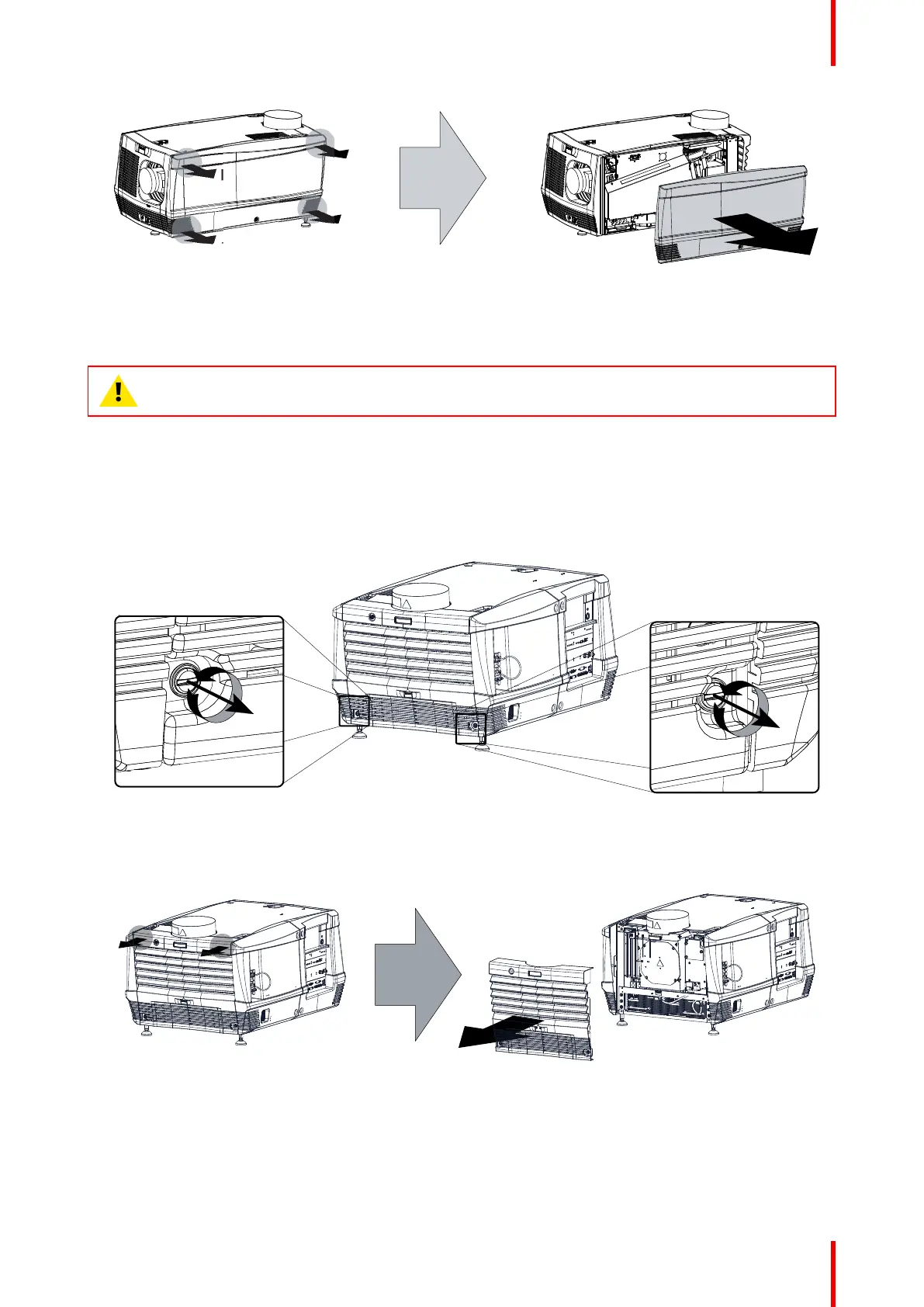

Image 10–9 Release rear cover
2. Remove the rear cover of the projector doing the following:
1. gently pull out the top corners of the rear cover,
2. then move the rear cover away from the projector.
A
A
B
Image 10–10 Remove rear cover
Removal and installation of projector covers
