10.6 Removal of the top cover
WARNING: This procedure may only be performed by qualified technical service personnel.
All side covers, front cover and back cover have to be removed before removing the top cover.
Required tools
Allen key 3mm
How to remove the top cover of the projector?
1. After all side covers, front and back cover are removed, turn all 3 fixation screws.

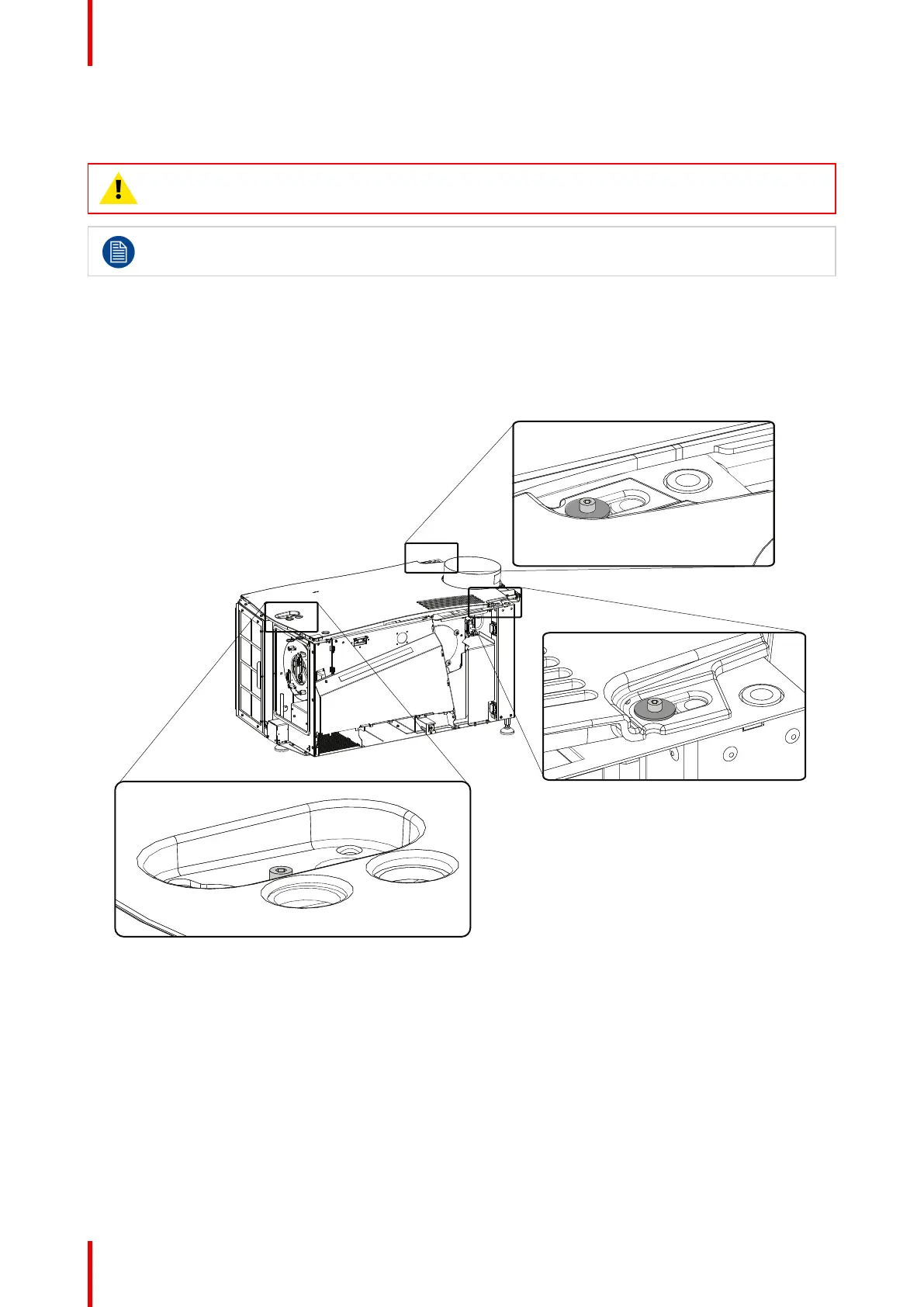

Image 10–11 Top cover removal
2. Left up the top cover and take it off.
Removal and installation of projector covers
