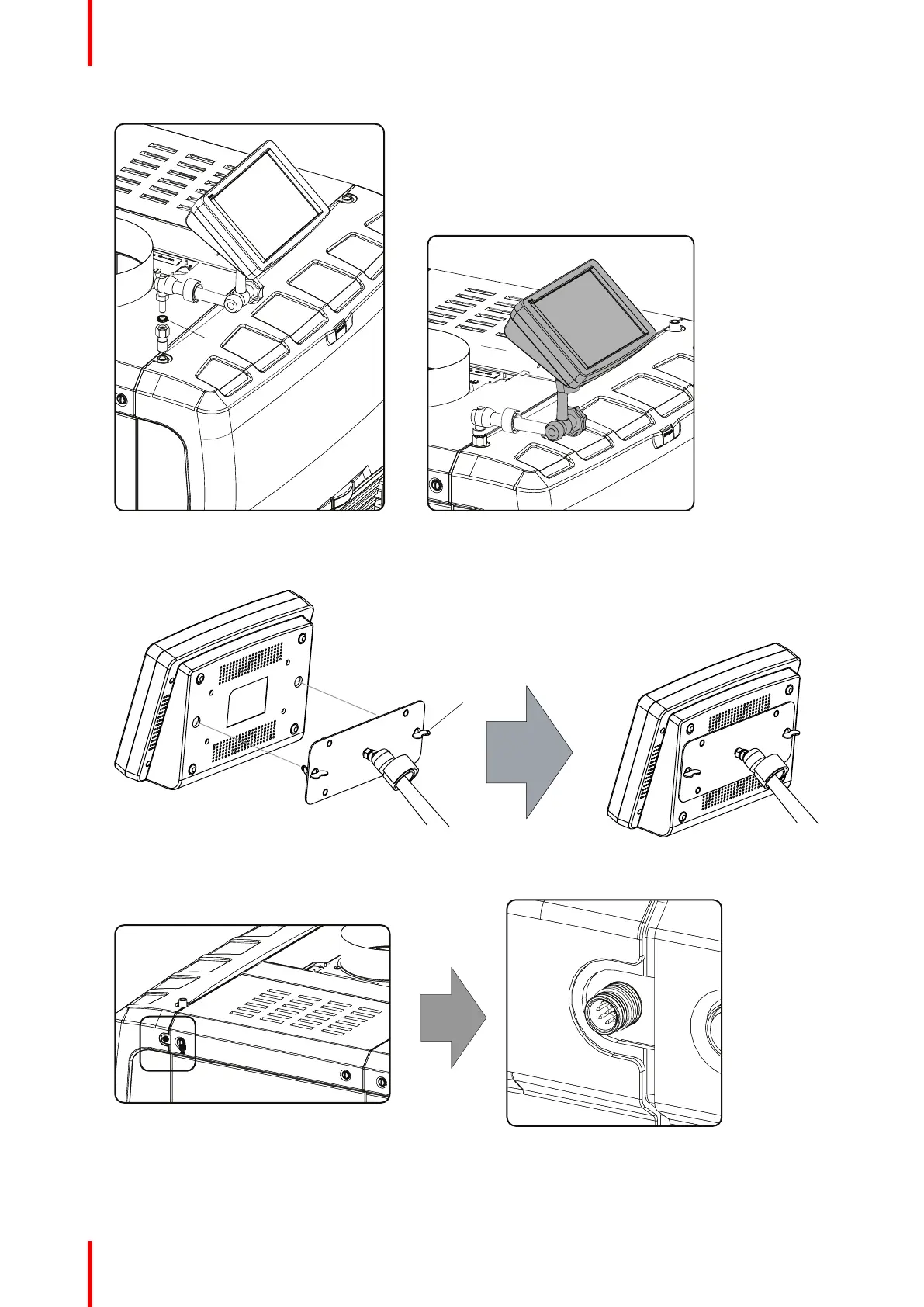

Image 8–4 Mount touch panel Image 8–5 Touch panel mounted
3. Place the touch panel interface on the mounting plate of the swivel arm and fasten the two wing nuts (W)
as illustrated.
W
Image 8–6 Mount touch panel
4. Connect the circular plug of the multi cable with the circular socket at the rear side of the DPxK-19B/23B/P.
Image 8–7
5. Attach the multi cable to the swivel arm using the two Velcro strips.
Communicator Touch Panel

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
