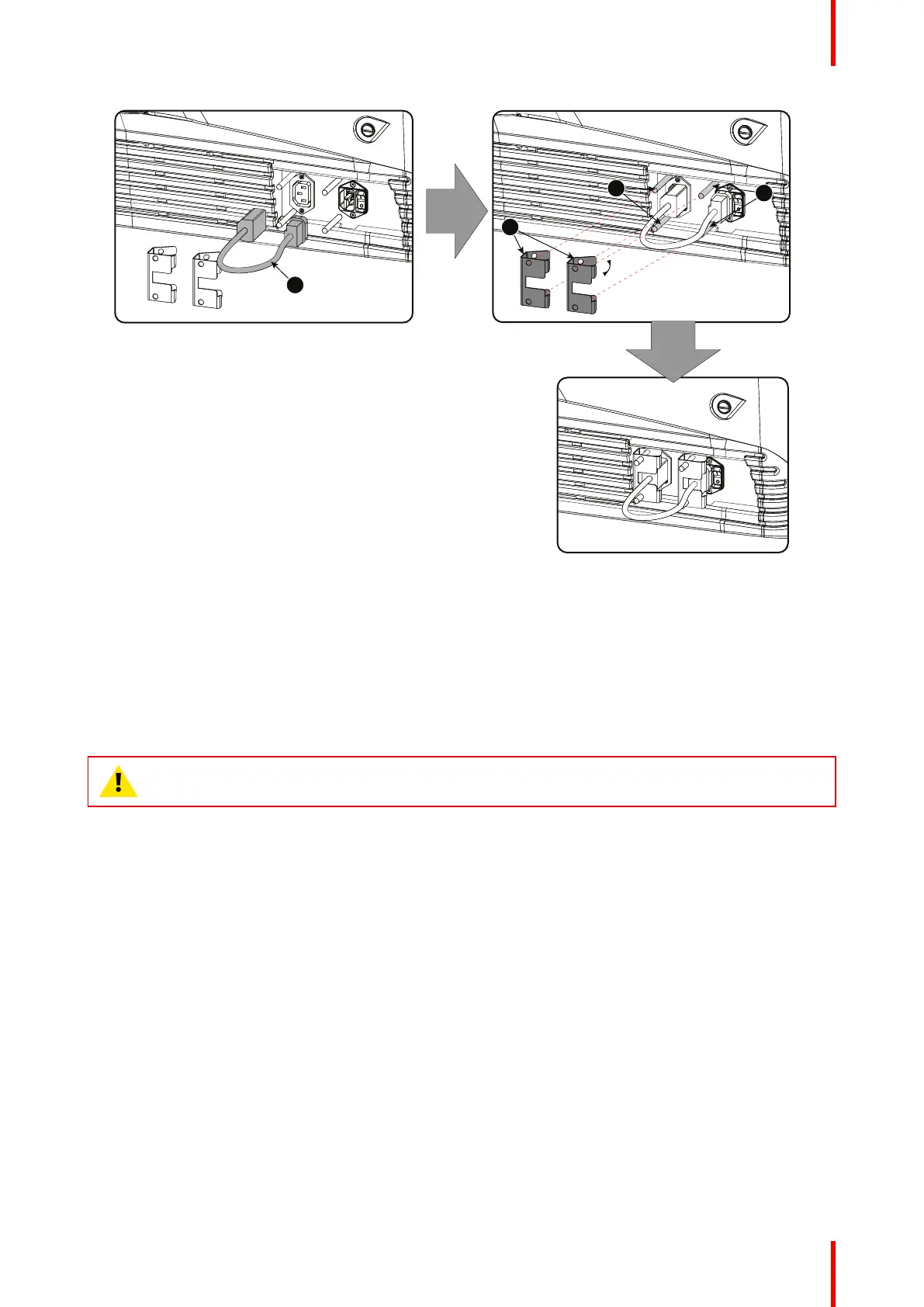

Image 3–11 Power loop through connection
2. Secure both plugs of the short cable with a fixation spring (2). Handle as follow:
• Squeeze the fixation spring together.
• Slide the fixation spring on the fixation pins (3) while squeezing together and push it against the power
plug.
• Release the fixation spring.
3.6 Connecting a UPS to the projector electronics
WARNING: Only use UPS units which are suitable for the DPxK-19B/23B/P. See chapter ”General”,
“Installation requirements” for more information about the requirements of the UPS.
How to connect the UPS
1. Install the UPS according to the instructions of the manufacturer and the local regulations.
2. Connect the power output cord from the UPS unit to the UPS inlet socket of the projector (right socket).
Connect directly (A) or drag the cable behind the front cover so that the front cover can be removed
without removing the UPS INLET cable (B).
Physical installation

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
