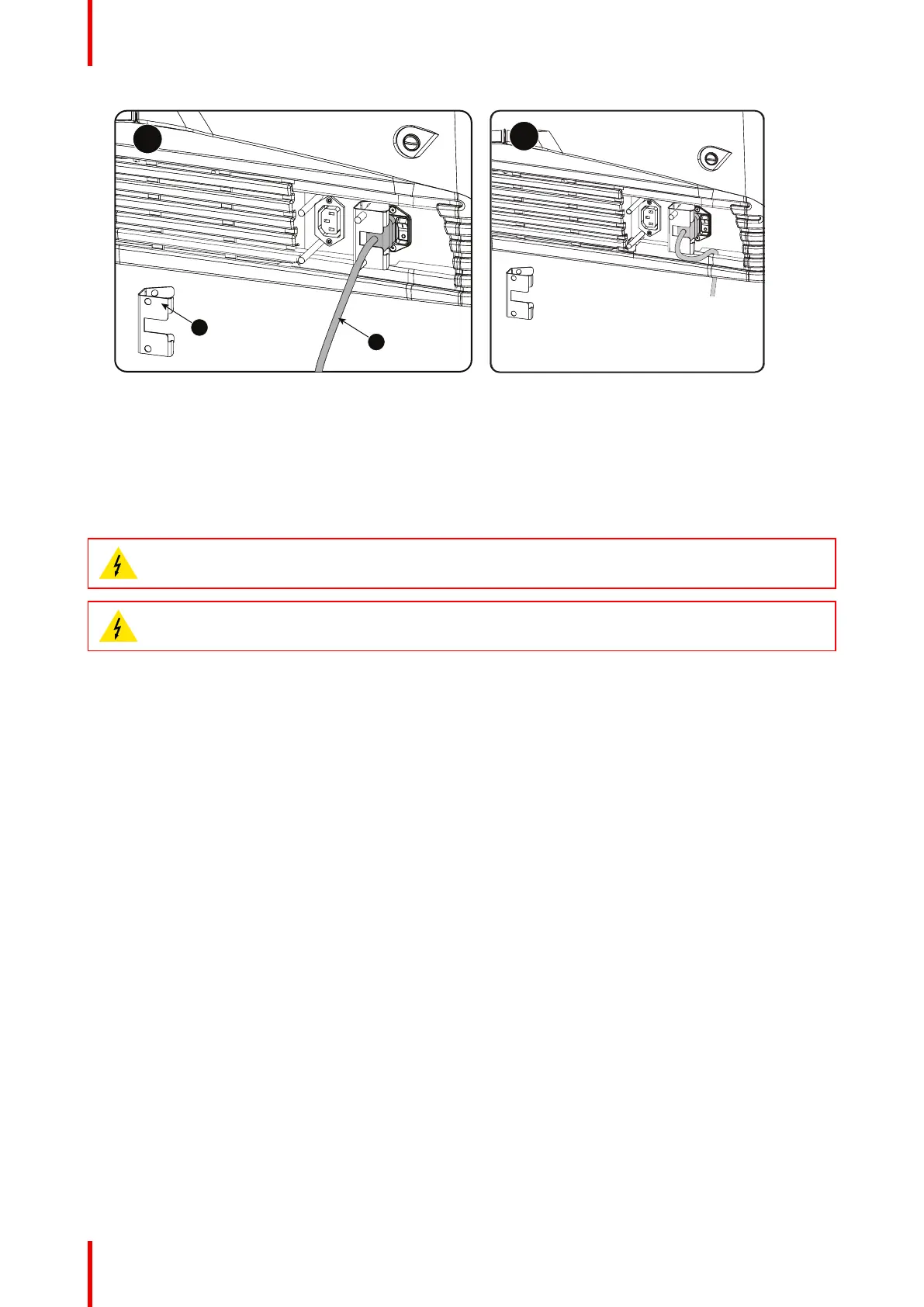

Image 3–12 UPS connection
3. Secure the UPS inlet socket with a fixation spring. Handle as follow:
• Squeeze the fixation spring together.
• Slide the fixation spring on the fixation pins while squeezing together and push it against the power
plug.
• Release the fixation spring.
4. Install on the power outlet the second fixation spring to prevent losing it (2).
CAUTION: The electrical connection with the UPS INLET socket of the projector must be done with
a certified AC power supply cord (minimum 0,75 mm² or 18 AWG and minimum 300V)
CAUTION: Do not use the power OUTLET socket of the projector to provide power to other
equipment!
Physical installation

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
