Barco DP2K-23B User Manual

R5905753 /17 DPxK-19B/23B/P148

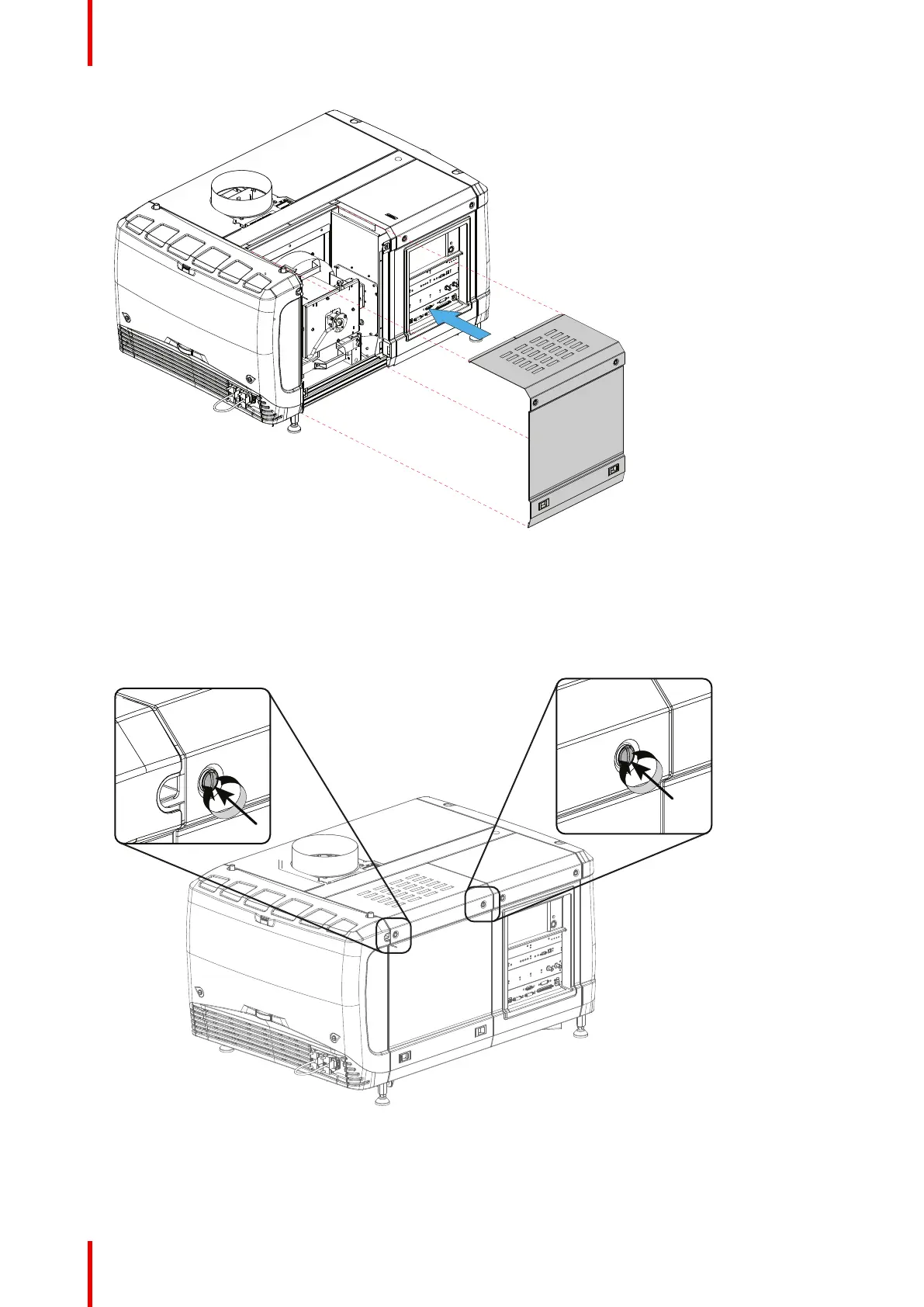

Image 10–17 Mount lamp cover
2. Close the cover as follow:
1. Gently move the bottom side of the cover towards the projector
2. Push both lock to each other and push at the same time the cover against the projector frame.
3. Release both locks so that they lock in their receivers.
3. Secure the cover by fasting both captive screws.
Image 10–18 Secure lamp cover
Removal and installation of the projector covers

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
