Barco DP2K-23B User Manual

33R5905753 /17 DPxK-19B/23B/P
WARNING: The exhaust system must match the duct of the projector seamless. No gap may exist
between the connection of the duct and the exhaust system. This to prevent personal injury due to
the UV light that comes out of the duct of the projector.
Never look into the exhaust output on the top of the projector. High luminance and UV radiation
could result in damage to the eye. The installation of an exhaust system on top of the projector is
mandatory before operating the projector.
CAUTION: If more than one projector is installed in a common projection booth, the above exhaust
air flow requirements are valid for EACH individual projector head exhaust stack. Note that
inadequate air extraction will result in decreased life expectancy of the projector as a whole as well
as causing premature lamp failure.
WARNING: Temperature of exhaust air can approach 100°C.
How to install the Exhaust stack
See illustration below:

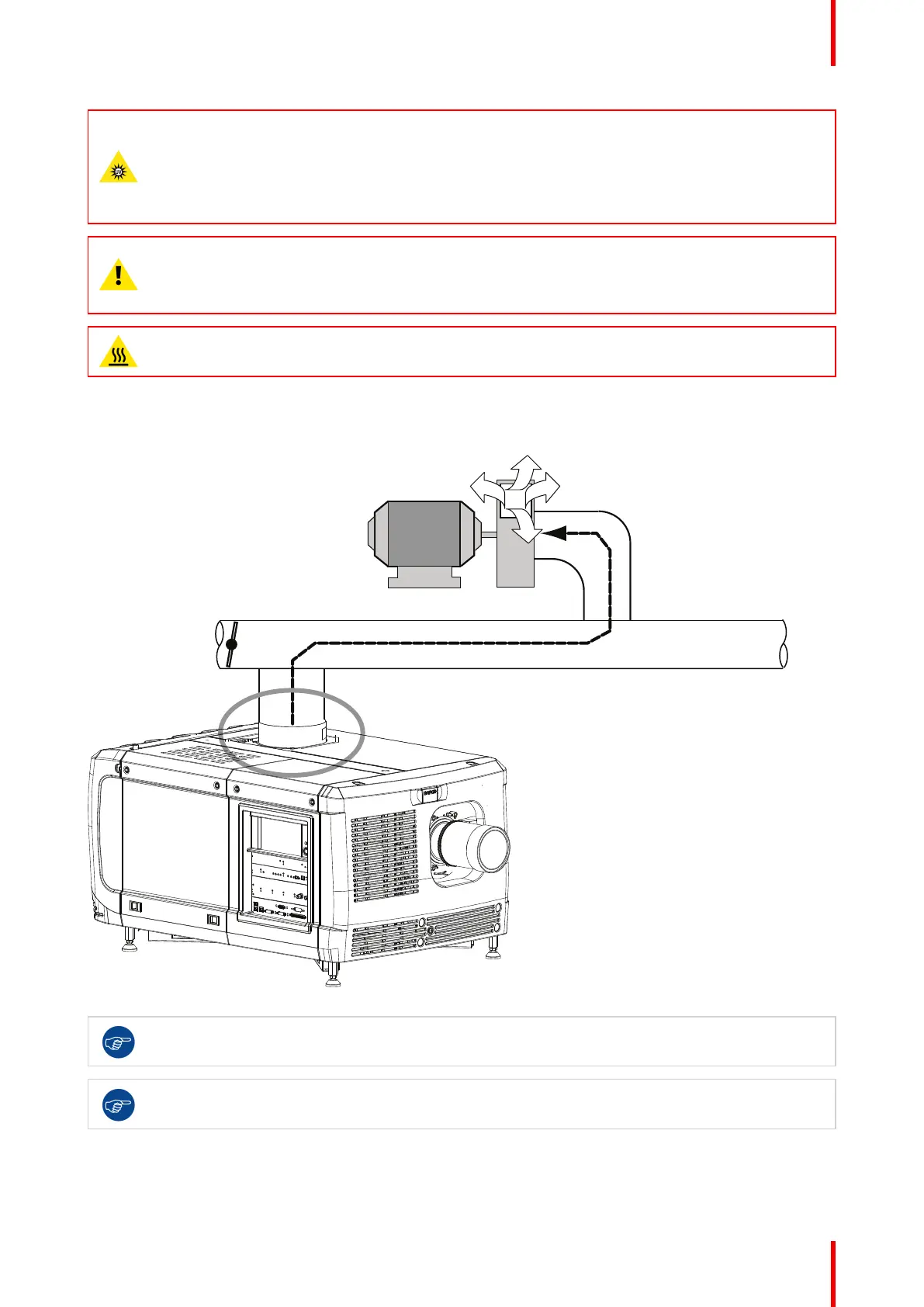

Image 3–5 Exhaust system
Ensure good condition of the lamp house blower. Keep the blower inlet clean for unrestricted air
flow.
To ensure maximum lamp life, operate the lamp house blower and the exhaust system for at least
ten minutes after extinguishing the lamp.
Physical installation

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
