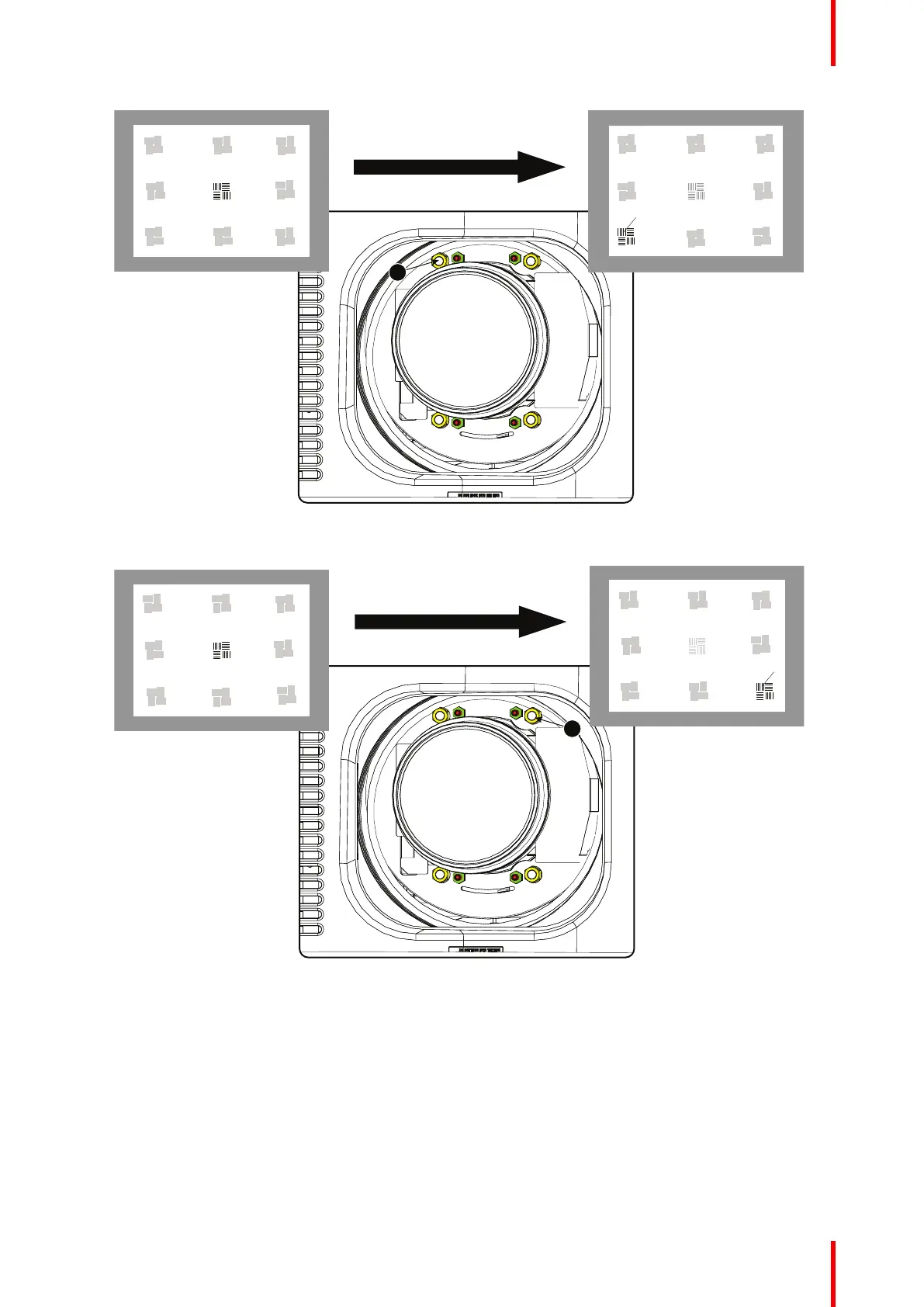

Image 5–26 Left bottom focusing
7. Sharpen bottom right corner of the screen by adjusting nut 2.
2
F
Image 5–27 Right bottom focusing
8. Sharpen top right corner of the screen by adjusting nut 3
