1. DP4K-L series accessory kit
4
Image 1-10

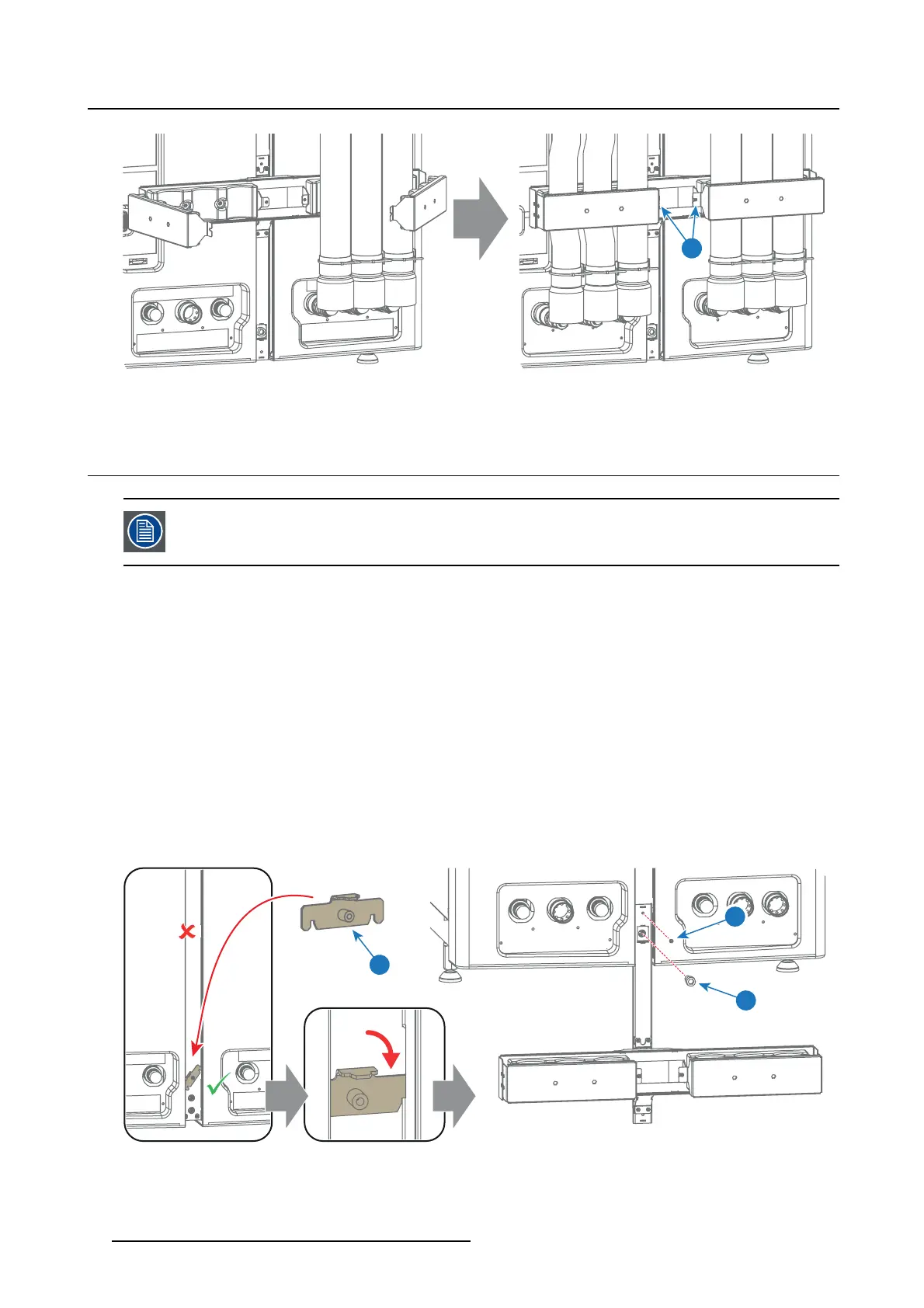

1.5 Insta lling the supp ort frame for ho ses d ownwards
This procedure assumes that the hoses are not ye t connected with
the proje ctor. If con-
nected, disconnect the hoses prior to start with this procedure.
Necessary tools
•3mmAllenwrench
• 10mm Allen wrench
How to install t he support frame for hoses g oing downwards?
1. Slide and rotate the mounting hook (reference 1 image 1-11) into the lower slot at the rear side of the
projector as illustrated.
Note: The mounting hook is pre-mounted on the bracket of the s
upport frame. So, the mounting hook
is to be removed from the bracket first.
2. Place the support frame into position as illustrated. Ensure that the slot at the top side of the support
frame is captured by the mounting hook.
3. Fasten the mounting hook with a small screw (reference 3 image 1-11) and a large screw (reference 2
image 1-11) as illustrated. Use for that a 3mm Allen w
rench and a 10mm Allen wrench.
1
L
R
2
3
Image 1-11
8 R5905882 DP4K-L ACCESSORY KIT 06/09/2017
