Barco DP4K-L Series User Manual

1. DP4K-L series accessory kit

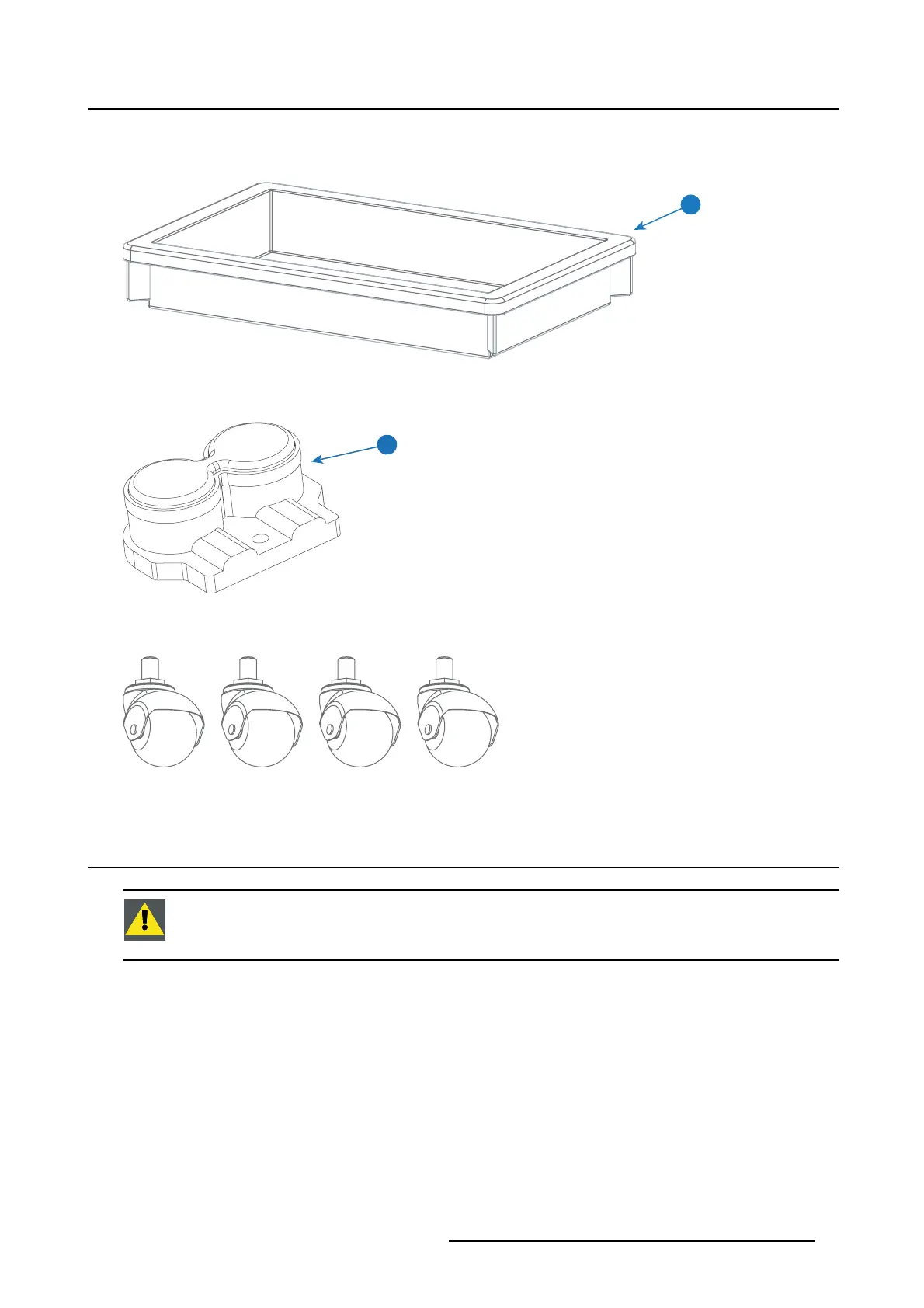

• Plastic catch basin to collect condensed water of projector (1 piece for DP4K-22L or DP4K-30L and 2
pieces for DP4K-45L or DP4K-60L, reference 9 image 1-4).
9
Image 1-4
• Dummy sealing block (1 piece for DP4K-22L or DP4K-30L, reference 10 image 1-5).
10
Image 1-5
• Castor wheels (4 pieces per chiller)
Image 1-6
1.2 Installation process
WARNING: This procedure assumes that the projector and chillers are switched off. If
not, switch off the projector and chillers prior to start with the installation of this acces-
sory kit.
Process overview
1. Installing the chiller sta
cking brackets. See installation manual of the chiller.
2. "Assembling the support frame", page 6
3. "Installing the support frame for hoses upwards", page 7
or
"Installing the support frame for hoses downwards", page 8 .
4. "Installing insulation shells projector side hoses upwards", page 9
or
"Installing insulation shells projector side hoses downwards", page 10
5. "Installing insulation shells on the chiller side", page 11
R5905882 DP4K-L ACCESSORY KIT 06/09/2017
5
