Manual 2100-746D
Page 31 of 59
Triples: Simultaneous Unit Operation
See Figure 15.
Using groups of three for the purpose of staging can
give the end user even tighter temperature control.
• Triples – Only available with six units. Units will
operate in sets of three.

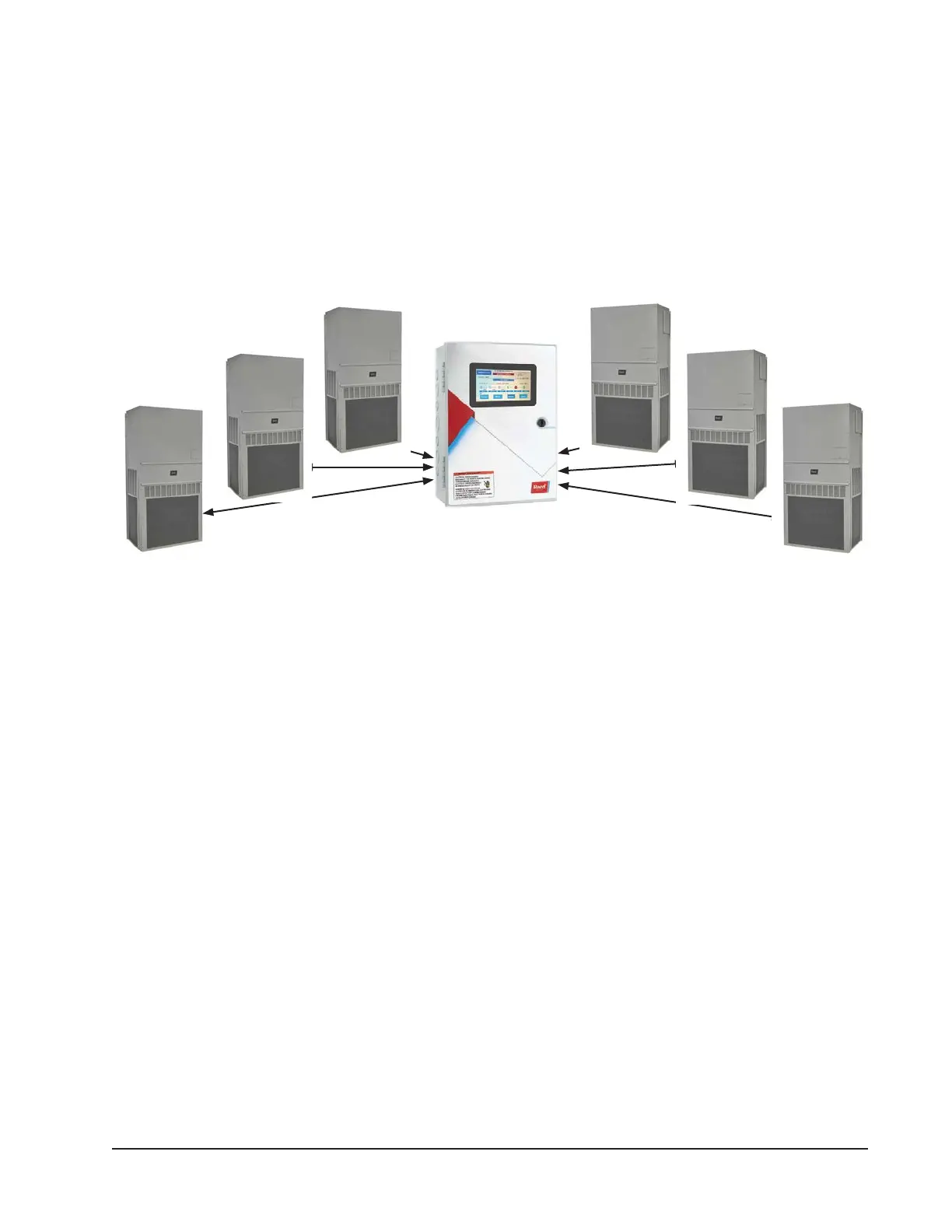

FIGURE 15
Triples: Simultaneous Unit Operation
STAGE
1
Using groups of three can reduce the number of stages and maintain a tighter temperature band. With the twinning option,
the user can select All, Pairs or Triples.
NOTE: All units connected in "home run" configuration only.
STAGE
1
STAGE
1
STAGE
2
STAGE
2
STAGE
2
• Units will stage simultaneously in sets of three.
Units 1, 2 and 3 will be one set and units 4, 5 and
6 will be the second set.
• Lead would be units 1, 2, 3 & 4, 5, 6. Lead will
still rotate one unit at a time. When a unit in the
group is lead, that group is lead.
