Motor Housing

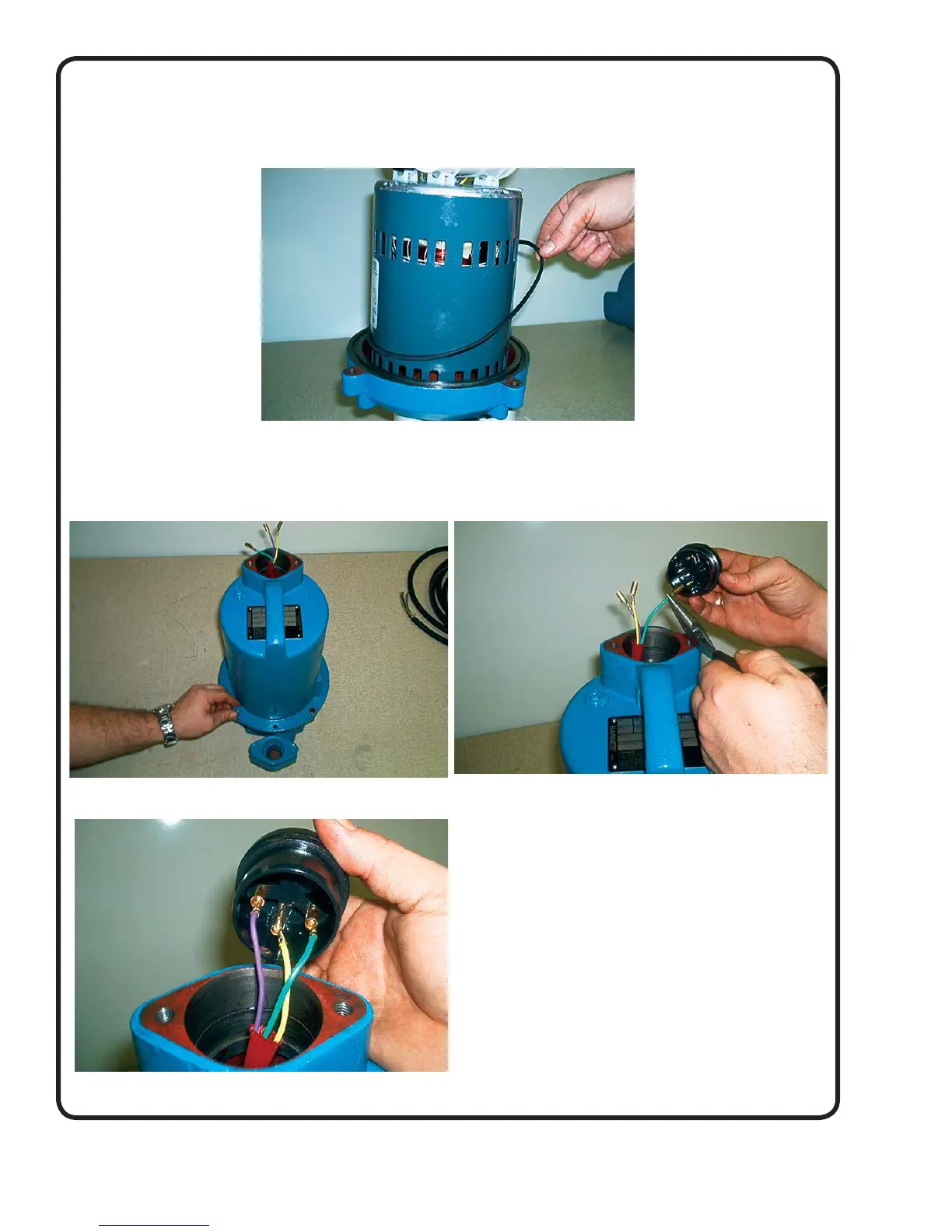

Lubricate and set square ring into bore on intermediate coupling.
Install ground wire in end bell if removed (Use proper bolt to secure ground lug). Place fi berglass
sleeve over motor and ground leads if removed. Pull wires through opening in top of motor housing while
lowering motor housing onto seal plate. Connect wires to pins on the bottom of the terminal block.
NOTE: See wiring diagram on page 30.
