Moveable Alignment

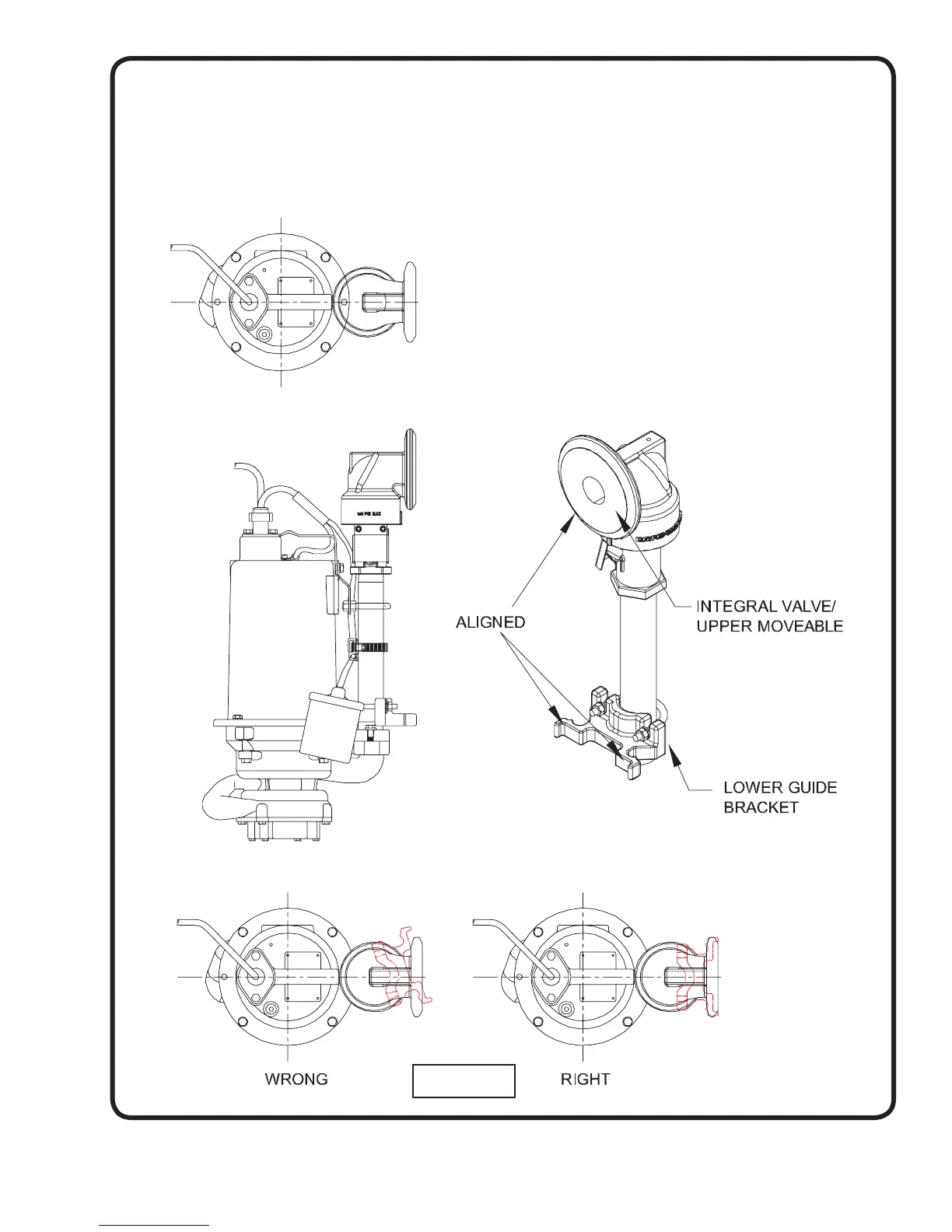

To prevent the moveable from leaking, make a visual check from the face of the moveable to the lower
pump bracket. The face of the moveable needs to be parallel to the lower pump bracket. When assembled
on the pump, the moveable face will be perpendicular to the centerline of the pump discharge.
Figure
Figure
A
A
