Barnstead 30400 - Single Setpoint Models with OTP; Basic Operation; Buttons and Indicators

13

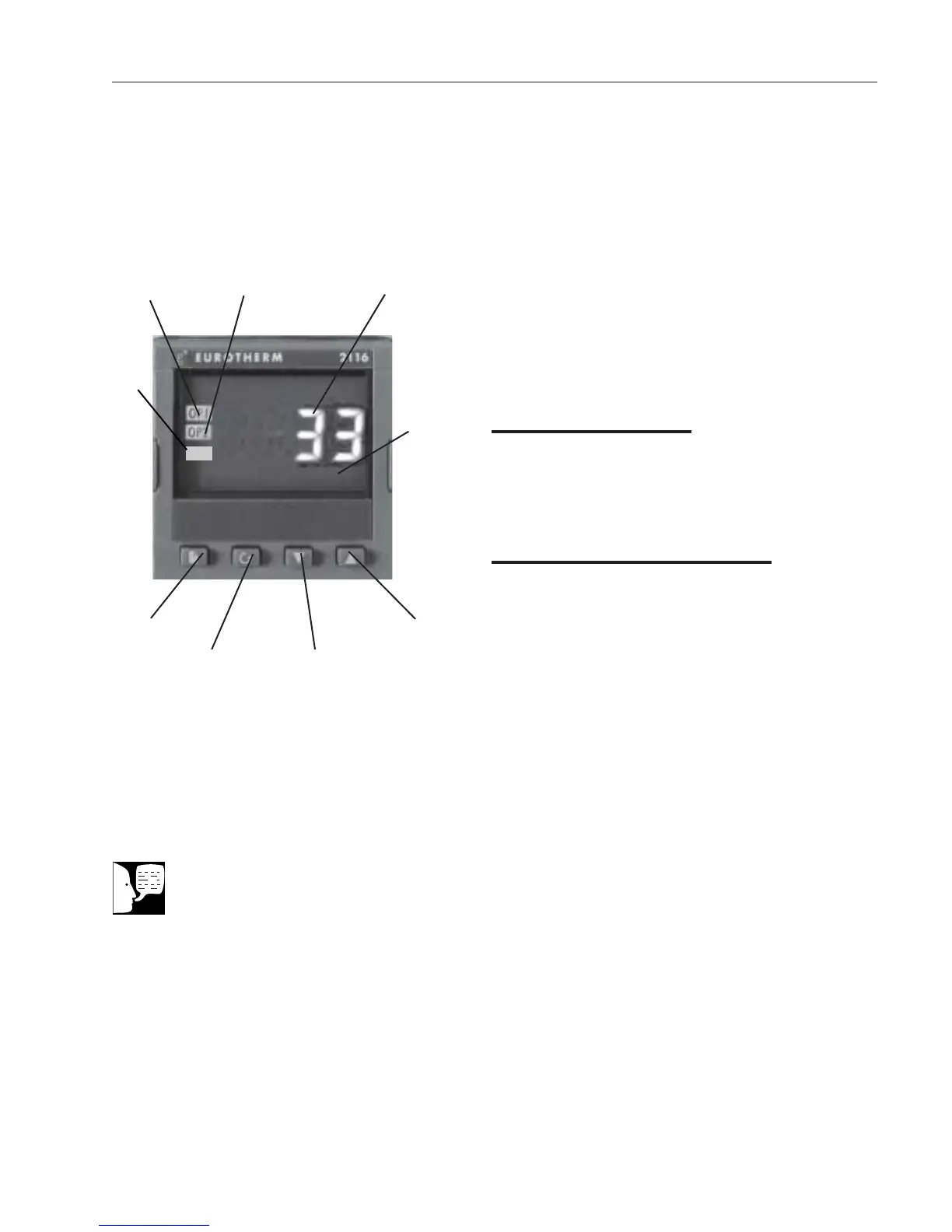

Single Setpoint Models
Output 1
Manual
UP ARROW
Button
Temperature
Display
Display
Window
DOWN ARROW
Button
PAGE
Button
SCROLL
Button
Output 2
MAN
Single Setpoint Models w/OTP
Note
If at any time you want to return to the
HOME DISPLAY, simultaneously press
the PAGE and SCROLL buttons.
The single setpoint model w/ OTP furnace controller
is a single setpoint controller which provides a single
digital display to indicate the current chamber tempera-
ture or setpoint temperature. This temperature con-
troller features sensor break protection, self-tuning
capability and over temperature protection (OTP) with
an additional OTP relay device.
Basic Operation
When the controller is turned ON it will perform a short
self-test and then display the measured value (process
value) in the HOME DISPLAY.
Buttons and Indicators
OP1 (Output 1): Illuminates when the logic output is
ON.
OP2 (Output 2): Illuminates when the relay output is
ON (will go out during an alarm situation).
PAGE button: Allows you to select a new list of
parameters.
SCROLL button: Allows you to select a parameter
within a list of parameters.
DOWN button: Allows you to decrease a value.
UP button: Allows you to increase a value.
