Maximum Concurrent Valves

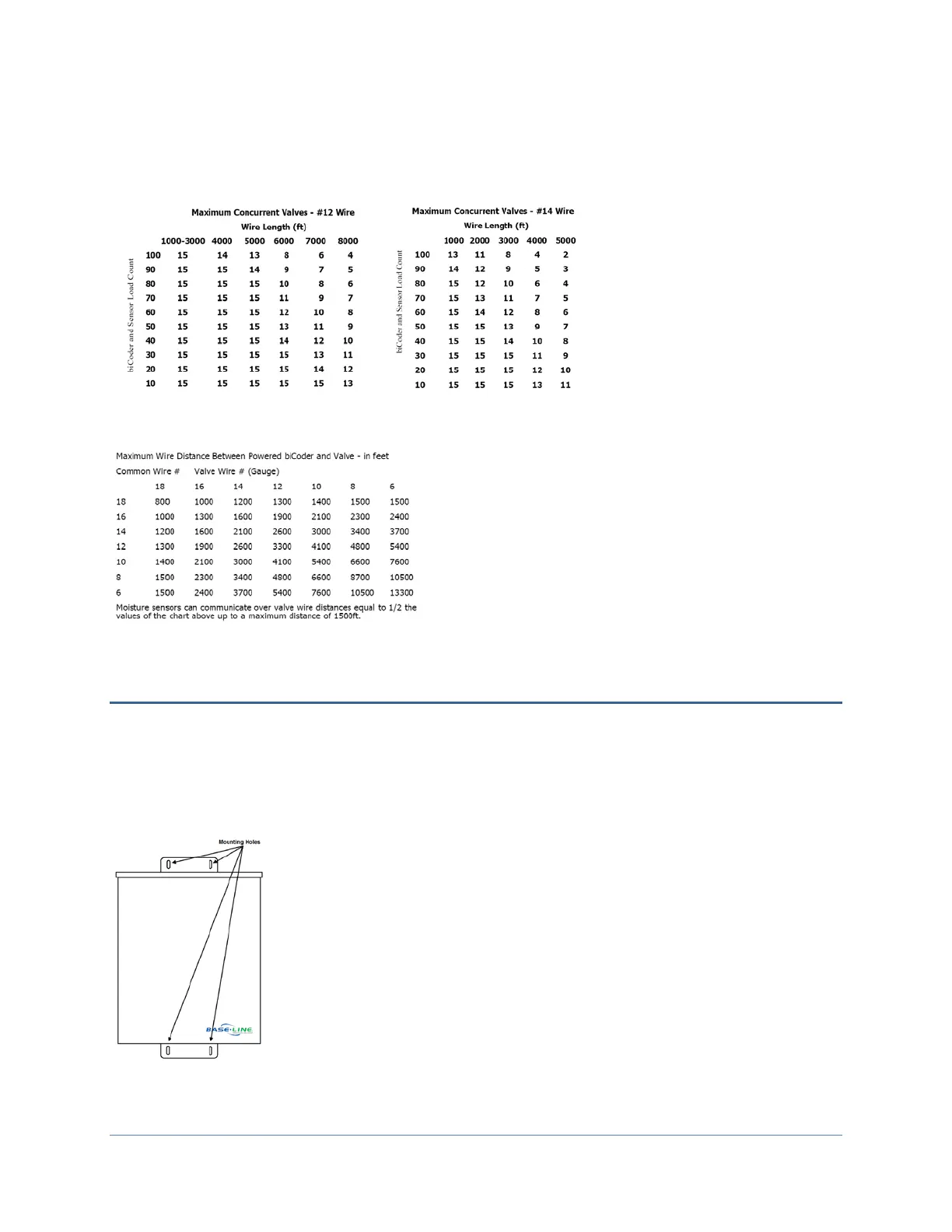

The maximum number of concurrently operating valves is shown in the two tables below. The number of
concurrent valves varies based on the total load count and wire length to the farthest device:
Maximum Wire Distances for 3200R and 5200R Series biCoders
Installing the BaseStation 3200 Enclosure
This section covers the basic installation of the various enclosures for the BaseStation 3200 controller.
C-series Wall Mount Cabinets
The C-series wall mount cabinet is designed for outdoor or indoor wall or pole mounting. The cabinet features four
screw or bolt mounting holes on tabs above and below the controller chassis as shown below:
The screw holes are approximately ¼ inch x 1/3 inch, and are located 3 inches apart.
If you mount the cabinet outdoors on a pole or post, make sure that the location does
not receive direct spray from sprinkler heads or other water sources.
For detailed dimensions and installation drawings, please visit the Resource Library on
the Baseline web site.
