BaseStation 3200 Advanced Irrigation Controller Manual
Page 34
On-Screen Help
At the bottom of every screen, there are instructions that describe how to
use the buttons to change the functions associated with that screen.
The instructions on the screen change depending on the functions and
control requirements.

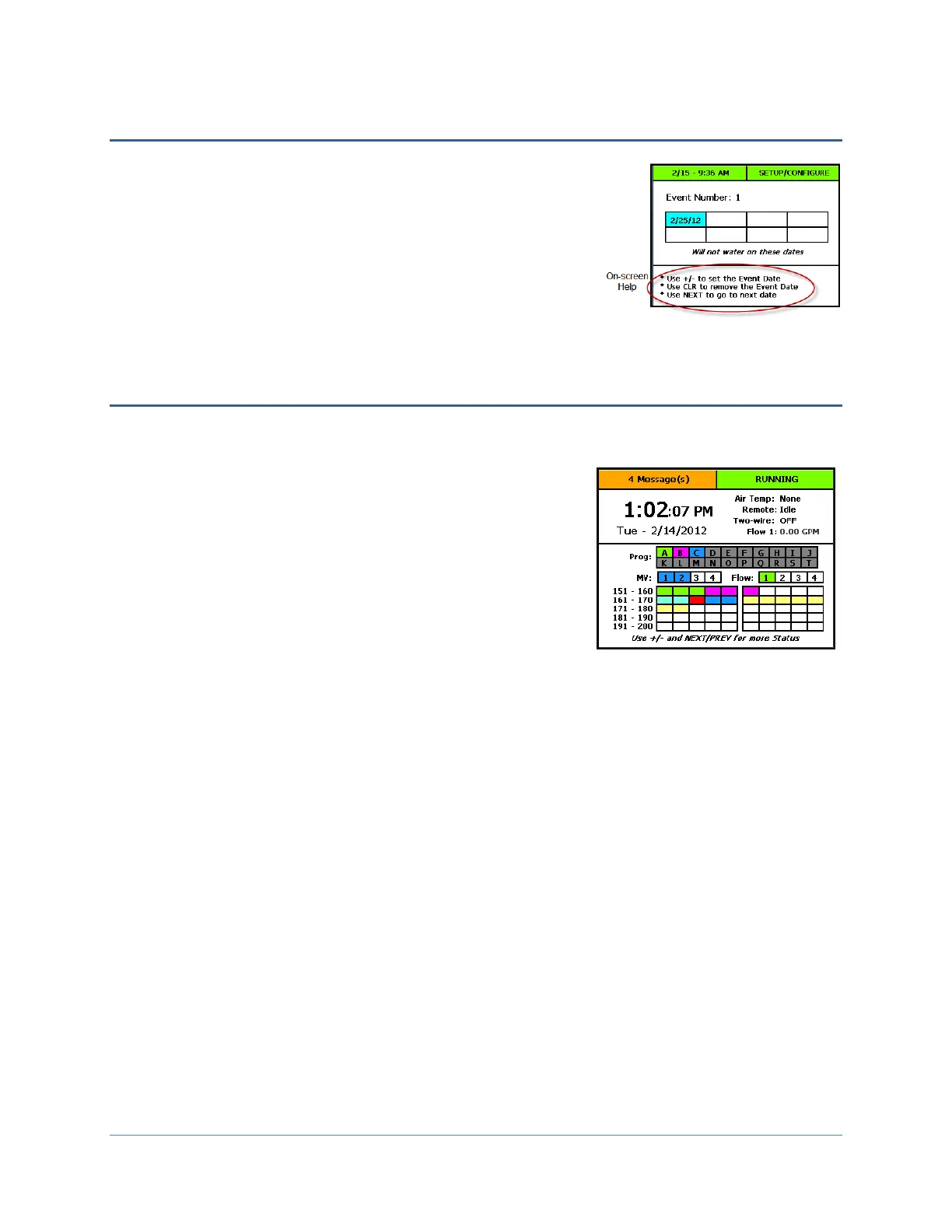

Auto Run Main Screen
The main screen displays when the dial is in the Auto Run position. This screen shows status for all elements of the
3200 controller.
Air Temp – Shows “None” if no air temperature sensor is connected to
the system, otherwise shows the current air temperature.
Remote – Indicates the status of remote communications to the 3200.
Possible indicators include:
• None – No remote communication devices were detected.
• Idle – One or more remote communication devices were detected,
but none are in use at this time.
• BL Commander – A BL Commander remote control is currently active.
• Active – BaseManager central control software is currently connected to and communicating with the
controller.
Two-wire – Indicates the approximate current being supplied to the two-wire path. The value will vary with the
size of the installation and the number of active valves. When the system is not watering, the two-wire status is
OFF.
Flow – If there is no flow meter installed, the controller shows the estimated flow (in brackets) based on the flow
values that have been set for each zone. With one or more flow meters, the controller indicates the total flow
measured. This value is updated once each minute, and is shown without brackets. More detail is available in the
flow reports.
Prog – Shows the status of all programs. Refer to the status color key on the label inside the door of the controller.
MV – Shows the status of each master valve.
Zone Status – The lower section shows the current status of the zones in groups of 50 zones. Press the + or –
button to move between the groups 50 zones.
