BaseStation 3200 Advanced Irrigation Controller Manual
Page 21
Connecting to BL-5200R Series Wall Mount biCoders
Baseline 5200R Series Powered biCoders are specifically intended for retrofit applications and make combining
several old controllers into a single BaseStation 3200 easy and affordable.

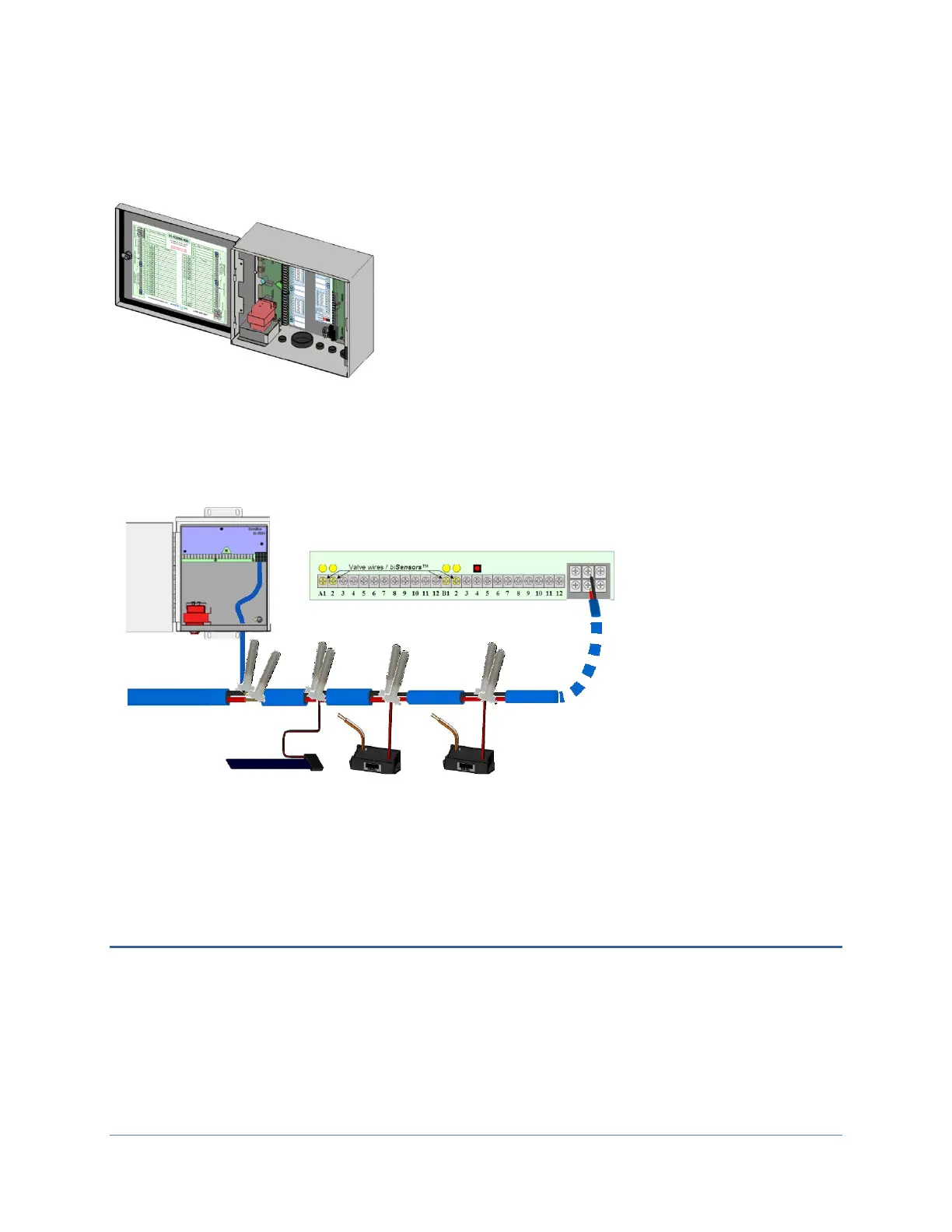

BL-5200X-R48 – 48 Zone Wall Mount biCoder in X-Series Cabinet
5200R Series Powered biCoders require 110 VAC power (240 VAC for –INT versions) and are available in C-series
and X/XS-series wall mount cabinets, or P-series pedestals.
Example Wiring Diagram
You can connect up to 20 5200R Series Powered biCoders to a single BaseStation 3200, which enables you to
retrofit a large site with multiple controllers into a single BaseStation 3200 controller.
Two-Wire Installation
All BaseStation 3200 and 3200R controllers are equipped with a full-function two-wire port capable of connecting
to valve biCoders, powered retrofit biCoders, biSensors, flow meters, and other devices. Because Baseline’s biLine
protocol provides full bidirectional communications, you can connect all your irrigation accessories to the same
two-wire path – saving time and money compared to conventional wiring.
