Base Line BaseStation 3200 - Expanding with Two-Wire

BaseStation 3200 Advanced Irrigation Controller Manual
Page 20
BL-5200 Series Powered biCoder Wiring Example with One biSensor
Expanding with Two-Wire
All BaseStation 3200 controllers are capable of communicating with Baseline biCoders and biSensors connected to
a two-wire path. Any supported two-wire devices may be connected.

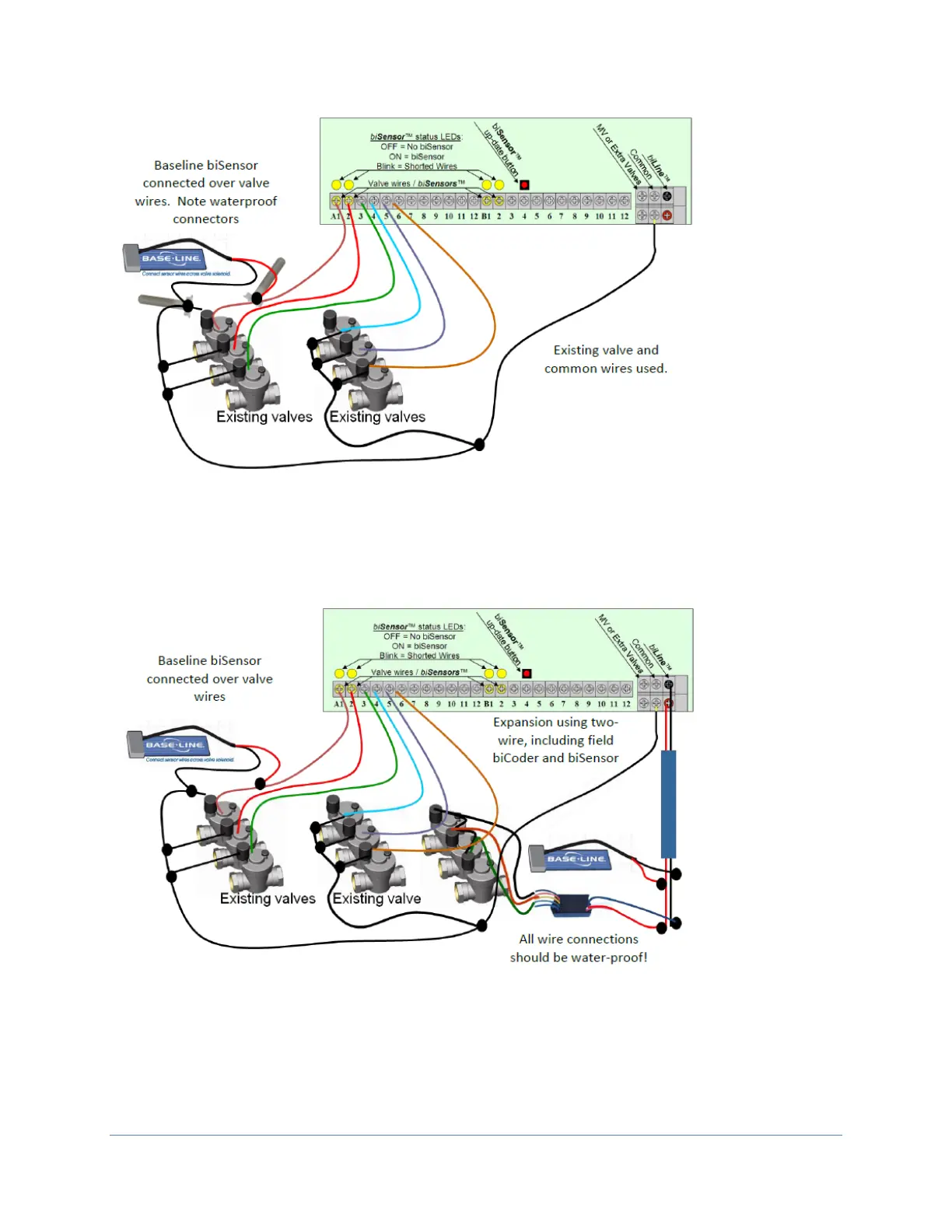

Two-Wire Expansion Example
