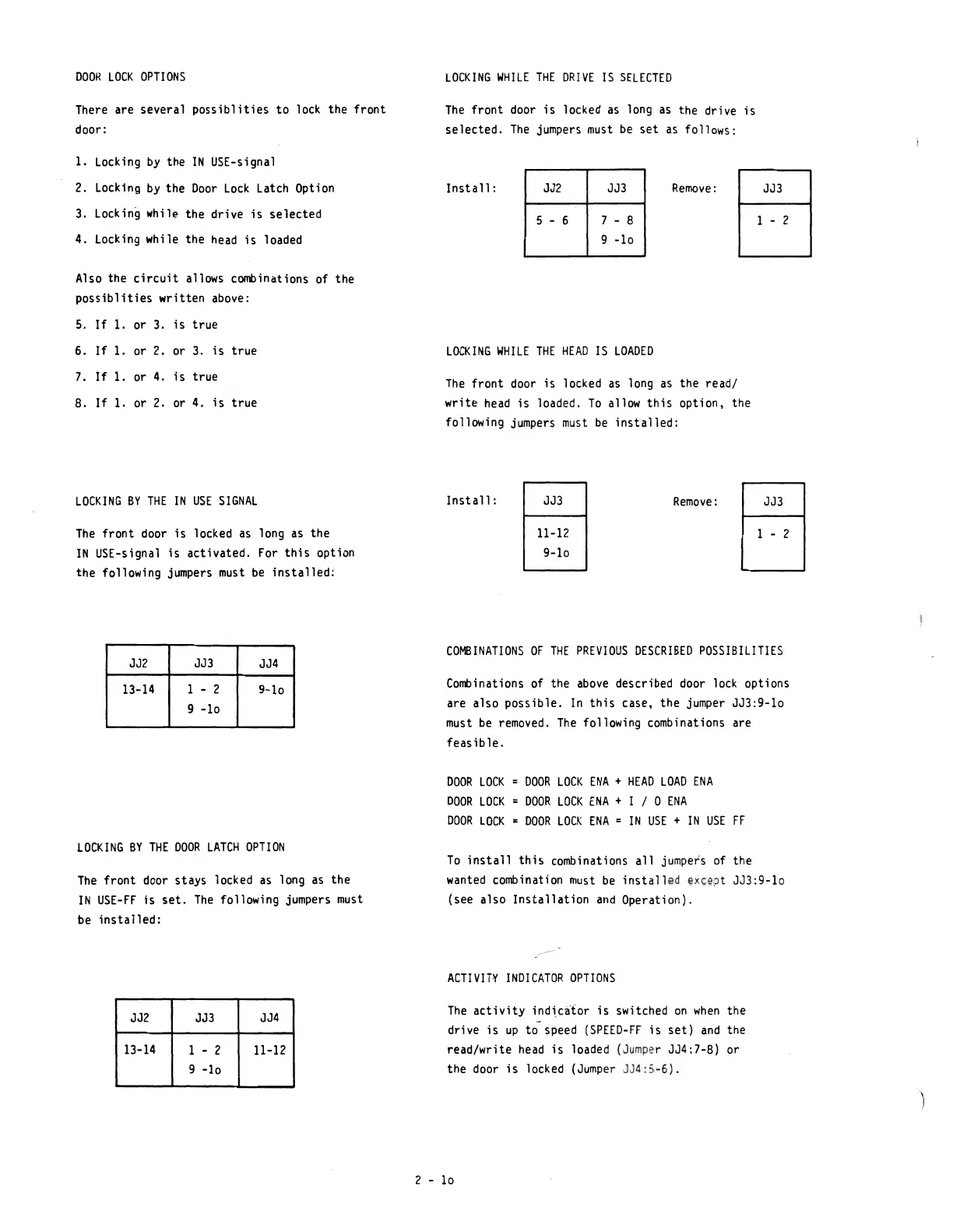

BASF 6106 - Page 26

OOOR LOCK OPTIONS
There are several possiblities to lock the front
door:
1.
Locking by the IN USE-signal
2. Locking by the Ooor Lock Latch Option
3. Locking while the drive is selected
4. Locking while the head is loaded
Also the circuit allows combinations of the
possiblities written above:
5. If l. or 3.
is
true
6.
If l.
or
2.
or
3. is true
7. If l. or
4. is
true
8. Ifl. or
2. or 4. is true
LOCKING SV THE IN USE SIGNAL
The front door is locked as long as the
IN USE-signal is activated. For this option
the following jumpers
must be installed:
JJ2 JJ3
JJ4
13-14 1 - 2
9-10
9 -10
LOCKING BV THE OOOR LATCH OPTION
The front door stays locked as long as the
IN USE-FF is set. The following jumpers must
be installed:
JJ2 JJ3
JJ4
13-14
1 - 2
11-12
9 -10
LOCKING WHILE THE DRIVE IS SELECTED
The front door is locked as long as the drive is
selected. The jumpers must be set as follows:
Install: JJ2 JJ3
5 - 6
7 - 8
9 -10
LOCKING WHILE THE HEAD IS LOADED
Remove:
~
LJ
The front door is locked as long as the read/
write
head is loaded. To allow this option, the
following jumpers
must be installed:
Install :
JJ3
11-12
9-10
Remove:
~
LJ
COMBINATIONS OF THE PREVIOUS OESCRIBED POSSIBILITIES
Combinations of the above described door lock options
are also possible.
In this case, the jumper JJ3:9-10
must be removed. The following combinations are
feasible.
OOOR LOCK OOOR LOCK ENA + HEAO LOAD ENA
OOOR LOCK OOOR LOCK ENA + I / 0 ENA
DOOR LOCK = OOOR LOCK ENA = IN USE + IN USE FF
To install this combinations all jumpers of the
wanted combination must be installed except JJ3:9-10
(see also
Installation and Operation).
ACTIVITY INDICATOR OPTIONS
The act i vity indiccltor i s switched on when the
drive
is up to speed (SPEED-FF is set) and the
read/write
head is loaded (Jumper JJ4:7-8) or
the door
is locked (Jumper JJ4:5-6).
2 - 10
\,
