1-8 BE1-32R, BE1-32O/U General Information 9171100990 Rev R

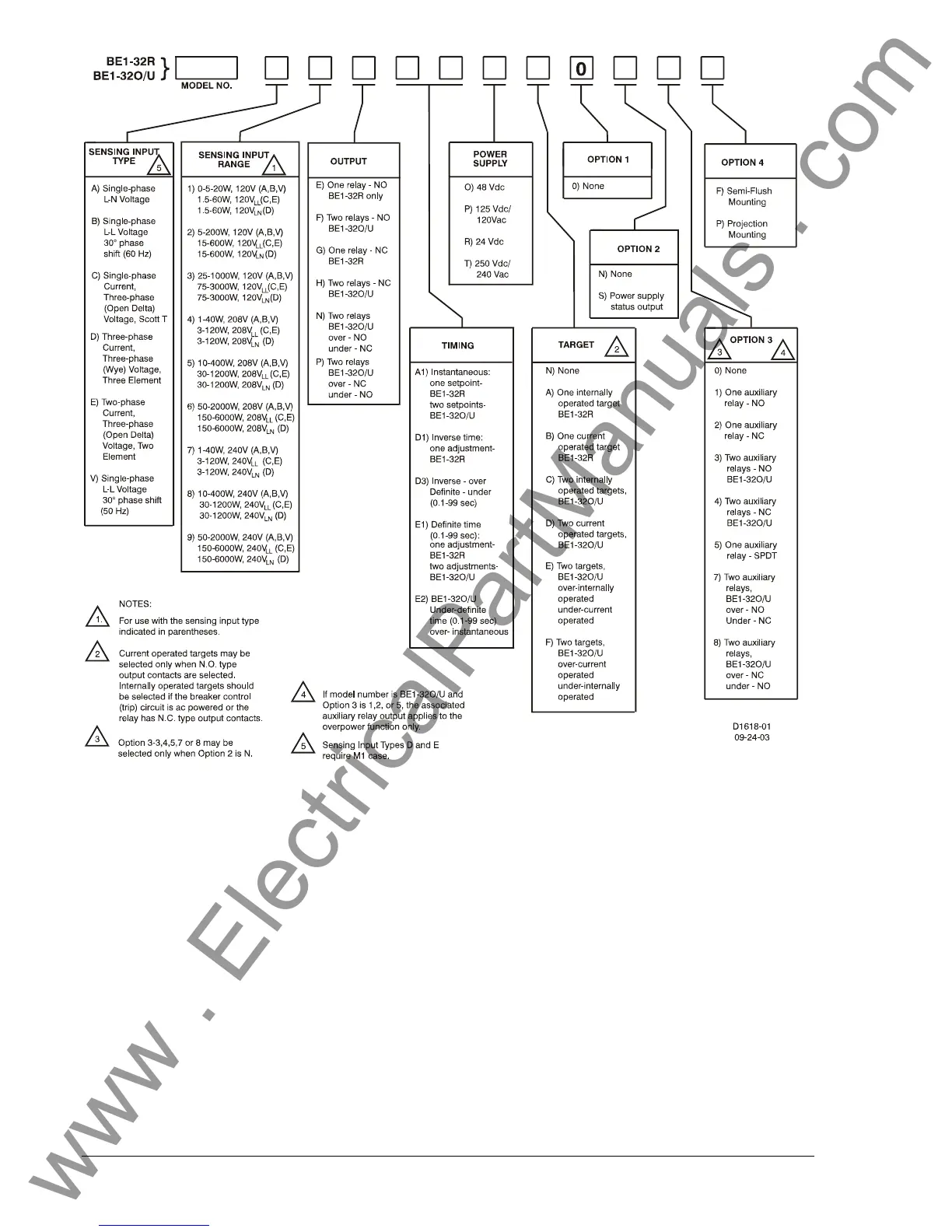

Figure 1-12. Style Number Identification Chart
Style Number Example
If a BE1-32R Directional Overpower Relay is ordered with a style number of A1GA1PA0N1F, the relay
would have the following features.
A ------- Single-phase current sensing and line-to-neutral voltage sensing
1-------- 120 Vac, 0.5 to 20 W sensing input range
G ------- One output relay with normally closed (N.C.) contacts
A1------ Instantaneous timing characteristics with one setpoint
P ------- 125 Vdc/120 Vac power supply
A ------- One internally operated target
0-------- No option 1
N ------- No power supply status output
1-------- One normally-open, auxiliary output relay
F-------- Semi-flush mounting case
