9171100990 Rev R BE1-32R, BE1-32O/U Controls and Indicators 2-1
SECTION 2 • CONTROLS AND INDICATORS
INTRODUCTION
All BE1-32R and BE1-32O/U controls and indicators are located on the front panel. The controls and
indicators are shown in Figure 2-1 and described in Table 2-1. Figure 2-1 illustrates a relay with the
maximum number of controls and indicators. Your relay may not have all of the controls and indicators
shown here.

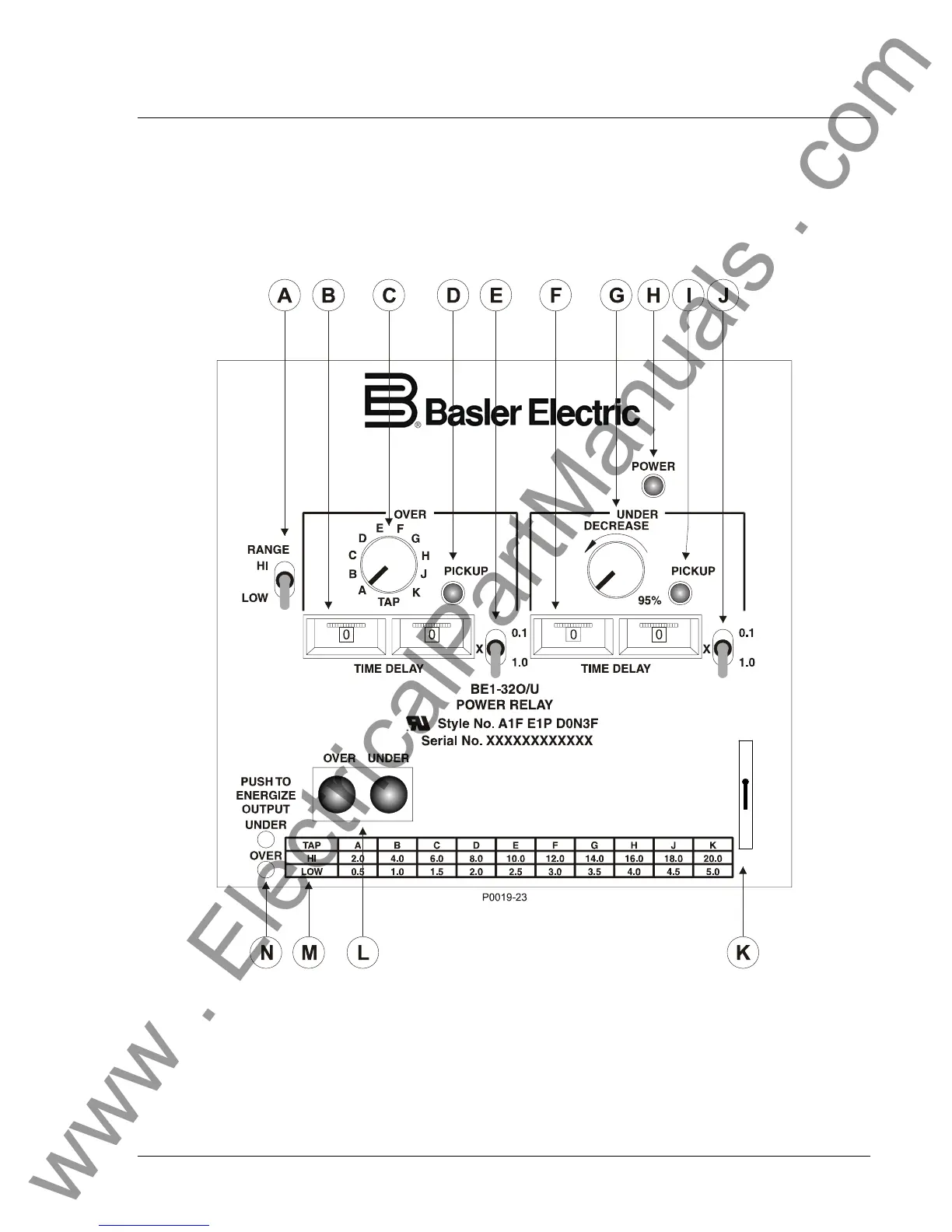

Figure 2-1. Controls and Indicators
