Basler BE1-32 - Figure 1-13. Overpower Instantaneous Response Time; Figure 1-14. Underpower Instantaneous Response Time

9171100990 Rev R BE1-32R, BE1-32O/U General Information 1-11
Inverse Time: Available for the overpower function only. Adjustment of the
Time Dial thumbwheel selects curves from 01 to 99 in
increments of 01. A setting of 00 enables instantaneous timing.
Refer to Figure 1-15 for examples of the overpower inverse time
characteristic curves.

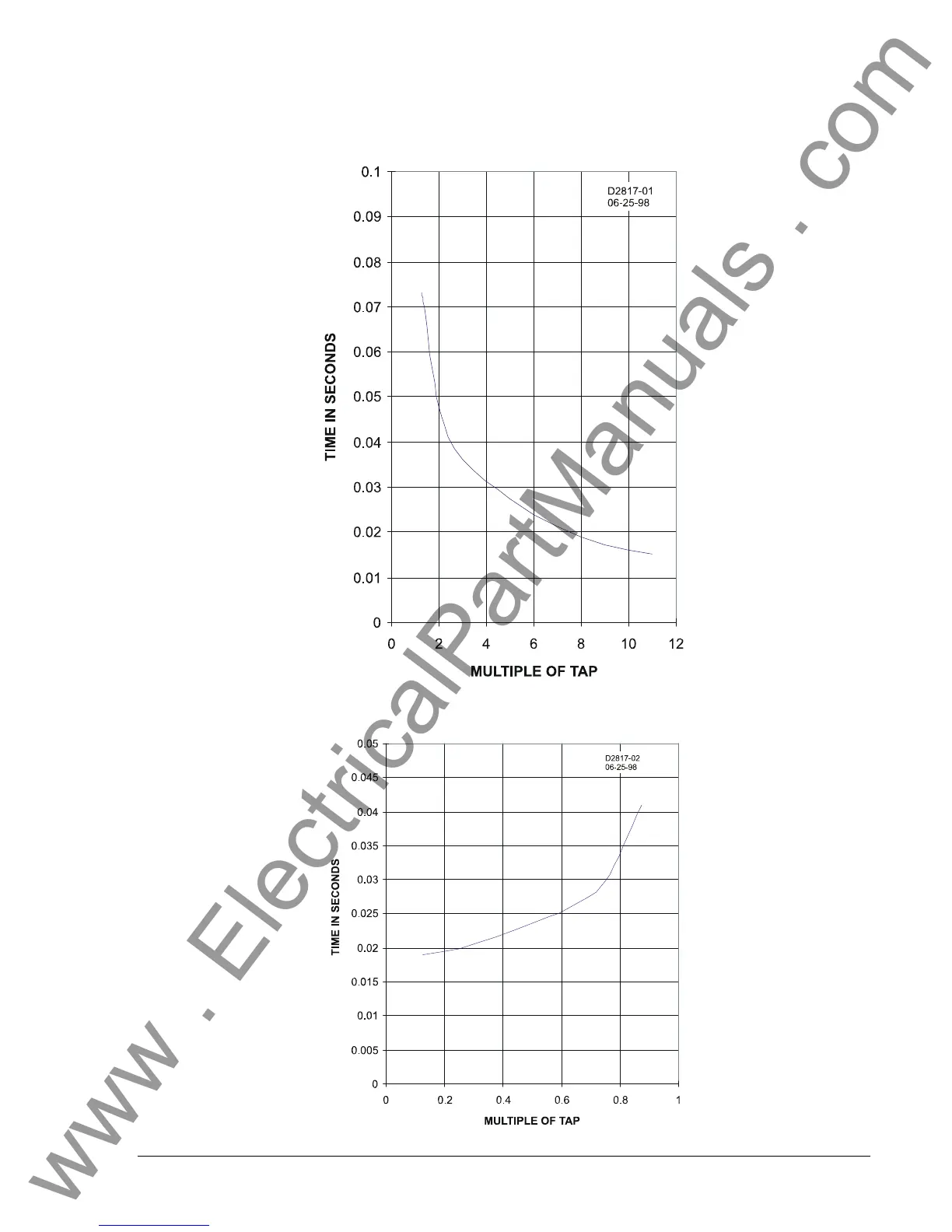

Figure 1-13. Overpower Instantaneous Response Time
Figure 1-14. Underpower Instantaneous Response Time
